Name: Automatic Corrugated Die Cutting & Waste Stripping Machine
Brand: Dayuan
SKU: 00049
Rating: 4.9 (75 reviews)

Overview

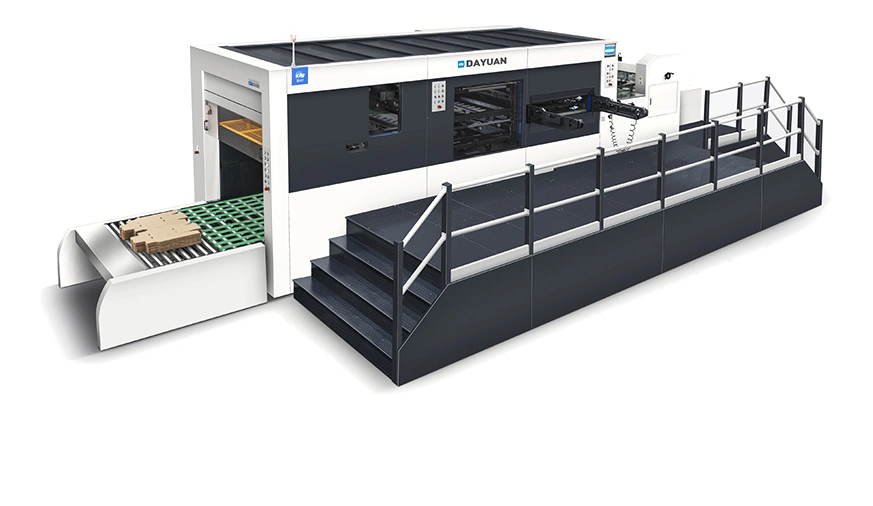

BHT-1900FC/EFC Automatic Corrugated Die Cutting & Waste Stripping Machine is Dayuan's flagship ultra-large-format die cutting solution for high-end corrugated packaging challenges. BHT-1900FC uses lead edge feeder with strong board adaptability; BHT-1900EFC has bottom suction paper feeder for zero board damage. Integrated with precision variable-speed worm gear transmission mechanism and Siemens system, it enables accurate, reliable intelligent control. Its stripping unit features three frames four sides design: the upper and lower frames operate while the middle frame remains stationary so there are fewer connection points, and the plate is not prone to coming apart. It boosts production capacity and optimizes overall operational efficiency for large-format corrugated packaging.

Lead Edge Feeder (FC Series)

High-speed and precise lead edge feeder with high feeding accuracy, strong suction power, anti-slip performance, and stable transportation for various types of corrugated board.
New technology polyester wheels with grid lifter and air cushion ensure smooth feeding and accurate alignment even when dealing with warped board.
Inverter-controlled fine vacuum suction adjustment device.
Electric side-pushing baffles (both the left and right sides).
Independent or synchronous adjustment of left/right baffles.
Slanted front baffle with fine-tuning (forward/backward + upward/downward) .

Down Feeder (EFC Series)

High precision bottom suction feeder with non-stop suction nozzle, uses vacuum adsorption mechanism to send corrugated board into the paper pressing rollers, effectively avoiding sheet scratches during feeding.
Electric side-pushing baffle and pneumatic sheet aligning device (right side).
Electrically controlled paper feed roller.
Paper presser and front gauge; double sheet detector respond accurately.
Front hook adjustment device; paper bending up and down can be adjusted.
Blow-suction dual-purpose vacuum pump of German Becker brand.

Sheet Transmission and Alignment Section

Non-stop feeding step adjustment.
The fine-tuning device for the front baffle's front and rear positions can be finely adjusted according to the gripper margin size.
Left/right positioning push gauges ensure precise side positioning of the cardboard.

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
The variable-speed worm gear transmission mechanism features a short die-cutting stroke and a large moving angle, which is conducive to the high-speed operation of small connection points in multiple impositions.
Gear transmission, with accurate precision.
The pressure regulating device enables precise pressure control via PLC touch screen buttons.
Central positioning device.
SIEMENS(INNOMOTICS) brand main motor.

Stripping Unit (Three-frame & Four-side)

Users can choose whether to use the stripping function by lifting upper stripping frame.
Positive-negative die plates to achieve versatile stripping.
The installation of the middle stripping board adopts the center line quick positioning installation method, and the stripping board can be quickly installed.
The upper and lower frames operate while the middle frame remains stationary so there are fewer connection points, and the plate is not prone to coming apart.
The gripper stripping device can automatically convey gripper waste edges out of the machine.

Delivery Unit (High pile stacking)

Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery.
High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine (Special for high pile stacking delivery).
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.

Batch conveying delivery unit (optional)

The non-stop rolling curtain auxiliary paper delivery device and the automatic batch delivery lifting table device can be used alternately. The automatic batch delivery lifting table device can automatically set the number of stacked sheets, and cooperate with the conveyor belt to convey the paper outside the machine (Special for batch delivery, optional).
The automatic batch delivery lifting table uses conveyor belts for paper delivery. The paper surface is not easily scratched or abraded during the paper stacking process (Special for batch delivery, optional).
The external paper delivery rack and the batch delivery lifting table can also be moved aside to switch to the high pile stacking delivery unit.

Electrical Unit

Germany Siemens PLC control system.
The die-cutting unit and the delivery unit adopt 10.4-inch and 7-inch Germany Siemens touch screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

BHT-1900FC +

BHT-1900EFC +

BHT-1900FC is Dayuan's top-tier Automatic Die Cutting Machine with Stripping (Lead Edge Feeder) developed for the large-format corrugated board market. It effortlessly handles continuous die cutting of large-size corrugated boards, ensuring consistent positioning across the full width while maintaining high-speed stable operation.

Model	BHT-1900FC
Name	Automatic Die Cutting Machine with Stripping (Lead Edge Feeder)
Stock Range	Corrugated board: ≤9mm, F, E, B, C, A and AB corrugated paper
Max. Sheet Size	1900×1400mm
Min. Sheet Size	650×500mm
Inner Chase Size	1920×1430mm
Max. Cutting Size	1880×1380mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.2mm
Max. Die Cutting Force	450T
Max. Working Speed	5000s/h
Max. Delivery Pile Height	1500mm
Air Requirement	0.6-0.7MPa, flow rate ≥ 1m³/min

BHT-1900EFC is Dayuan's top-tier Automatic Die Cutting Machine with Stripping (Down Feeder) for the large-format corrugated board market. It achieves overall flatness and zero damage of oversized boards during high-speed transmission, serving as a reliable guarantee for high-quality large-scale packaging production.

Model	BHT-1900EFC
Name	Automatic Die Cutting Machine with Stripping (Down Feeder)
Stock Range	Corrugated board: ≤9mm, F, E, B, C, A and AB corrugated paper
Max. Sheet Size	1900×1400mm
Min. Sheet Size	650×500mm
Inner Chase Size	1920×1430mm
Max. Cutting Size	1880×1380mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.2mm
Max. Die Cutting Force	450T
Max. Working Speed	5000s/h
Max. Delivery Pile Height	1500mm
Air Requirement	0.6-0.7MPa, flow rate ≥ 1m³/min

Motorized Lift Table

Push Type Auto Preloader

Push Type Auto Preloader (with logistic system)

Multifunctional Paper Breaker

Auto Pallet Changer

Auto Logistic System

Die Preloader

Light Table

Batch Conveying Delivery

Raster

Mirror Machines Dual Diecutter Working Station

Automatic Die Cutting Machine with Stripping

BHT-1650FC/1650EFC

Automatic Flatbed Die Cutting & Waste Stripping Machine (Lead Edge / Bottom Feeder)

Dayuan BHT-1650FC/EFC is flagship large-format die cutting solution, delivering high efficiency and stability for high-end corrugated die cutting.

BHT-1650EC

Automatic Flatbed Die Cutting & Waste Stripping Machine (Top Feeder)

Dayuan BHT-1650EC adapts to die cutting of various corrugated boards and cardboards, ensures production efficiency through high-precision die cutting and stripping, and is an ideal choice for die cutting operations.

MHK-1900FC/1900EFC

Large Format Automatic Die Cutting Machine with Waste Stripping (Lead Edge Feeder/Down Feeder)

Dayuan MHK-1900FC/1900EFC Series maintains high-speed operation while ensuring full-format positioning consistency, achieving precise die cutting and effectively guaranteeing the consistency of finished products.

Automatic Die Cutting Machine with Stripping (Heavy duty,Heating System)

MHC-1900F/1900EF

Extra-Large 1900mm Automatic Die Cutter for Corrugated Board

Dayuan MHC-1900F/1900EF features a robust structure, ensuring stable and efficient operation for various corrugated boards. A quality choice for enterprises to enhance performance, reduce costs and boost efficiency.
