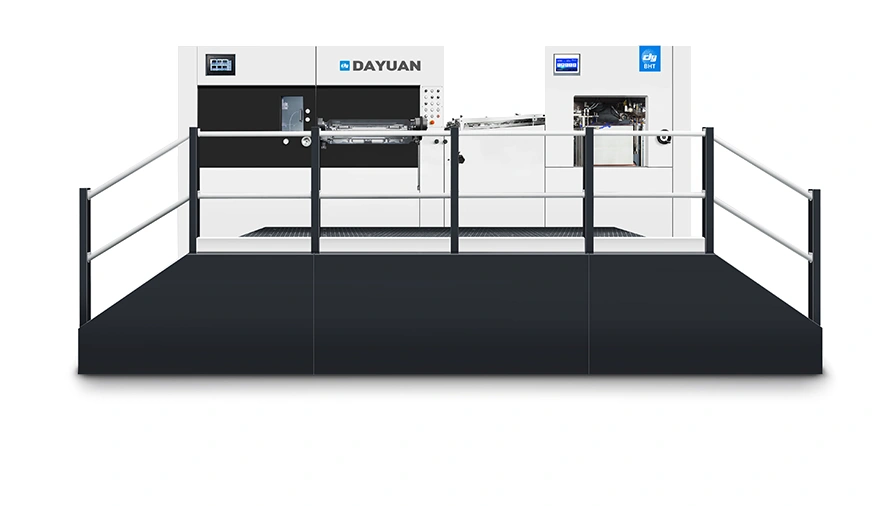

Automatic Die Cutting Machine With Stripping & Blanking

• Fish-scale powerful feeder head with 4 suction and 6 delivery. The suction head can be adjust to various angles according to paper deformation.
• Horizontal paper separation blower.
• Full automatic non-stop alternating operation of main and auxiliary paper stacks without operator intervention. (Available as an option)
• Electrical left/right fine-tuning device for the main feed pile.
• The paper alignment adjustment device can adjust the distance before the paper reaches the gauge without stopping the machine.
• Blow-suction dual-purpose vacuum pump of German Becker brand.

• Slowdown mechanism for sheet feeding at the front gauge.
• Ultrasonic double sheet detection system with effortless calibration, precise operation, and protection against surface scratches.
• Four front gauges can be adjusted individually.
• Paper pressing device feeds warped sheets smoothly to the front gauge.
• Push-pull dual-purpose side gauges on both sides.
• Photoelectric detection on both side and front gauges.
• If the paper is not in place, the system can force the gripper to open and close.

• High-tech carbon fiber gripper bars and positioning structure, fine steel small gripper teeth and supporting gripper plates.
• The variable-speed worm gear transmission mechanism features a short die-cutting stroke and a large moving angle, which is conducive to the high-speed operation of small connection points in multiple impositions.
• Pressure regulating device, which can realize accurate control of pressure through PLC touch screen.
• The 15mm die-cut steel backing plate and a 5mm combined lower backing plate with +/-0.9mm vertical and horizontal fine-tuning device.
• Central positioning device.
• Die-cutting chase automatic push-pull mechanism.
• Die-cutting chase quick locking device.
• SIEMENS (INNOMOTICS) brand main motor.

• The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.
• Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.

• Pneumatic quick lock device.
• Center line quick positioning mechanism.
• The upper and lower frames operate while the middle frame remains stationary so there are fewer connection points, and the plate is not prone to coming apart.
• High efficiency and smooth CAM movement curve drives large moving angle stripping and blanking tools.
• Micro-adjustment device with digital display.
• Gripper bar positioning device.

• Full Sheet Delivery
• Automatic paper inserting and counting device.
• Automatic non-stop paper collecting device.
• Automatic delivery device can meet the European standard 1200*800mm pallet .
• The constant leveling system (NTC): There may be warping and unevenness at the top of the finished product stack, which can be solved by adjusting the height of finished products to increase or decrease the pressure.
• Waste edge conveying device.
• Servo-driven damping brush.

Automatic separator page inserting device.

• Self-developed PLC control system(Invention Patent).
• The die-cutting unit and the delivery unit adopt 10.4-inch and 7-inch Germany Siemens touch screens.
• The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
• The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.
