Name: Cigarette Packing Servo Precision Double Helix High Speed Sheet Cutter Machine With Photoelectric Tracking
Brand: Dayuan
SKU: 00177
Rating: 4.9 (139 reviews)

Cigarette Packing Servo Precision Double Helix High Speed Sheet Cutter Machine With Photoelectric Tracking

Dayuan SMC-1100 is custom-designed for cigarette packaging. Its self-developed photoelectric tracking system, built-in double-rotary spiral cutter, and multiple edge position correction functions ensure high cutting efficiency, meeting high-volume production requirements for cigarette packing & printing packaging.

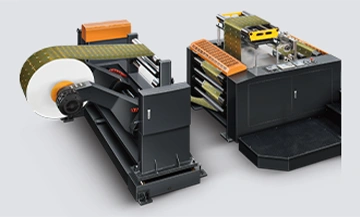

Shaftless Mill Roll Stand

Hydraulic drive:
• Open/close and forward/backward movement of paper roll clamp arms is driven by oil hydraulic cylinder
• Lifting of paper roll clamp arms is driven by oil hydraulic cylinder
Pneumatic breaker, automatic brake
Tension control system: It adjusts the paper traction tension in real time to ensure stability, based on the automatic detection of paper roll diameter and linear speed.
Paper Buffering: The spring-loaded buffer roller adjusts rapidly in response to the tension variation of the paper edge.
Anti-curve device: Patented design of anti-curve roller helps stabilize the paper roll tension, effectively eliminates the curl and makes the paper flatter.
The pressing roll adopts electric control and inching, to make it moving vertically(engage and disengage), ensuring proper positioning of the conveyed paper and reducing paper wrinkling.

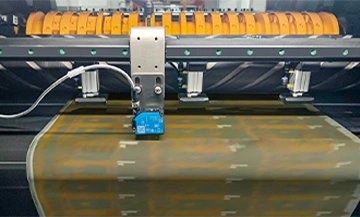

Photoelectric Tracking System

The automatic edge-guiding electric eye detects the positional deviation of the paper edge or printing reference line, and the edge-correcting system corrects the paper in real time.
Automatic cursor tracking slitting: Accurate positioning of the dual-servo drive system to achieve synchronization and adjustment of dual servo motors.
Automatic cursor electric eye device: High-precision decibel electric eye for accurate positioning of paper color marks, feeding back to the TRIO tracking system.

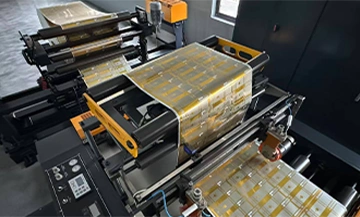

Multi-channel Edge Alignment Function

Self-developed cigarette pack register control system, integrated with a double helix slitting knife and multi-channel edge alignment system, ensures burr-free slitting and precise paper positioning.
Electronic sensors are adopted to control brushless motors for accurate edge alignment detection and correction.
This effectively prevents edge irregularities and dimensional errors caused by paper deviation, remarkably reduces manual intervention and material waste, and improves production efficiency.

Automatic Positioning Slitting Unit

The slitting section adopts automatic slitting knives and trimming, with automatic positioning function, and automatic air suction waste removal devices for waste paper edges on both sides.
The dust suction and removal device ensures that there is no paper fuzz or paper dust on the paper surface after slitting.
Upper slitting knife: Automatic rising and falling, switch type slitting knife, and paper cutting clearance can be adjusted manually.
Lower slitting knife: Knife shaft fixed the upper and lower position, and paper cutting clearance can be adjusted manually.
Y-type waste paper edge collection pipe and fixing frame.

Double-Helix Knife Cutting Unit

The sheet cutting unit adopts double-rotary high-precision cutting knives to ensure the cut surface is straight, and the paper cutting surface is smooth without paper fuzz, enabling direct feeding into the printing machine for production without edge trimming.
Double knives: Made of alloy structural steel, followed by multiple heat treatment and CNC precision processes, resulting in excellent stability.
Drive roll: The roller surface adopts the expansion texture design, and the cylinder controls the pressurized clamping roller.
Cutting knife: Uses German tungsten steel cutting blades with an extra-long service life; the blade is easy to adjust and calibrate.
Safety cover: The machine stops automatically when the safety cover is open, so as to guarantee safety.

Static Elimination Equipment

Plasma rod type, used to eliminate static electricity on paper.
Static elimination rod: Effective discharge range of 1100mm.

Paper Conveying Unit

Horizontal multi-section differential conveying, used to achieve paper separation, counting and stacking effects. (Conveying belt: Siebeck brand)
First conveying section: Quickly separates the cut paper.
Second conveying section: Can be controlled independently or in jointly, adjusting the paper to be delivered in tile-stacked form.
Third conveying section: Adopts a non-indentation buffer belt mechanism to slow down and stack the paper, reduce paper buffering, and prevent marks.
Paper-out conveying section: Precision paper separator, adjustable according to the paper width. Pressurized paper feeding wheels can enhance paper stability and prevent paper deviation.
Waste discharge device: A waste paper discharge function is adopted between the first conveying section and the second conveying section to facilitate the separation and output treatment of waste paper.

Automatic Paper Aligning and Collecting Equipment

Hydraulic lifting and stacking collection paper table, descend automatically when the paper stacks to a certain height.
Paper aligning equipment: Electric front paper aligning mechanism; electric side paper aligning mechanisms (both sides); pneumatic lifting frame type side paper aligning mechanisms (both sides); pneumatic lifting rear baffle mechanism; hand-cranked movable side paper aligning mechanisms (both sides).
Automatic counting and label inserting: Input the number of sheets to insert labels into on the touch-sensitive computer interface, and labels can be inserted according to the set value; Equipped with Sheet replenish function of defective products.

Human-machine Interface

Siemens electrical control system.
Parameters such as cutting length, quantity, and total number of finished products can be directly input; the actual cutting length and cutting quantity can be displayed in real-time.

Non-stop roll-up curtain type paper collecting equipment

Adopts automatic roll-up curtain type paper collecting mechanism for non-stop paper collecting when a paper stack pallet is full. It can effectively reduces paper waste caused by machine shutdown and improves work efficiency.

Model	SMC-1100
Name	Cigarette Packing Servo Precision Double Helix High Speed Sheet Cutter Machine With Photoelectric Tracking
Paper Cutting Method	Double rotary sheeter
Thickness of Cutting Paper	80-1000gsm
Cutting Length Range	450-1450mm
Cutting Precision	Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1%
Max. Cutting Line Speed	330m/min
Max. Cutting Speed	540cuts/min
Max. Photoelectric Tracking Cutting Meter Speed	150m/min
Max. Photoelectric Tracking Cutting Speed	220cuts/min
Max. Scroll Diameter	1800mm
Max. Paper Cutting Width	1100(45")mm
Max. Paper Pile Height	1400mm
Air Compressor Requirement	0.8Mpa
