Name: Automatic Corrugated Board Waste Removing Die-Cutting Machine
Brand: Dayuan
SKU: 00080
Rating: 4.9 (90 reviews)

Overview

The Dayuan's MHC-1500FC/1500EFC are classic Automatic Corrugated Board Waste Removing Die-Cutting Machine for corrugated board. The 1500FC uses a lead edge feeder for stable feeding of multi‑spec corrugated boards, adapting to diverse scenarios for continuous production. The 1500EFC features a bottom suction non‑stop feeder with vacuum adsorption for gentle, scratch‑free transport, ideal for precision processing. Both include PLC automatic pressure control, three frames stripping, and a non‑stop roll‑up curtain type paper delivery device, completing die cutting and stripping in single pass to optimize post‑press processes and provide reliable, hassle‑free production support.

Lead Edge Feeder (FC Series)

High-speed and precise lead edge feeder with high feeding accuracy, strong suction power, anti-slip performance, and stable transportation for various types of corrugated board.
New technology polyester wheels with grid lifter and air cushion ensure smooth feeding and accurate alignment even when dealing with warped board.
Inverter-controlled fine vacuum suction adjustment device.
Electric side-pushing baffles (both the left and right sides).
Independent or synchronous adjustment of left/right baffles.
Slanted front baffle with fine-tuning (forward/backward + upward/downward).

Down Feeder (EFC Series)

High precision bottom suction feeder with non-stop suction nozzle, uses vacuum adsorption mechanism to send corrugated board into the paper pressing rollers, effectively avoiding sheet scratches during feeding.
Electric side-pushing baffle and pneumatic sheet aligning device (right side).
Electrically controlled paper feed roller.
Paper presser and front gauge; double sheet detector respond accurately.
Front hook adjustment device; paper bending up and down can be adjusted.
Blow-suction dual-purpose vacuum pump of German Becker brand.

Sheet Transmission and Alignment Section

Non-stop feeding step adjustment.
The fine-tuning device for the front baffle's front and rear positions can be finely adjusted according to the gripper margin size.
Left/right positioning push gauges ensure precise side positioning of the cardboard.

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
Adjustable gripper bar structure.
The pressure regulating device enables precise pressure control via PLC touch screen buttons.
Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.
Central positioning device.

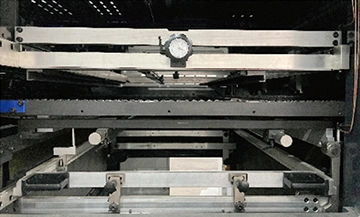

Stripping Unit (Three frames)

Upper/Lower waste transmission mechanism.
Users can choose whether to use the stripping function by lifting upper stripping frame.
Intermediate negative stripping transmission mechanism.
The installation of the middle stripping board adopts the center line quick positioning installation method, enabling the operators to install the stripping board quickly and improving the plate changing efficiency.

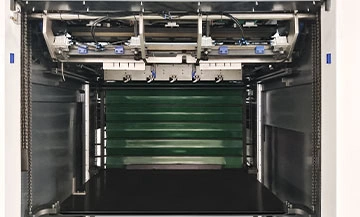

Delivery Unit (High pile stacking)

Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery.
High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine (Special for high pile stacking delivery).
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.

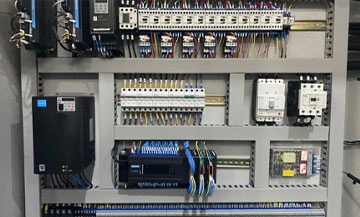

Electrical Unit

Self-developed PLC control system(Invention Patent).
The die-cutting unit adopts 10.4-inch touch display screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

MHC-1500FC +

MHC-1500EFC +

Dayuan's MHC-1500FC is a classic Automatic Die Cutting Machine with Stripping (Lead Edge Feeder). It features a high-speed precision lead edge feeder for various corrugated boards and a three frames stripping system to streamline post-press processes. Efficient, stable and cost-effective, it is an excellent choice balancing capacity and cost.

Model	MHC-1500FC
Name	Automatic Die Cutting Machine with Stripping(Lead Edge Feeder)
Stock Range	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Max. Sheet Size	1500×1100mm
Min. Sheet Size	470×450mm
Inner Chase Size	1510×1120mm
Max. Cutting Size	1480×1080mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.15mm
Max. Die Cutting Force	400T
Max. Working Speed	5500s/h
Max. Delivery Pile Height	1400mm
Air Requirement	0.6-0.7MPa, flow rate≥0.37m³/min

Dayuan's MHC-1500EFC is a classic Automatic Die Cutting Machine with Stripping (Down Feeder). It features a bottom suction paper feeder with vacuum adsorption, protecting printed surfaces from damage. Integrated three frames stripping streamlines post-press processes, boosts overall production efficiency, and makes it a reliable choice for enterprises.

Model	MHC-1500EFC
Name	Automatic Die Cutting Machine with Stripping(Down Feeder）
Stock Range	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Max. Sheet Size	1500×1100mm
Min. Sheet Size	470×450mm
Inner Chase Size	1510×1120mm
Max. Cutting Size	1480×1080mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.15mm
Max. Die Cutting Force	400T
Max. Working Speed	5500s/h
Max. Delivery Pile Height	1400mm
Air Requirement	0.6-0.7MPa, flow rate≥0.37m³/min
