Name: Classic Automatic Flatbed Die Cutter
Brand: Dayuan
SKU: 00102
Rating: 4.9 (101 reviews)

Overview

MHC-1060/1060A are classic models of Dayuan's Classic Automatic Flatbed Die Cutter , boasting stable and reliable operation performance as well as high cost performance. The equipment is equipped with a high-precision intermittent indexer and timing belt drive system for stable and controllable precision, and a non-stop roll-up curtain type paper delivery device that greatly improves operational efficiency. MHC-1060A is a powerful upgrade based on MHC-1060, with its working pressure increased to 600T. It retains high cost performance while featuring high-pressure operation capacity and stable operation, effectively helping enterprises efficiently complete all types of production orders.

Paper Feeding Unit

Fish-scale powerful feeder head with 4 suction and 4 delivery. The suction head can be adjust to various angles according to paper deformation.
Horizontal paper separation blower.
The main and auxiliary stacking tables alternate without stopping, ensuring non-stop feeder operation.
Electrical left/right fine-tuning device for the main feed pile.
The paper alignment adjustment device can adjust the distance before the paper reaches the gauge without stopping the machine.
Blow-suction dual-purpose vacuum pump of German Becker brand.

Paper Conveying Unit

Pneumatic lifting device for paper feeding frame.
Single-point clutch: The conveying part and the main machine part can be separated and synchronously combined at any time, which simplifies and facilitates the operation sequence.
PLC and electronic cam control the timing of the whole machine.
Push-pull dual-purpose side gauges on both sides.
Photoelectric detection on both side and front gauges.
Slowdown mechanism for sheet feeding at the front gauge.
Electromechanical double sheet detector.

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
Adjustable gripper bar structure.
The pressure regulating device enables precise pressure control via PLC touchscreen buttons.
Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.
Central positioning device.

Main Machine(refrigeration) cooling and lubrication mechanism

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.
Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.

Delivery Unit

Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery.
Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper.
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.
The two-way auxiliary air blowing.

Electrical Unit

Self-developed PLC control system(Invention Patent).
The die-cutting unit adopts 10.4-inch touch display screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

MHC-1060 +

MHC-1060A +

Dayuan's MHC-1060 is a classic model of Automatic Die Cutting Machine, featuring stable adaptability, practical and efficient operation as well as high cost performance. It is a pragmatic choice for capacity-matched and cost-controllable production.

Model	MHC-1060
Max. Die Cutting Force	300T

Based on the MHC-1060, the MHC-1060A features a maximum working pressure of up to 600T. It not only boasts the capability of high-pressure operation, but also retains the core advantage of high cost performance, serving as a pragmatic choice for balancing efficient production and cost control in die cutting operations.

Model	MHC-1060A
Max. Die Cutting Force	600T

Die Preloader

Light Table

Raster

Mirror Machines Dual Diecutter Working Station

Automatic Die Cutting Machine with Stripping (Heavy duty,Heating System)

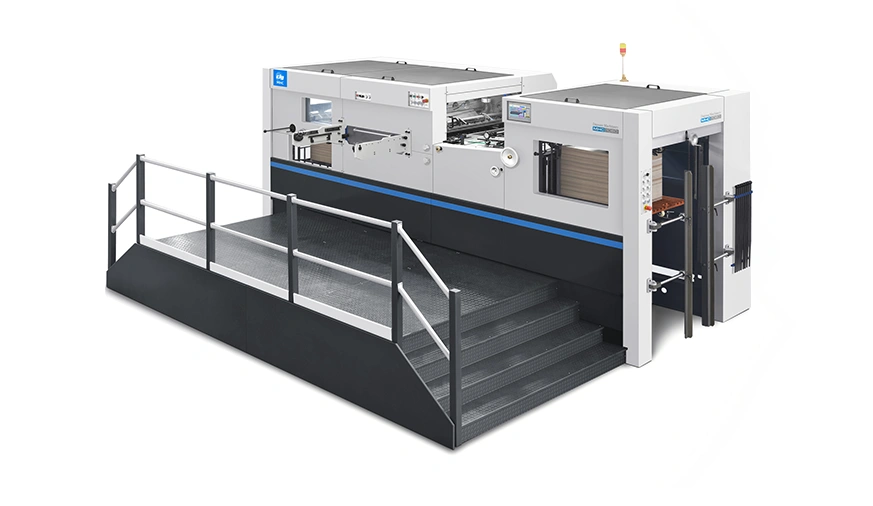

MHC-1060CE/1060ACE

Automatic Flatbed Die Cutting Machine with Waste Stripping

Dayuan MHC-1060CE/1060ACE finishes die cutting and stripping in one paper pass. Equipped with an electromechanical double sheet detector and centralized oil supply system, it ensures high-efficiency production and controls costs, a reliable choice for practicality and cost performance.

MHC-1060AR

Heavy Duty Flatbed Die Cutting Machine with Heating System

Dayuan MHC-1060AR features efficient operation and easy maintenance, helping enterprises tackle production challenges and serving as an ideal choice for cost reduction and efficiency improvement.

MHC-1060ACER

Classic Heavy Duty Die Cutting with Stripping & Heating

Dayuan MHC-1060ACER integrates hot pressing, die cutting and stripping. With electromechanical double sheet detector and three frames stripping for efficient linkage, it stably completes post-printing processes and boosts efficient order delivery.

MHK-1050/1050A

Automatic High Speed Flatbed Die Cutter Machine

Dayuan MHK-1050/1050A Series boasting a high level of automation, groundbreaking speed and reliable performance, is the optimal choice for enterprises pursuing maximized production capacity and intelligent manufacturing, and brings you an ideal return on investment in production operation.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com

Products

> Hot Foil stamping & Die Cutting Machine > Flatbed Die Cutting Machine > Sheet Cutter Machine > Stripping & Blanking Machine

Quick Links

Sustainable Development Production and Quality Development and Technology Blog

Model	MHC-1060/MHC-1060A
Stock Range	Cardboard: 80-2000g/m², 0.1-2mm Corrugated board: ≤4mm
Max. Sheet Size	1080×780mm
Min. Sheet Size	400×350mm
Inner Chase Size	1100×790mm
Max. Cutting Size	1060×760mm
Min. Gripper Margin	9-17mm
Die Cutting Accuracy	≤±0.1mm
Max. Working Speed	7500s/h
Max. Feeder Pile Height	1600mm
Max. Delivery Pile Height	1400mm
Air Requirement	0.6-0.7MPa, flow rate≥0.37m³/min
