Name: Semi‑automatic 1650mm Large Format Die Cutting Machine with Waste Stripping
Brand: Dayuan
SKU: 00078
Rating: 4.9 (89 reviews)

Overview

MHC-1650BC is a Semi‑automatic 1650mm Large Format Die Cutting Machine with Waste Stripping from Dayuan's classic series. Built on a robust nodular cast iron structural foundation, it integrates a PLC automatic pressure control system, timing belt drive with intermittent mechanism and adjustable gripper bar design to ensure consistently smooth and efficient operation. Featuring a three frames stripping system to optimize post-press workflows and manual paper feeding for flexible order production, it enables enterprises to enhance die cutting efficiency and quality while maintaining cost control, delivering practical and reliable equipment support for daily manufacturing operations.

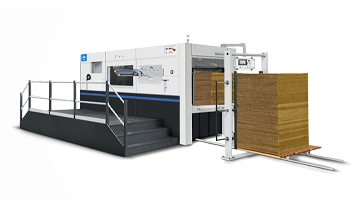

Paper Feeding Unit

Suitable for multiple uses of cardboard, corrugated paper, and greyboard paper.
Equipped with a monitor to observe the operation of the delivery section.
A 10.4-inch color screen shows the working status of the machine.
Pre-paper stacking mechanism for high work efficiency.

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
Adjustable gripper bar structure.
The pressure regulating device enables precise pressure control via PLC touch screen buttons.
Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.
Central positioning device.

Stripping Unit (Three frames)

Upper/Lower waste transmission mechanism.
Users can choose whether to use the stripping function by lifting upper stripping frame.
Intermediate negative stripping transmission mechanism.
The installation of the middle stripping board adopts the center line quick positioning installation method, enabling the operators to install the stripping board quickly and improving the plate changing efficiency.

Delivery Unit

High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine (Special for high pile stacking delivery).
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.
Spring chain adjustment device can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain.

Electrical Unit

Self-developed PLC control system(Invention Patent).
The die-cutting unit adopts 10.4-inch touch display screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

Dedicated Logistics Device for Piled Collecting

Die Preloader

Light Table

Raster

Mirror Machines Dual Diecutter Working Station

MHC-1650E

1650mm Automatic Large Format Die Cutting Machine

Dayuan MHC-1650E has automatic feeder and suits various paper processing with higher adaptability, featuring stable performance and wide compatibility as well as high cost-effectiveness, a practical choice for pursuing efficient production and controllable costs.

Automatic Die Cutting Machine with Stripping

MHC-1650EC

1650mm Large-Format Automatic Die Cutter with Waste Stripping

Dayuan MHC-1650EC has automatic feeder snd suits various paper processing, and it has a three frames stripping system to further optimize post-press processes, helping enterprises boost production efficiency, a reliable choice for cost control and capacity improvement.

MHC-1650F/1650EF

1650mm Large Format Automatic Die Cutting Machine for Corrugated Board

Dayuan MHC-1650F/1650EF ensures stable feeding of various corrugated boards. Solidly built and cost-effective, it is an efficient solution for large‑scale production to reduce costs and boost efficiency.

MHC-1650FC/1650EFC

1650mm Large-Format Die Cutting & Waste Stripping Machine for Corrugated Board

Dayuan MHC-1650FC/1650EFC ensures stable conveying of various corrugated boards. Stable in operation, it optimizes post-press processes via a three frames stripping system, boosting overall production efficiency and making it a reliable enterprise choice.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com

Products

> Hot Foil stamping & Die Cutting Machine > Flatbed Die Cutting Machine > Sheet Cutter Machine > Stripping & Blanking Machine

Quick Links

Sustainable Development Production and Quality Development and Technology Blog

Model	MHC-1650BC
Stock Range	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Max. Sheet Size	1650×1200mm
Min. Sheet Size	550×500mm
Inner Chase Size	1682×1220mm
Max. Cutting Size	1620×1180mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.2mm
Max. Die Cutting Force	400T
Max. Working Speed	4500s/h
Max. Feeder Pile Height	1600mm
Max. Delivery Pile Height	1400mm
Air Requirement	0.6-0.7MPa, flow rate≥0.75m³/min
