Name: Heavy‑Duty Automatic Hot Foil Stamping and Die Cutter Machine
Brand: Dayuan
SKU: 00144
Rating: 4.9 (122 reviews)

Overview

MHK-1180AT is Dayuan's Heavy‑Duty Automatic Hot Foil Stamping and Die Cutter Machine of the high-end intelligent series. Systematic optimization boosts production remarkably, designed for high-end packaging production focusing on efficiency and scale, ensuring continuous high output and stable returns with excellent operational reliability. Equipped with servo controlled gripper bar positioning device and torque limiting overload protector, it easily handles complex processes while guaranteeing high-speed operation. Fitted with micro-adjustable die cutting plate and Siemens human-machine interface, it enables highly convenient and precise operational control for the whole production process.

Paper Feeding Unit

Fish-scale powerful feeder head with 4 suction and 6 delivery. The suction head can be adjust to various angles according to paper deformation.
Horizontal paper separation blower.
The main and auxiliary stacking tables alternate without stopping, ensuring non-stop feeder operation.
Electrical left/right fine-tuning device for the main feed pile.
The paper alignment adjustment device can adjust the distance before the paper reaches the gauge without stopping the machine.
Blow-suction dual-purpose vacuum pump of German Becker brand.

Paper Conveying Unit

Pneumatic lifting device for paper feeding frame.
Single-point clutch: The conveying part and the main machine part can be separated and synchronously combined at any time, which simplifies and facilitates the operation sequence.
PLC and electronic cam control the timing of the whole machine.
Push-pull dual-purpose side gauges on both sides.
Photoelectric detection on both side and front gauges.
Slowdown mechanism for sheet feeding at the front gauge.
Electromechanical double sheet detector.

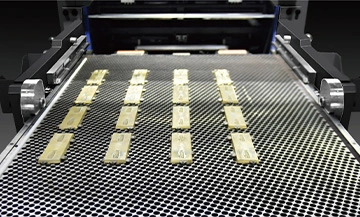

Hot Foil Stamping Unit

Independent R&D of AC801 hot stamping control system, with high operation accuracy and fast speed, which can realize high-speed intelligent skip operation with large-format electrochemical aluminum foil (Invention Patent).
Three vertical and two horizontal independent foil feeding system. (Optional, up to 6 vertical feeding)
Three-vertical large-format dual-axis foil rewinding device (Invention Patent).
Foil broken detection system.
The computerized foil control/monitor system.
14″ touchscreen display at the hot stamping station.
Holographic anti-counterfeiting foil rack device (Optional).
20 temperature zone independent control system.

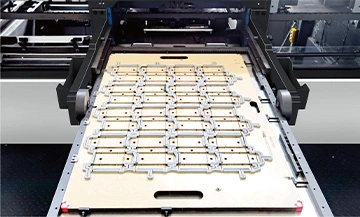

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
Servo controlled gripper bar positioning device: Each gripper bar can be adjusted by PLC touch screen button to ensure the accuracy of gripper bar, with permanent accuracy of ±0.075mm (Invention Patent).
The pressure regulating device enables precise pressure control via PLC touch screen buttons.
Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.
Central positioning device.
SIEMENS(INNOMOTICS) brand main motor.

Main Machine(refrigeration) cooling and lubrication mechanism

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.
Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.

Delivery Unit

Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery.
Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper.
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.
The delivery section can be controlled through touch screen.
The two-way auxiliary air blowing.

Electrical Unit

All the machines adopts Inovance PLC control system.
The die-cutting unit adopts 10.4-inch Germany Siemens touch screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

Automated Pallet Changing in Logistics

Die Preloader

Light Table

Raster

Mirror Machines Dual Diecutter Working Station

Automatic Die Cutting Machine (Heavy duty)

MHK-1180CE/1180ACE

Automatic Four-Side Waste Stripping Die Cutting Machine

Dayuan MHK-1180CE/1180ACE Series is a recommended all-in-one solution integrating high-speed die cutting and stripping, finishing both processes in a single paper pass to greatly streamline post-production procedures.

Automatic Die Cutting Machine with Four Sides Stripping & Heating System (Heavy duty)

MHK-1180ACER

Automatic Die Cutting, Waste Stripping & Heat Embossing Machine

Dayuan MHK-1180ACER is ideal for complex deep embossing and die cutting with stripping, streamlining stringent post-printing processes and boosting the production and delivery capacity of die cutting orders efficiently.

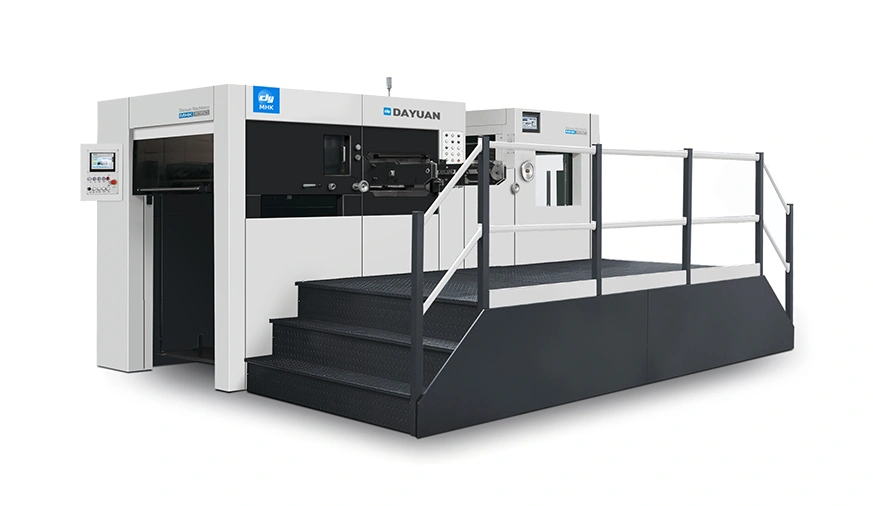

MHK-1180/1180A

Automatic Flat-bed Die Cutting Machine

Dayuan MHK-1180/1180A series boasting a high level of automation, groundbreaking speed and reliable performance, is the optimal choice for enterprises pursuing maximized production capacity and intelligent manufacturing, and brings you an ideal return on investment in production operation.

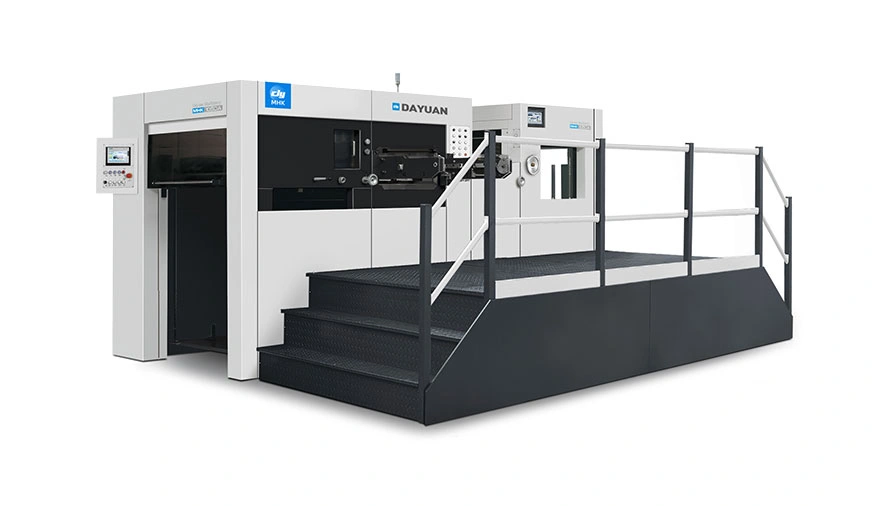

MHK-1180AR

Automatic Die Cutting Machine with Heating System (Heavy duty)

Dayuan MHK-1180AR maintains ultra-high stability during high-speed operation, delivers delicate and uniform deep embossing effects, setting a reliable benchmark for efficiency and quality in large-scale, high-end deep embossing production.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com

Products

> Hot Foil stamping & Die Cutting Machine > Flatbed Die Cutting Machine > Sheet Cutter Machine > Stripping & Blanking Machine

Quick Links

Sustainable Development Production and Quality Development and Technology Blog

Model	MHK-1180AT
Stock Range	Cardboard: 100-2000g/m², 0.1-2mm Corrugated board: ≤4mm
Max. Sheet Size	1180×1050mm
Min. Sheet Size	400×360mm
Inner Chase Size	1230×1029mm
Max. Cutting Size	1150×1000mm
Max. Stamping Size	1150×1000mm
Max. Embossing Size	1150×1000mm
Min. Gripper Margin	9-17mm
Die Cutting Accuracy	≤±0.1mm
Stamping accuracy	≤±0.15mm
Embossing Accuracy	≤±0.1mm
Max. Die Cutting Force	600T
Max. Working Speed	7000s/h
Max. Feeder Pile Height	1600mm
Max. Delivery Pile Height	1400mm
Max. Gold Foil Diameter	φ250mm Longitudinal，φ200mm Transeversal
Electric-heated System	20 Heating zones, 40-180℃ Adjustable
Foil Width	20-1150mm
Air Requirement	0.6-0.7MPa, flow rate≥0.37m³/min
