Name: Automatic Die Cutting Machine with Waste Stripping for Cardboard and Corrugated Board
Brand: Dayuan
SKU: 00110
Rating: 4.9 (105 reviews)

Overview

Dayuan's MHK-1350EC Automatic Die Cutting Machine with Waste Stripping for Cardboard and Corrugated Board is a high-end die cutting system for large-format production, tailored for cardboards and corrugated board processing to ensure premium output across materials. With Siemens touch screen, its timing belt and pulley drive intermittent mechanism enable precise fast control for efficient die cutting and stripping. Its three frames and four sides stripping unit, plus torque limiting overload protector and high-efficiency main machine temperature control and lubrication system, ensures long-term stable operation. Fast job changeover lets it handle mass, fast-paced large corrugated packaging production, a reliable smart partner for higher efficiency and product consistency.

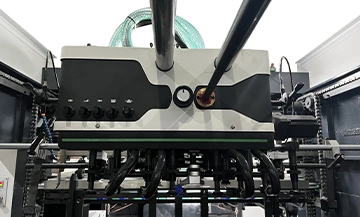

Paper Feeding Unit

Fish-scale powerful feeder head with 4 suction and 6 delivery.The suction head can be adjust to various angles according to paper deformation.
Triple feeder head anti-collision device.
Horizontal paper separation blower.
Electrical left/right fine-tuning device for the main feed pile.
Pre-stacking device with rails for accurate & convenient paper loading.
The paper alignment adjustment device can adjust the distance before the paper reaches the gauge without stopping the machine.

Germany vacuum pump

Blow-suction dual-purpose vacuum pump of German Becker brand.

Paper Conveying Unit

Three paper feeding modes:
Single-sheet paper feeding (4-8.5MM corrugated cardboard)
Double-sheet overlapping paper feeding (2-4MM corrugated cardboard)
Multiple-sheet overlapping paper feeding (paper thickness≤2MM)
Pneumatic lifting device for paper feeding frame.
PLC and electronic cam control the timing of the whole machine.
Push-pull dual-purpose side gauges on both sides.
Photoelectric detection on both side and front gauges.
Electromechanical double sheet detector.

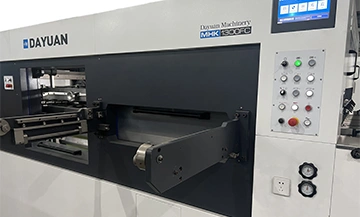

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
Adjustable gripper bar structure.
The pressure regulating device enables precise pressure control via PLC touch screen buttons.
Die-cutting base plate and die mould rotary device.
Central positioning device.

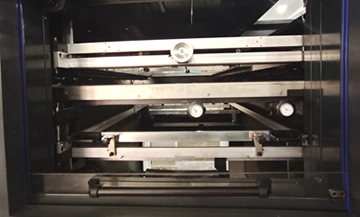

Stripping Unit (Three frames and four sides)

Users can choose whether to use the stripping function by lifting upper stripping frame.
Intermediate negative stripping transmission mechanism.
The installation of the middle stripping board adopts the center line quick positioning installation method, enabling the operators to install the stripping board quickly and improving the plate changing efficiency.
The gripper stripping device can automatically convey gripper waste edges out of the machine.

Delivery Unit (High pile stacking)

Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery.
High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine (Special for high pile stacking delivery).
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.

Batch conveying delivery unit (optional)

The non-stop rolling curtain auxiliary paper delivery device and the automatic batch delivery lifting table device can be used alternately. The automatic batch delivery lifting table device can automatically set the number of stacked sheets, and cooperate with the conveyor belt to convey the paper outside the machine (Special for batch delivery, optional).
The automatic batch delivery lifting table uses conveyor belts for paper delivery. The paper surface is not easily scratched or abraded during the paper stacking process (Special for batch delivery, optional).
The external paper delivery rack and the batch delivery lifting table can also be moved aside to switch to the high pile stacking delivery unit.

Electrical Unit

Self-developed PLC control system.
The die-cutting unit adopts 10.4-inch Germany Siemens touch screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

Dedicated Logistics Device for Piled Collecting

Batch Conveying Delivery

Multifunctional Paper Breaker

Auto Logistic System

Auto Pallet Changer

Die Preloader

Light Table

Raster

Mirror Machines Dual Diecutter Working Station

Automatic Die Cutting Machine with Stripping

MHK-1350FC/1350EFC

Automatic Corrugated Board Die Cutting & Waste Stripping Machine (Lead Edge/Bottom Feeder)

Dayuan MHK-1350FC/1350EFC Series is an intelligent solution for large-format high-end corrugated board processing, with fast job changeover for mass production of diverse specs.

Automatic Die Cutting Machine (Heavy duty)

MHK-1350A

Automatic Platen Die Cutting Machine (Heavy duty)

Dayuan MHK-1350A integrates high-pressure die cutting, intelligent precision correction and ultra-stable operation into one unit, serving as an ideal all-around solution for achieving intelligent and highly efficient packaging production operations.

Automatic Die Cutting Machine with Four Sides Stripping (Heavy duty)

MHK-1350ACE

Automatic Four Sides Waste Stripping Die Cutting Machine (Heavy duty)

Dayuan MHK-1350ACE completes die cutting and stripping in a single pass while maintaining high speed and stable pressure, effectively controls overall costs, and is a cutting-edge solution for efficient production and consistent quality.

Automatic Die Cutting Machine with Heating System (Heavy duty)

MHK-1350AR

Automatic Platen Die Cutting Machine with Heating System (Heavy duty)

Dayuan MHK-1350AR maintains ultra-high stability during high-speed operation, delivers delicate and uniform deep embossing effects, setting a reliable benchmark for efficiency and quality in large-scale, high-end deep embossing production.

Automatic Die Cutting Machine with Four Sides Stripping & Heating System (Heavy duty)

MHK-1350ACER

Heavy-Duty Automatic Platen Die Cutter with Four-Side Waste Stripping & Heating System

Dayuan MHK-1350ACER is ideal for complex deep embossing and die cutting with stripping, streamlining stringent post-printing processes and boosting the production and delivery capacity of die cutting orders efficiently.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com

Products

> Hot Foil stamping & Die Cutting Machine > Flatbed Die Cutting Machine > Sheet Cutter Machine > Stripping & Blanking Machine

Quick Links

Sustainable Development Production and Quality Development and Technology Blog

Model	MHK-1350EC
Stock Range	Cardboard: ≥200g/m² Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Max. Sheet Size	1350×1100mm
Min. Sheet Size	470×450mm
Inner Chase Size	1390×1120mm
Max. Cutting Size	1330×1080mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.15mm
Max. Die Cutting Force	400T
Max. Working Speed	6000s/h
Max. Feeder Pile Height	1800mm
Max. Delivery Pile Height	1600mm
Air Requirement	0.6-0.7MPa, flow rate≥0.75m³/min
