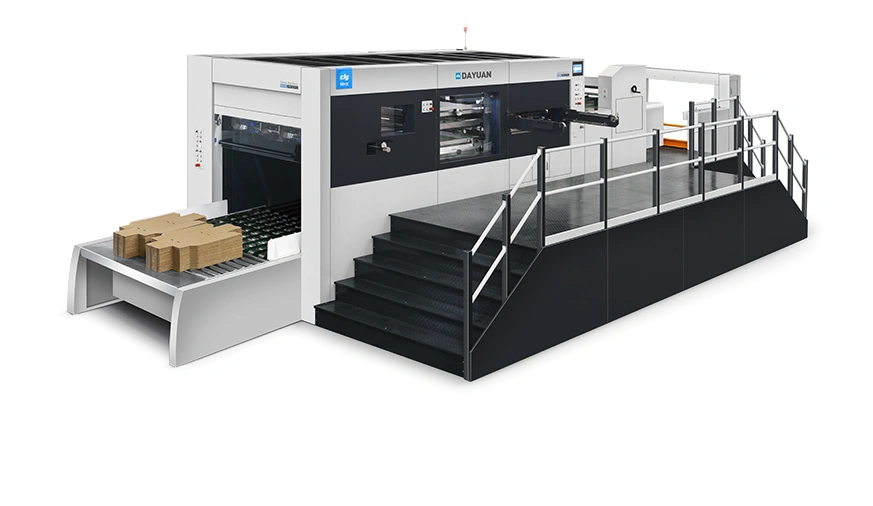

Name: Automatic Flatbed Die Cutter with Integrated Waste Stripping
Brand: Dayuan
SKU: 00131
Rating: 4.9 (116 reviews)

Overview

Dayuan's MHK-1650FC/EFC Automatic Flatbed Die Cutter with Integrated Waste Stripping is an intelligent large-format die cutting solution, meeting the efficiency and reliability demands of high-end corrugated board cutting. FC series' lead edge feeder excel in adapting to various board qualities; EFC series' bottom suction paper feeder ensure zero paper damage. Equipped with timing belt/pulley drive intermittent mechanism and Siemens touch screen, it suits diverse production orders. Its high-efficiency three frames and four sides stripping unit, paired with torque limiting overload protector and main machine cooling and lubrication mechanism, enables fast job change and continuous high output, boosting line utilization and ROI, a strategic equipment for the high-end corrugated market.

Lead Edge Feeder (FC Series)

High-speed and precise lead edge feeder with high feeding accuracy, strong suction power, anti-slip performance, and stable transportation for various types of corrugated board.
New technology polyester wheels with grid lifter and air cushion ensure smooth feeding and accurate alignment even when dealing with warped board.
Inverter-controlled fine vacuum suction adjustment device.
Electric side-pushing baffles (both the left and right sides).
Independent or synchronous adjustment of left/right baffles.
Slanted front baffle with fine-tuning (forward/backward + upward/downward).

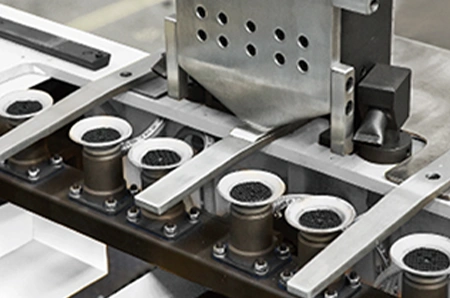

Down Feeder (EFC Series)

High precision bottom suction feeder with non-stop suction nozzle, uses vacuum adsorption mechanism to send corrugated board into the paper pressing rollers, effectively avoiding sheet scratches during feeding.
Electric side-pushing baffle and pneumatic sheet aligning device (right side).
Electrically controlled paper feed roller.
Paper presser and front gauge; double sheet detector respond accurately.
Front hook adjustment device; paper bending up and down can be adjusted.
Blow-suction dual-purpose vacuum pump of German Becker brand.

Sheet Transmission and Alignment Section

Non-stop feeding step adjustment.
The fine-tuning device for the front baffle's front and rear positions can be finely adjusted according to the gripper margin size.
Left/right positioning push gauges ensure precise side positioning of the cardboard.

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
Adjustable gripper bar structure.
The pressure regulating device enables precise pressure control via PLC touch screen buttons.
Die-cutting base plate and die mould rotary device.
Central positioning device.

Stripping Unit (Three frames & four sides)

Users can choose whether to use the stripping function by lifting upper stripping frame.
Intermediate negative stripping transmission mechanism.
The installation of the middle stripping board adopts the center line quick positioning installation method, enabling the operators to install the stripping board quickly and improving the plate changing efficiency.
The gripper stripping device can automatically convey gripper waste edges out of the machine.

Delivery Unit (High pile stacking)

Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery.
High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine (Special for high pile stacking delivery).
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.

Batch conveying delivery unit (optional)

The non-stop rolling curtain auxiliary paper delivery device and the automatic batch delivery lifting table device can be used alternately. The automatic batch delivery lifting table device can automatically set the number of stacked sheets, and cooperate with the conveyor belt to convey the paper outside the machine (Special for batch delivery, optional).
The automatic batch delivery lifting table uses conveyor belts for paper delivery. The paper surface is not easily scratched or abraded during the paper stacking process (Special for batch delivery, optional).
The external paper delivery rack and the batch delivery lifting table can also be moved aside to switch to the high pile stacking delivery unit.

Electrical Unit

Self-developed PLC control system.
The die-cutting unit adopts 10.4-inch Germany Siemens touch screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

MHK-1650EFC +

MHK-1650FC +

Dayuan's MHK-1650EFC Automatic Die Cutting Machine (Down Feeder) features fast job changeover and adapts to corrugated boards of various specs. It is ideal for high-speed processing of corrugated boards with strict surface quality requirements, suiting multi-spec production and serving as a perfect equipment for high-efficiency output.

Model	MHK-1650EFC
Name	Automatic Die Cutting Machine with Stripping(Down Feeder）
Stock Range	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Max. Sheet Size	1650×1200mm
Min. Sheet Size	550×500mm
Inner Chase Size	1682×1220mm
Max. Cutting Size	1620×1180mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.2mm
Max. Die Cutting Force	400T
Max. Working Speed	5000s/h
Max. Delivery Pile Height	1600mm
Air Requirement	0.6-0.7MPa, flow rate≥0.75m³/min

Dayuan's MHK-1650FC Automatic Die Cutting Machine with Stripping (Lead Edge Feeder) delivers outstanding performance and fast job changeover, applicable to corrugated boards of various specifications. It ensures precise paper positioning, has lower paper quality requirements and perfectly meets the market's demand for high-speed operation.

Model	MHK-1650FC
Name	Automatic Die Cutting Machine with Stripping(Lead Edge Feeder)
Stock Range	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Max. Sheet Size	1650×1200mm
Min. Sheet Size	550×500mm
Inner Chase Size	1682×1220mm
Max. Cutting Size	1620×1180mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.2mm
Max. Die Cutting Force	400T
Max. Working Speed	5000s/h
Max. Delivery Pile Height	1600mm
Air Requirement	0.6-0.7MPa, flow rate≥0.75m³/min

Motorized Lift Table

Push Type Auto Preloader

Push Type Auto Preloader (with logistic system)

Multifunctional Paper Breaker

Auto Pallet Changer

Auto Logistic System

Die Preloader

Light Table

Batch Conveying Delivery

Raster

Mirror Machines Dual Diecutter Working Station

Automatic Die Cutting Machine with Stripping

MHK-1650EC

Automatic Large‑Format Die Cutting with Waste Stripping

Dayuan MHK-1650EC coordinates high-precision die cutting and efficient stripping ensures superior product quality while boosting production efficiency, an ideal choice for large-format, multi-material die cutting scenarios.

BHT-1650FC/1650EFC

Automatic Flatbed Die Cutting & Waste Stripping Machine (Lead Edge / Bottom Feeder)

Dayuan BHT-1650FC/EFC is flagship large-format die cutting solution, delivering high efficiency and stability for high-end corrugated die cutting.

BHT-1650EC

Automatic Flatbed Die Cutting & Waste Stripping Machine (Top Feeder)

Dayuan BHT-1650EC adapts to die cutting of various corrugated boards and cardboards, ensures production efficiency through high-precision die cutting and stripping, and is an ideal choice for die cutting operations.

MHC-1650FC/1650EFC

1650mm Large-Format Die Cutting & Waste Stripping Machine for Corrugated Board

Dayuan MHC-1650FC/1650EFC ensures stable conveying of various corrugated boards. Stable in operation, it optimizes post-press processes via a three frames stripping system, boosting overall production efficiency and making it a reliable enterprise choice.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com

Products

> Hot Foil stamping & Die Cutting Machine > Flatbed Die Cutting Machine > Sheet Cutter Machine > Stripping & Blanking Machine

Quick Links

Sustainable Development Production and Quality Development and Technology Blog

Model	MHK-1650FC / MHK-1650EFC
Stock Range	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Max. Sheet Size	1650×1200mm
Min. Sheet Size	550×500mm
Inner Chase Size	1682×1220mm
Max. Cutting Size	1620×1180mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.2mm
Max. Die Cutting Force	400T
Max. Working Speed	5000s/h
Max. Delivery Pile Height	1600mm
Air Requirement	0.6-0.7MPa, flow rate≥0.75m³/min
