Name: Double-Station Automatic Die Cutter with Waste Stripping & Heating System
Brand: Dayuan
SKU: 00129
Rating: 4.9 (115 reviews)

Overview

Dayuan's high-performance Double-Station Automatic Die Cutter with Waste Stripping & Heating System MHK-2S1050RRC/2S1050RMC meets high-end packaging needs. Its independent servo-driven asynchronous imprint units finish deep embossing, die cutting and stripping in one pass with rich clear effects; touchscreen gripper bar adjustment meets strict high-end craft and quality demands. Equipped with the three frames and four sides stripping system (upper/lower operate, middle stationary) for fewer connection points and anti-loose plates, its energy-saving system cuts consumption via energy recovery while ensuring high precision and stability, delivering energy-efficient, sustainable production solutions.

Paper Feeding Unit

Fish-scale powerful feeder head with 4 suction and 6 delivery. The suction head can be adjust to various angles according to paper deformation.
Horizontal paper separation blower.
The main and auxiliary stacking tables alternate without stopping, ensuring non-stop feeder operation.
Electrical left/right fine-tuning device for the main feed pile.
The paper alignment adjustment device can adjust the distance before the paper reaches the gauge without stopping the machine.
Blow-suction dual-purpose vacuum pump of German Becker brand.

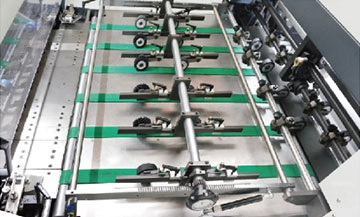

Paper Conveying Unit

Pneumatic lifting device for paper feeding frame.
Single-point clutch: The conveying part and the main machine part can be separated and synchronously combined at any time, which simplifies and facilitates the operation sequence.
PLC and electronic cam control the timing of the whole machine.
Push-pull dual-purpose side gauges on both sides.
Photoelectric detection on both side and front gauges.
Slowdown mechanism for sheet feeding at the front gauge.
Electromechanical double sheet detector.

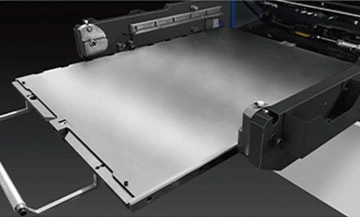

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
Servo controlled gripper bar positioning device: Each gripper bar can be adjusted by PLC touch screen button to ensure the accuracy of gripper bar, with permanent accuracy of ±0.075mm (Invention Patent).
The pressure regulating device enables precise pressure control via PLC touch screen buttons.
The 15mm die-cut steel backing plate and a 5mm combined lower backing plate with +/-0.9mm vertical and horizontal fine-tuning device.
Die-cutting frame with fine-tuning device.
Central positioning device.
20-temperature zones independent control system.
The main motor utilizes servo motor transmission.

Main Machine(refrigeration) cooling and lubrication mechanism

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.
Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.

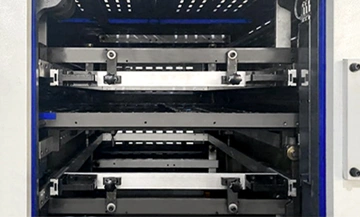

Stripping Unit (Three frames & Four sides)

Users can choose whether to use the stripping function by lifting upper stripping frame.
Intermediate negative stripping transmission mechanism.
The installation of the middle stripping board adopts the center line quick positioning installation method, enabling the operators to install the stripping board quickly and improving the plate changing efficiency.
The gripper stripping device can automatically convey gripper waste edges out of the machine.

Delivery Unit

Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery.
Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper.
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.
The delivery section can be controlled through touch screen.
The two-way auxiliary air blowing.

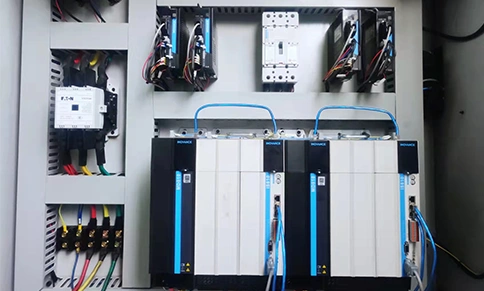

Electrical Unit

Self-developed PLC control system(Invention Patent).
The die-cutting unit and the delivery unit adopt 10.4-inch and 7-inch Germany Siemens touch screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

MHK-2S1050RRC +

MHK-2S1050RMC +

Dayuan's high-performance MHK-2S1050RRC DUOPRESS Automatic High Speed Die Cutting Machine with Stripping & Heating System features independent servo-driven imprint units for asynchronous operation, finishing deep embossing, die cutting and stripping in one pass, meeting high-end packaging's stringent demands with excellent embossing depth and clarity.

The machine can select and combine the functions of each unit according to the process requirements

Model	MHK-2S1050RRC
Function	1. Deep Embossing + Deep Embossing 2. Deep Embossing + Die Cutting + Stripping
Press 1 System	Electric-heated System
Press 2 System	Electric-heated System + Stripping
Max. Die Cutting Force	600T + 600T

Dayuan's high-performance MHK-2S1050RMC DUOPRESS Automatic High Speed Die Cutting Machine with Stripping & Heating System, driven by independent servo motors, enables asynchronous imprint units, finishing deep embossing, die cutting and stripping in one pass for embossing effects, meeting high-end packaging's strict complex process and quality standards.

The machine can select and combine the functions of each unit according to the process requirements

Model	MHK-2S1050RMC
Function	1. Deep Embossing + Die Cutting + Stripping
Press 1 System	Electric-heated System
Press 2 System	Die Cutting + Stripping
Max. Die Cutting Force	600T + 300T

Automated Pallet Changing in Logistics

Die Preloader

Light Table

Sripping Die Preloader

Raster

Mirror Machines Dual Diecutter Working Station

Automatic Die Cutting Machine (Heavy duty)

MHK-1050CE/1050ACE

Automatic High-Speed Die Cutter with Four-Side Waste Stripping

Dayuan MHK-1050CE/1050ACE Series is a recommended all-in-one solution integrating high-speed die cutting and stripping, finishing both processes in a single paper pass to greatly streamline post-production procedures.

Automatic Die Cutting Machine with Four Sides Stripping & Heating System (Heavy duty)

MHK-1050ACER

Automatic Heavy-Duty Die Cutter with Four-Side Waste Stripping & Heat Embossing

Dayuan MHK-1050ACER is ideal for complex deep embossing and die cutting with stripping, streamlining stringent post-printing processes and boosting the production and delivery capacity of die cutting orders efficiently.

DUOPRESS Automatic High Speed Hot Stamping & Die Cutting Machine with Stripping & Heating System

MHK-2S1050TRC/2S1050TMC

Two‑Unit Automatic Hot Stamping & Die Cutting Machine with Stripping and Heating System

Dayuan MHK-2S1050TRC/2S1050TMC Series features dual units with independent servo motors for asynchronous coordination, finishing multi-processes in one pass for premium outputs, ideal for building highly recognizable brand packaging.

TRIOPRESS Automatic High Speed Hot Stamping & Die Cutting Machine with Stripping & Heating System

MHK-3S1050TRRC/3S1050TRMC

Three‑Unit Automatic Hot Stamping & Die Cutting Machine with Stripping & Heating System

Dayuan MHK-3S1050TRRC/3S1050TRMC Series is built for high-end packaging. Its three flexible, asynchronous servo-driven stations finish hot stamping, deep embossing, die cutting and stripping in one pass, a stable solution for high productivity and outstanding quality.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com

Products

> Hot Foil stamping & Die Cutting Machine > Flatbed Die Cutting Machine > Sheet Cutter Machine > Stripping & Blanking Machine

Quick Links

Sustainable Development Production and Quality Development and Technology Blog

Model	MHK-2S1050RRC/MHK-2S1050RMC
Stock Range	Cardboard: 80-2000g/m², 0.1-2mm Corrugated board: ≤4mm
Max. Sheet Size	1050×750mm
Min. Sheet Size	400×360mm
Inner Chase Size	1123×760mm
Max. Cutting Size	1040×720mm
Max. Embossing Size	1040×720mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.075mm
Embossing Accuracy	≤±0.075mm
Max. Working Speed	7200s/h
Max. Feeder Pile Height	1600mm
Max. Delivery Pile Height	1400mm
Electric-heated System	20 Heating zones, 40-180℃ Adjustable
Air Requirement	0.6-0.7MPa, flow rate≥1m³/min

Double-Station Automatic Die Cutter with Waste Stripping & Heating System
