Name: Single-Knife Servo Computerized High-Precision Sheeter
Brand: Dayuan
SKU: 00163
Rating: 4.9 (132 reviews)

Overview

CM-1100A/1500A/1700A/1900A Single-Knife Servo Computerized High-Precision Sheeter adopts an internationally leading cutting knife unit design.The upper cutter roller is made of high-quality stainless steel through welding and precision finishing, while the lower knife holder is constructed with integral cast iron, matched with German tungsten steel cutting blades to achieve stable cutting at up to 400 cuts/min. The Inovance electrical control system and secondary conveying structure enable fast separation of cut paper, adjusting for tile-stacked delivery. Main features: Equipped with automatic web loading and automatic tension control, with optional edge correction devices. It delivers smooth, flat cut edges, suitable for direct printing without secondary processing. Widely applicable to cardboard, whiteboard, coated, kraft, offset, cultural, newsprint, light-coated, high-gloss photo, gold/silver card, aluminum foil, laser, tobacco/alcohol packaging paper and other paper types, it is a practical choice for the printing and packaging industry.

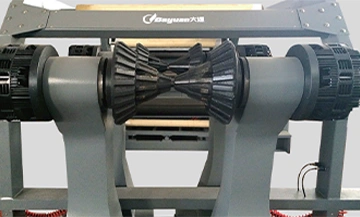

Shaftless Mill Roll Stand

Hydraulic drive:
• Open/close and forward/backward movement of paper roll clamp arms
• Lifting of paper roll clamp arms
Pneumatic breaker, automatic brake
Tension control system: Pneumatic tension control and swing roll to adjust the pressure arm rise or fall, to control the strength of brake.
Anti-curve device: Patented design of anti-curve roller for efficient anti-curve treatment.
The pressing roll adopts electric control and inching mode, to make it moving vertically(engage and disengage), ensuring proper positioning of the conveyed paper and reducing paper wrinkling.

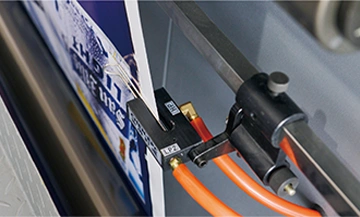

Edge Correction (Optional)

Electronic sensors are used to control the brushless motor for precise edge correction sensing.

Photoelectric Tracking System (Optional)

The automatic edge-guiding electric eye detects the positional deviation of the paper edge or printing reference line, and the edge-correcting system corrects the paper in real time.
Automatic cursor tracking slitting: Accurate positioning of the dual-servo drive system to achieve synchronization and adjustment of dual servo motors.
Automatic cursor electric eye device: High-precision decibel electric eye for accurate positioning of paper color marks, feeding back to the TRIO tracking system.

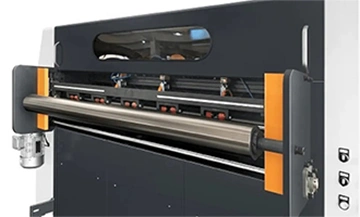

Anti-Curve Device

The anti-curve device is motor-driven with high-speed adjustment.
Dayuan Patented design of anti-curve roller for efficient anti-curve treatment.

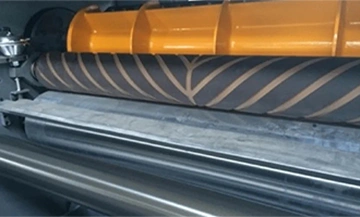

Paper Pre-pressing Section

Paper pre-pressing section adopts electric control and inching mode, to make the pressing roll moving vertically(engage and disengage), ensuring proper positioning of the conveyed paper and reducing paper wrinkling.

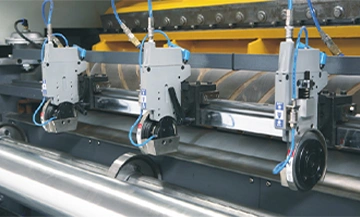

Slitting Knife Unit (Optional)

Adjustable trimming and slitting knives, and waste paper edge suction fan with air duct on both sides.
Upper slitting knife: Adjustable rising and falling, switch type slitting knife, and paper cutting clearance can be adjusted manually.
Lower slitting knife: Knife shaft fixed the upper and lower position, and paper cutting clearance can be adjusted manually.
Y-type waste paper edge collection pipe and fixing frame.

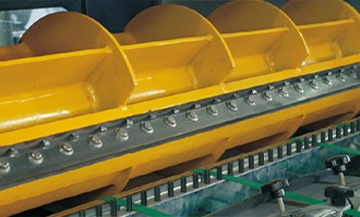

Knife Cutting Unit

Adopts internationally leading cutting knife technology to effectively reduce the load and noise during paper cutting and extend the service life of the cutting knife.
Upper cutter roll: The upper cutter roller body adopts high-quality stainless steel welding, precision finishing, and balance adjustment, to effectively reduce the vibration and noise during high-speed operation.
Lower knife holder: Cast with integral cast iron, followed by CNC precision processing, with excellent stability.
Drive roll: The roller surface adopts the expansion texture design, and the cylinder controls the pressurized clamping roller.
Cutting knife: Uses German tungsten steel cutting blades with an extra-long service life; the blade is easy to adjust and calibrate.
Safety cover: The machine stops automatically when the safety cover is open, so as to guarantee safety.

Static Elimination Equipment (Optional)

Plasma rod type, used to eliminate static electricity on paper.
Static elimination rod: Effective discharge range of 1100mm/1500mm/1700mm/1900mm.

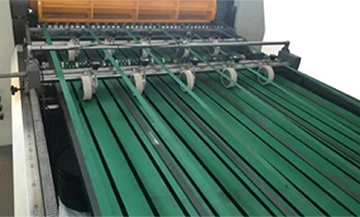

Paper Conveying Unit

Horizontal multi-section differential conveying, used to achieve paper separation, counting and stacking effects. (Conveying belt: Siebeck brand)
First conveying section: Quickly separates the cut paper
Second conveying section: Can be controlled independently or in jointly, adjusting the paper to be delivered in tile-stacked form
Paper-out conveying section: Precision paper separator, adjustable according to the paper width. Pressurized paper feeding wheels can enhance paper stability and prevent paper deviation

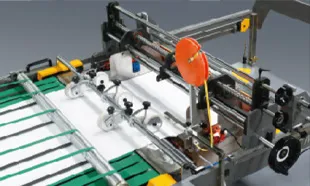

Automatic Paper Aligning and Collecting Equipment

Hydraulic lifting and stacking collection paper table, descend automatically when the paper stacks to a certain height.
Paper aligning equipment: Electric front paper aligning mechanism; electric side paper aligning mechanisms (both sides); flip-type rear baffle mechanism; hand-cranked movable side paper aligning mechanisms (both sides).
Automatic counting and label inserting: Input the number of sheets to insert labels into on the touch-sensitive computer interface, and labels can be inserted according to the set value; Equipped with Sheet replenish function of defective products.

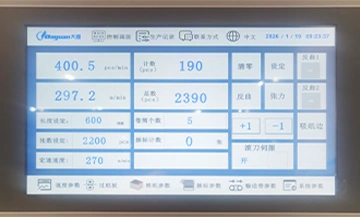

Human-machine Interface

Self-developed electrical control system.
Parameters such as cutting length, quantity, and total number of finished products can be directly input; the actual cutting length and cutting quantity can be displayed in real-time.
Automatic squaring system: Adopts a tool holder fixing method; input the paper cutting size directly on the human-machine interface, and the tool holder will automatically adjust to 90 degrees.

CM-1100A +

CM-1500A +

CM-1700A +

CM-1900A +

CM-1100A Servo Precision High Speed Sheet Cutter adopts an internationally leading cutting knife unit design.The upper cutter roller is made of high-quality stainless steel through welding and precision finishing, while the lower knife holder is constructed with integral cast iron, matched with German tungsten steel cutting blades to achieve stable cutting at up to 400 cuts/min. The Inovance electrical control system and secondary conveying structure enable fast separation of cut paper, adjusting for tile-stacked delivery. Main features: Equipped with automatic web loading and automatic tension control, with optional edge correction devices. It delivers smooth, flat cut edges, suitable for direct printing without secondary processing. Widely applicable to cardboard, whiteboard, coated, kraft, offset, cultural, newsprint, light-coated, high-gloss photo, gold/silver card, aluminum foil, laser, tobacco/alcohol packaging paper and other paper types, it is a practical choice for the printing and packaging industry.

Model	CM-1100A
Name	Servo Precision High Speed Sheet Cutter
Paper Cutting Method	The upper knife moves reciprocally for cutting, and the lower knife is fixed
Thickness of Cutting Paper	60-550gsm
Cutting Length Range	450-1650mm
The format of slitting	1 roll (Optional)
Cutting Precision	Cutting length≤1000mm: ±0.5mm Cutting length＞1000mm: ±0.1%
Max. Cutting Line Speed	300m/min
Max. Cutting Speed	400cuts/min
Max. Scroll Diameter	1800mm
Max. Paper Cutting Width	1100mm
Max. Paper Pile Height	1500mm
Air Compressor Requirement	0.8Mpa

CM-1500A Servo Precision High Speed Sheet Cutter adopts an internationally leading cutting knife unit design.The upper cutter roller is made of high-quality stainless steel through welding and precision finishing, while the lower knife holder is constructed with integral cast iron, matched with German tungsten steel cutting blades to achieve stable cutting at up to 400 cuts/min. The Inovance electrical control system and secondary conveying structure enable fast separation of cut paper, adjusting for tile-stacked delivery. Main features: Equipped with automatic web loading and automatic tension control, with optional edge correction devices. It delivers smooth, flat cut edges, suitable for direct printing without secondary processing. Widely applicable to cardboard, whiteboard, coated, kraft, offset, cultural, newsprint, light-coated, high-gloss photo, gold/silver card, aluminum foil, laser, tobacco/alcohol packaging paper and other paper types, it is a practical choice for the printing and packaging industry.

Model	CM-1500A
Name	Servo Precision High Speed Sheet Cutter
Paper Cutting Method	The upper knife moves reciprocally for cutting, and the lower knife is fixed
Thickness of Cutting Paper	60-550gsm
Cutting Length Range	450-1650mm
The format of slitting	1 roll (Optional)
Cutting Precision	Cutting length≤1000mm: ±0.5mm Cutting length＞1000mm: ±0.1%
Max. Cutting Line Speed	300m/min
Max. Cutting Speed	400cuts/min
Max. Scroll Diameter	1800mm
Max. Paper Cutting Width	1500mm
Max. Paper Pile Height	1500mm
Air Compressor Requirement	0.8Mpa

CM-1700A Servo Precision High Speed Sheet Cutter adopts an internationally leading cutting knife unit design.The upper cutter roller is made of high-quality stainless steel through welding and precision finishing, while the lower knife holder is constructed with integral cast iron, matched with German tungsten steel cutting blades to achieve stable cutting at up to 400 cuts/min. The Inovance electrical control system and secondary conveying structure enable fast separation of cut paper, adjusting for tile-stacked delivery. Main features: Equipped with automatic web loading and automatic tension control, with optional edge correction devices. It delivers smooth, flat cut edges, suitable for direct printing without secondary processing. Widely applicable to cardboard, whiteboard, coated, kraft, offset, cultural, newsprint, light-coated, high-gloss photo, gold/silver card, aluminum foil, laser, tobacco/alcohol packaging paper and other paper types, it is a practical choice for the printing and packaging industry.

Model	CM-1700A
Name	Servo Precision High Speed Sheet Cutter
Paper Cutting Method	The upper knife moves reciprocally for cutting, and the lower knife is fixed
Thickness of Cutting Paper	60-550gsm
Cutting Length Range	450-1650mm
The format of slitting	1 roll (Optional)
Cutting Precision	Cutting length≤1000mm: ±0.5mm Cutting length＞1000mm: ±0.1%
Max. Cutting Line Speed	300m/min
Max. Cutting Speed	400cuts/min
Max. Scroll Diameter	1800mm
Max. Paper Cutting Width	1700mm
Max. Paper Pile Height	1500mm
Air Compressor Requirement	0.8Mpa

CM-1900A Servo Precision High Speed Sheet Cutter adopts an internationally leading cutting knife unit design.The upper cutter roller is made of high-quality stainless steel through welding and precision finishing, while the lower knife holder is constructed with integral cast iron, matched with German tungsten steel cutting blades to achieve stable cutting at up to 400 cuts/min. The Inovance electrical control system and secondary conveying structure enable fast separation of cut paper, adjusting for tile-stacked delivery. Main features: Equipped with automatic web loading and automatic tension control, with optional edge correction devices. It delivers smooth, flat cut edges, suitable for direct printing without secondary processing. Widely applicable to cardboard, whiteboard, coated, kraft, offset, cultural, newsprint, light-coated, high-gloss photo, gold/silver card, aluminum foil, laser, tobacco/alcohol packaging paper and other paper types, it is a practical choice for the printing and packaging industry.

Model	CM-1900A
Name	Servo Precision High Speed Sheet Cutter
Paper Cutting Method	The upper knife moves reciprocally for cutting, and the lower knife is fixed
Thickness of Cutting Paper	60-550gsm
Cutting Length Range	450-1650mm
The format of slitting	1 roll (Optional)
Cutting Precision	Cutting length≤1000mm: ±0.5mm Cutting length＞1000mm: ±0.1%
Max. Cutting Line Speed	300m/min
Max. Cutting Speed	400cuts/min
Max. Scroll Diameter	1800mm
Max. Paper Cutting Width	1900mm
Max. Paper Pile Height	1500mm
Air Compressor Requirement	0.8Mpa

Servo Precision Double Helix High Speed Sheet Cutter Machine

SM-1100/1500/1700

Intelligent Servo Driven Double Helix High Speed Roll to Sheet Cutter Machine

Dayuan SM-1100/1500/1700 has exclusive patented embedded double-rotary spiral knife, integrates automatic anti-curve, edge correction, slitting and trimming mechanisms, balancing efficiency and precision, fit for common papers, an ideal choice for the printing and packaging industry.

KM-1100/1500/1700

Servo Precision Double-Rotary High-Speed Paper Sheeter

Dayuan KM-1100/1500/1700 has exclusive patented embedded double-rotary spiral knife, enabling efficient and stable cutting and meeting common paper cutting needs, a reliable choice for the printing and packaging industry.

HM-1100/1500/1700

Twin-Knife Servo Precision High-Speed Paper Cutting Machine

Dayuan HM-1100/1500/1700 has exclusive patented embedded double-rotary spiral knife, enabling stable cutting, supporting extended various cutting and trimming functions, fit for common paper materials, a reliable support for daily production in the printing and packaging industry.

Double Servo Precision High Speed Sheet Cutter (Photoelectric Tracking Series)

CM-1100A/1500A/1700A/1900A

Double-Servo Precision High-Speed Sheet Cutter with Photoelectric Tracking

Dayuan CM-1100A/1500A/1700A/1900A has a photoelectric tracking system for precise deviation correction cutting, with an internationally leading cutting knife unit, German tungsten steel cutting blades, an Inovance electrical control system and secondary conveying structure, delivering smooth finished products fit for common paper materials, an efficient choice for the printing and packaging industry.
