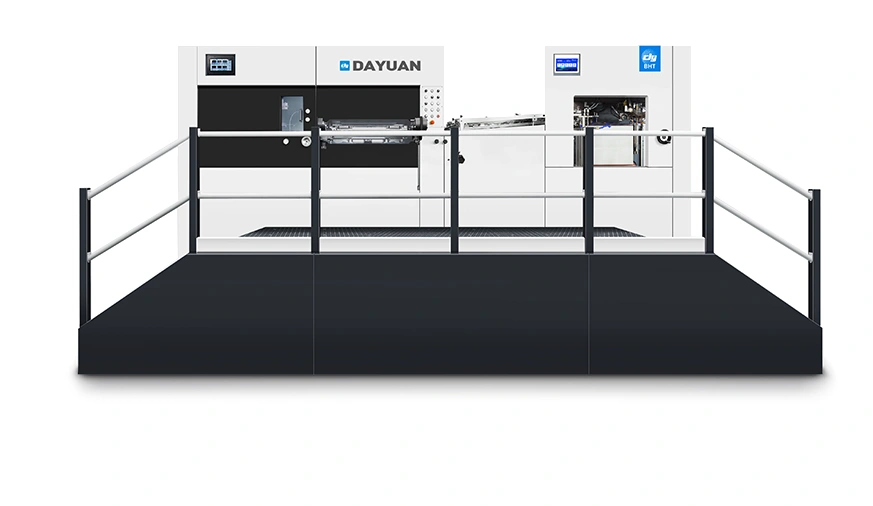

Name: Automatic Die Cutting Machine with Stripping(Heavy duty, Heating system)
Brand: Dayuan
SKU: 00345
Rating: 4.9 (223 reviews)

Overview

The BHT-1060ACER is Dayuan's outstanding post-press equipment integrating heat pressing, die cutting and stripping. It maintains high-speed operation under high temperature and pressure, completing complex deep embossing, precise die cutting and stripping in one go, significantly simplifying post-press workflows and accelerating order delivery.
Equipped with the gripper bar servo rear positioning device and three frames four sides stripping system, its upper and lower frames operate while the middle one stays stationary. This reduces connection points, prevents sheet scattering, ensures stable and high-quality continuous production in complex processes, and is designed for high-end customers with strict process requirements.

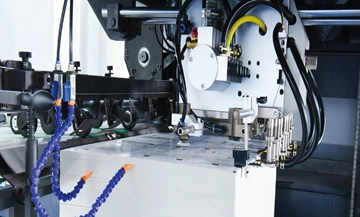

Paper Feeding Unit

Fish-scale powerful feeder head with 4 suction and 6 delivery. The suction head can be adjust to various angles according to paper deformation.
Horizontal paper separation blower.
Full automatic non-stop alternating operation of main and auxiliary paper stacks without operator intervention. (Available as an option)
Mechanical left/right fine-tuning device for the main feed pile.
The paper alignment adjustment device can adjust the distance before the paper reaches the gauge without stopping the machine.
Blow-suction dual-purpose vacuum pump of German Becker brand.

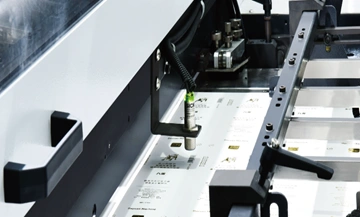

Paper Conveying Unit

Slowdown mechanism for sheet feeding at the front gauge.
Ultrasonic double sheet detection system with effortless calibration, precise operation, and protection against surface scratches.
Four front gauges can be adjusted individually.
Paper pressing device feeds warped sheets smoothly to the front gauge.
Push-pull dual-purpose side gauges on both sides.
Photoelectric detection on both side and front gauges.
If the paper is not in place, the system can force the gripper to open and close.

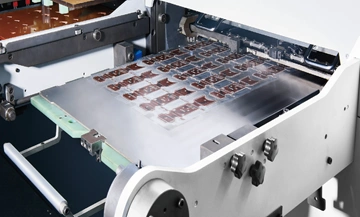

Die Cutting Unit

High-tech carbon fiber gripper bars and positioning structure, fine steel small gripper teeth and supporting gripper plates.
Servo controlled gripper bar positioning device: Each gripper bar can be adjusted by PLC touch screen button to ensure the accuracy of gripper bar, with permanent accuracy of ±0.075mm (Invention Patent).
Pressure regulating device, which can realize accurate control of pressure through PLC touch screen.
The 15mm die-cut steel backing plate and a 5mm combined lower backing plate with +/-0.9mm vertical and horizontal fine-tuning device.
Central positioning system.
Die-cutting chase automatic push-pull mechanism.
Die-cutting chase quick locking device.
SIEMENS (INNOMOTICS) brand main motor.

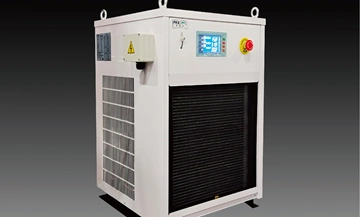

Main Machine(refrigeration) cooling and lubrication mechanism

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.
Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.

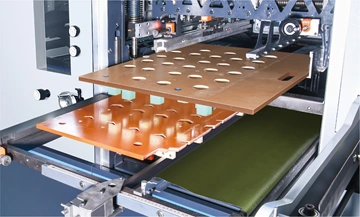

Stripping Unit

Three-frame and four-side stripping system
Pneumatic quick lock device.
Center line quick positioning mechanism.
The upper and lower frames operate while the middle frame remains stationary so there are fewer connection points, and the plate is not prone to coming apart.
High efficiency and smooth CAM movement curve drives large moving angle stripping and full stripping tools.
Stripping frame has micro-adjustment device with digital display.
The gripper stripping device can automatically convey gripper waste edges out of the machine.

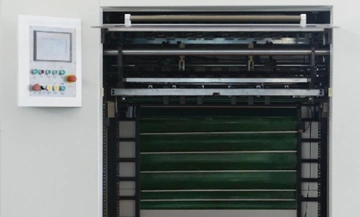

Delivery Unit

Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery.
Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper.
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.
The delivery section can be controlled through touch screen.
The two-way auxiliary air blowing.

Electrical Unit

Germany Siemens PLC control system.
The die-cutting unit and the delivery unit adopt 10.4-inch and 7-inch Germany Siemens touch screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

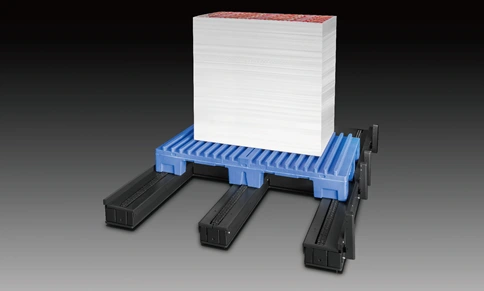

Automated Pallet Changing in Logistics

Die Preloader

Light Table

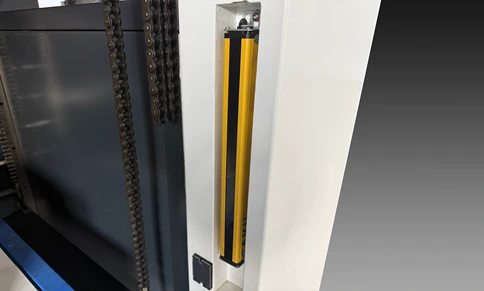

Raster

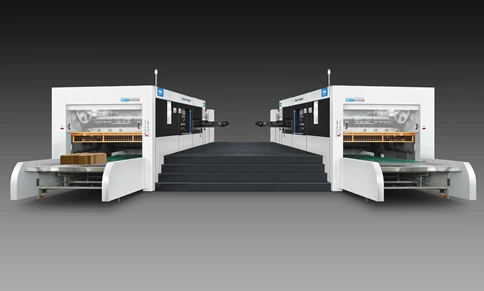

Mirror Machines Dual Diecutter Working Station

BHT-1060/1060A

Automatic High Speed Flatbed Die Cutting Machine

Dayuan BHT-1060/1060A Series, with its high automation, breakthrough speed and reliability, makes it the optimal choice for those pursuing maximum production capacity and intelligent manufacturing.

Automatic Die Cutting Machine (Heavy duty, Heating system)

BHT-1060AR

Automatic Heavy duty Flatbed Die Cutting Machine with Heating system

Dayuan BHT-1060AR is specifically designed for high-quality deep embossing. It ensures deep embossing and die cutting quality during high-speed continuous production, redefining the process standards for efficient, precise deep embossing.

Automatic Die Cutting Machine with Stripping BHT-1060CE

BHT-1060CE/1060ACE

Automatic Die Cutting and Stripping Machine

Dayuan BHT-1060CE/1060ACE Series is top-tier integrated solution combining high speed die cutting and stripping. It finishes both processes in a single sheet feeding pass, streamlining post-production and boosting delivery efficiency.

BHT-1060SCE

Automatic Die Cutting Machine With Stripping & Blanking

Dayuan Excellence Series BHT-1060SCE relying on a number of national invention patents, reduces post-press procedures, greatly improves production efficiency, and is suitable for customers pursuing intelligence and high output.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com

Products

> Hot Foil stamping & Die Cutting Machine > Flatbed Die Cutting Machine > Sheet Cutter Machine > Stripping & Blanking Machine

Quick Links

Sustainable Development Production and Quality Development and Technology Blog

Model	BHT-1060ACER
Stock Range	Cardboard: 80-2000g/m², 0.1-2mm Corrugated board: ≤4mm
Max. Sheet Size	1060×760mm
Min. Sheet Size	400×350mm
Inner Chase Size	1080×790mm
Max. Cutting Size	1060×745mm
Max. Embossing Size	1060×745mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.075mm
Embossing Accuracy	≤±0.075mm
Max. Die Cutting Force	600T
Max. Working Speed	8000s/h
Max. Feeder Pile Height	1630mm
Max. Delivery Pile Height	1480mm
Electric-heated System	20 Heating zones, 40-180℃ Adjustable
Air Requirement	0.6-0.7MPa, flow rate≥0.37m³/min

Automatic Die Cutting Machine with Stripping(Heavy duty, Heating system)
