Name: Automatic Die Cutting Machine with Waste Stripping (Lead Edge Feeder/Down Feeder)
Brand: Dayuan
SKU: 00053
Rating: 4.9 (77 reviews)

Overview

BHT-1500FC/EFC Automatic Die Cutting Machine with Waste Stripping (Lead Edge Feeder/Down Feeder) is Dayuan's flagship large-format die cutting solution for the high-end corrugated market, designed for batch production of diverse paper specs. BHT-1500FC uses lead edge feeder with strong board adaptability; BHT-1500EFC's advanced bottom suction paper feeder ensures zero paper damage. Equipped with German Siemens electrical control system and touch screen, it enables precise, intelligent full-process control. Its stripping unit has efficient three frames four sides design: the upper and lower frames operate while the middle frame remains stationary so there are fewer connection points, and the plate is not prone to coming apart, ideal for batch production of large-format corrugated packaging.

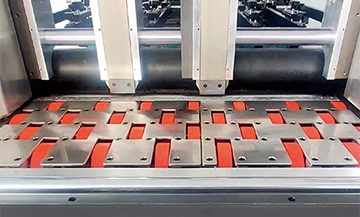

Lead Edge Feeder (FC Series)

High-speed and precise lead edge feeder with high feeding accuracy, strong suction power, anti-slip performance, and stable transportation for various types of corrugated board.
New technology polyester wheels with grid lifter and air cushion ensure smooth feeding and accurate alignment even when dealing with warped board.
Inverter-controlled fine vacuum suction adjustment device.
Electric side-pushing baffles (both the left and right sides).
Independent or synchronous adjustment of left/right baffles.
Slanted front baffle with fine-tuning (forward/backward + upward/downward).

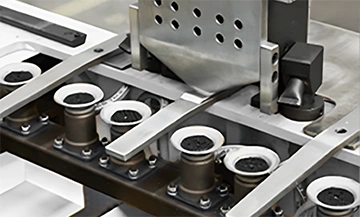

Down Feeder (EFC Series)

High precision bottom suction feeder with non-stop suction nozzle, uses vacuum adsorption mechanism to send corrugated board into the paper pressing rollers, effectively avoiding sheet scratches during feeding.
Electric side-pushing baffle and pneumatic sheet aligning device (right side).
Electrically controlled paper feed roller.
Paper presser and front gauge; double sheet detector respond accurately.
Front hook adjustment device; paper bending up and down can be adjusted.
Blow-suction dual-purpose vacuum pump of German Becker brand.

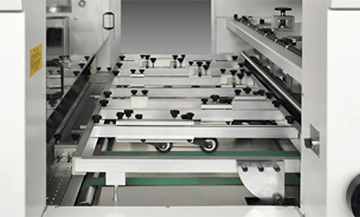

Sheet Transmission and Alignment Section

Non-stop feeding step adjustment.
The fine-tuning device for the front baffle's front and rear positions can be finely adjusted according to the gripper margin size.
Left/right positioning push gauges ensure precise side positioning of the cardboard.

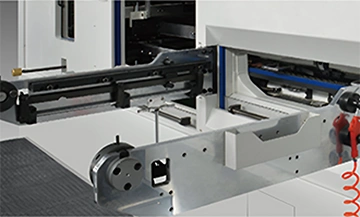

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
The variable-speed worm gear transmission mechanism features a short die-cutting stroke and a large moving angle, which is conducive to the high-speed operation of small connection points in multiple impositions.
Gear transmission, with accurate precision.
The 15mm die-cut steel backing plate and a 5mm combined lower backing plate with +/-0.9mm vertical and horizontal fine-tuning device.
The pressure regulating device enables precise pressure control via PLC touch screen buttons.
Central positioning device.
SIEMENS(INNOMOTICS) brand main motor.

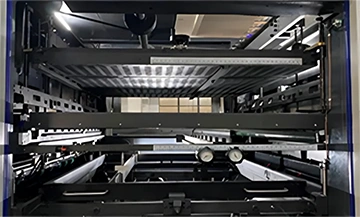

Stripping Unit (Three-frame & Four-side)

Users can choose whether to use the stripping function by lifting upper stripping frame.
Positive-negative die plates to achieve versatile stripping.
The installation of the middle stripping board adopts the center line quick positioning installation method, and the stripping board can be quickly installed.
The upper and lower frames operate while the middle frame remains stationary so there are fewer connection points, and the plate is not prone to coming apart.
The gripper stripping device can automatically convey gripper waste edges out of the machine.

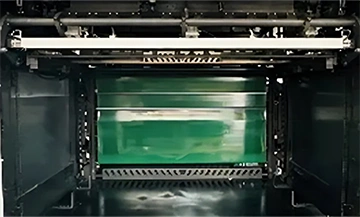

Delivery Unit (High pile stacking)

Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery.
High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine (Special for high pile stacking delivery).
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.

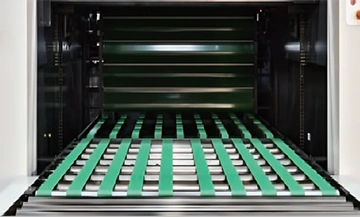

Batch conveying delivery unit (optional)

The non-stop rolling curtain auxiliary paper delivery device and the automatic batch delivery lifting table device can be used alternately. The automatic batch delivery lifting table device can automatically set the number of stacked sheets, and cooperate with the conveyor belt to convey the paper outside the machine (Special for batch delivery, optional).
The automatic batch delivery lifting table uses conveyor belts for paper delivery. The paper surface is not easily scratched or abraded during the paper stacking process (Special for batch delivery, optional).
The external paper delivery rack and the batch delivery lifting table can also be moved aside to switch to the high pile stacking delivery unit.

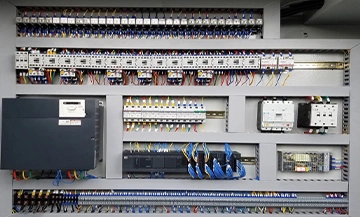

Electrical Unit

Germany Siemens PLC control system.
The die-cutting unit and the delivery unit adopt 10.4-inch and 7-inch Germany Siemens touch screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

BHT-1500FC +

BHT-1500EFC +

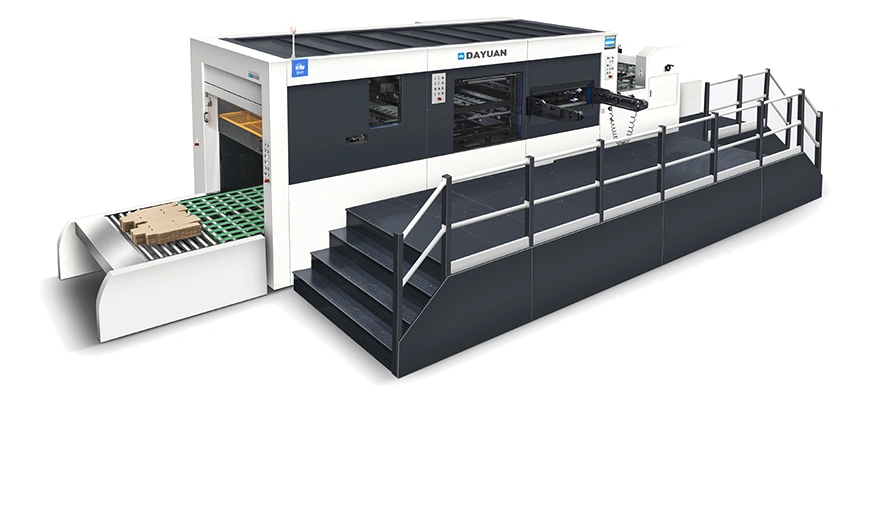

BHT-1500FC is Dayuan's flagship Automatic Die Cutting Machine with Stripping (Lead Edge Feeder) for large-format corrugated board. Adopting lead edge feeder technology, it stably adapts to various corrugated boards with low material quality demands, meeting the packaging industry's strict high-efficiency, reliable production requirements.

Model	BHT-1500FC
Name	Automatic Die Cutting Machine with Stripping(Lead Edge Feeder)
Stock Range	Corrugated board: ≤9mm, F, E, B, C, A and AB corrugated paper
Max. Sheet Size	1520×1100mm
Min. Sheet Size	480×480mm
Inner Chase Size	1600×1146mm
Max. Cutting Size	1500×1100mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.15mm
Max. Die Cutting Force	400T
Max. Working Speed	6000s/h
Max. Delivery Pile Height	1500mm
Air Requirement	0.6-0.7MPa, flow rate≥1m³/min

BHT-1500EFC is Dayuan's flagship Automatic Die Cutting Machine with Stripping (Down Feeder) for large-format corrugated board. It effectively avoids scratches or indentations on board surfaces during feeding at high speed, ideal for high-end corrugated packaging with extremely high surface quality requirements.

Model	BHT-1500EFC
Name	Automatic Die Cutting Machine with Stripping(Down Feeder)
Stock Range	Corrugated board: ≤9mm, F, E, B, C, A and AB corrugated paper
Max. Sheet Size	1520×1100mm
Min. Sheet Size	480×480mm
Inner Chase Size	1600×1146mm
Max. Cutting Size	1500×1100mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.15mm
Max. Die Cutting Force	400T
Max. Working Speed	6000s/h
Max. Delivery Pile Height	1500mm
Air Requirement	0.6-0.7MPa, flow rate≥1m³/min

Motorized Lift Table

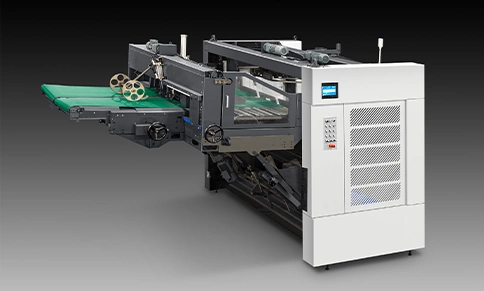

Push Type Auto Preloader

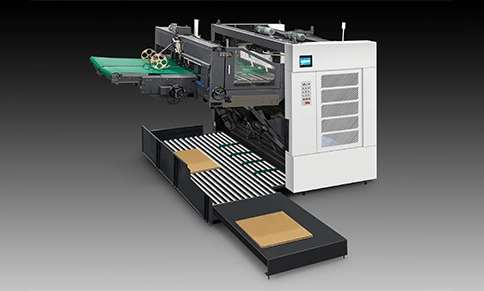

Push Type Auto Preloader (with logistic system)

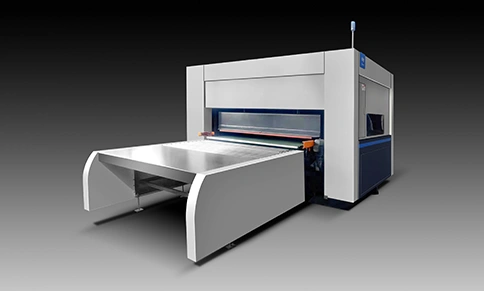

Multifunctional Paper Breaker

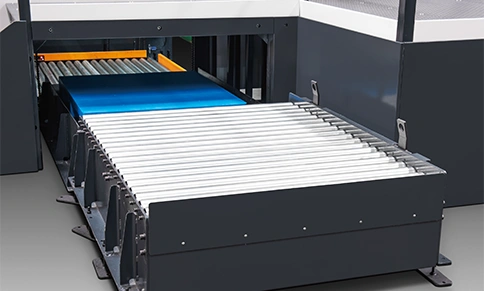

Auto Pallet Changer

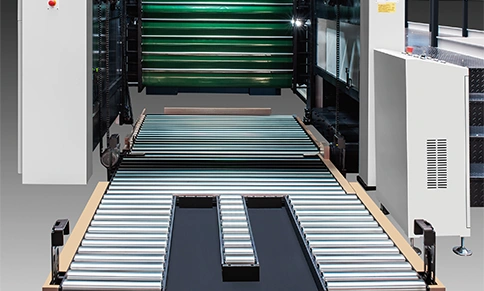

Auto Logistic System

Die Preloader

Light Table

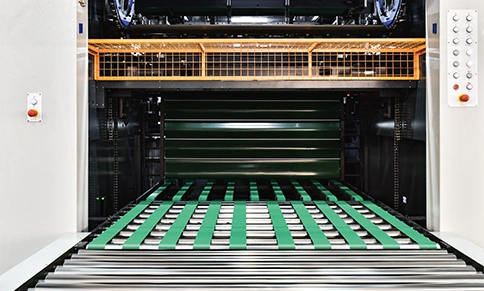

Batch Conveying Delivery

Raster

Mirror Machines Dual Diecutter Working Station

Automatic Die Cutting Machine with Stripping

BHT-1500CE

Automatic Die Cutting Machine with Waste Stripping (Top Feeder)

Dayuan BHT-1500CE adapts to die cutting and stripping of various corrugated board and cardboards, flexibly expanding business scope. Dayuan brings a new product concept to the high-end packaging market, and its highly automated design makes production easier.

MHK-1500FC/1500EFC

Automatic Flatbed Die Cutting & Waste Stripping Machine (Lead Edge/Bottom Feeder)

Dayuan MHK-1500FC/1500EFC Series is an intelligent large-format die cutting solution for the high-end corrugated board market, designed for mass production of diverse paper specs.

MHK-1500EC

Fully Automatic Flatbed Die Cutter with Waste Stripping for Cardboard and Corrugated Board

Dayuan MHK-1500EC integrates high-precision die cutting and efficient stripping boost line efficiency while ensuring superior product quality, an ideal choice for large-format, multi-batch, multi-material die cutting needs.

MHC-1500FC/1500EFC

Automatic Corrugated Board Waste Removing Die-Cutting Machine

Dayuan MHC-1500FC/1500EFC has compatibility with various corrugated boards and a three-frames stripping system to streamline post-press processes. Efficient, stable and cost-effective, it is an excellent choice balancing capacity and cost.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com
