Name: Dual-Function Semi-Automatic Full-Sheet & Row Blanking Machine
Brand: Dayuan
SKU: 00205
Rating: 4.9 (153 reviews)

Overview

Dayuan C-1080BK Dual-Function Semi-Automatic Full-Sheet & Row Blanking Machine features a powerful waste removal system with both row stripping and full sheet stripping functions, enabling one-pass complete stripping and blanking for various boxes, windows, aircraft holes and front-back stitching waste edges within its size range. Without mold changes, its honeycomb plate frame and positioning pins adapt to diverse box shapes, with lower pins supporting products and upper pins compacting waste for clean stripping. The machine offers high efficiency, easy operation, supports OEM upper working panels for custom die-cut layouts, expands processing range, boosts production capacity and saves labor, tooling and mold costs.

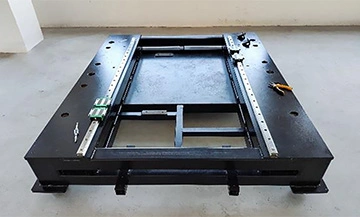

Robust Frame

The machine’s high-precision frame is more robust, ensuring the main body of the machine can bear heavy loads. Four 80mm diameter main frame pipes are capable of with standing a pressure of 80 tons.

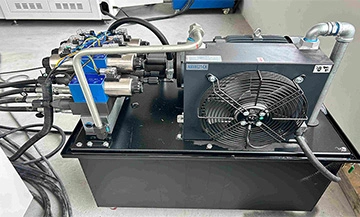

Hydraulic Pump

The machine adopts a vane-type hydraulic pump to ensure the stability of the machine's working pressure.

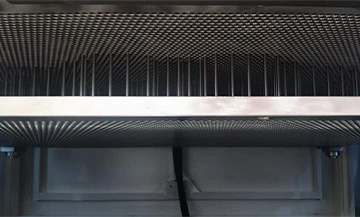

Whole Blanking Function

It removes waste from the product in a single operation through upper and lower pins. No mold is required for boxes of different sizes and shapes.
Upper pins are used to remove waste parts. Diameter: 5mm & 3mm

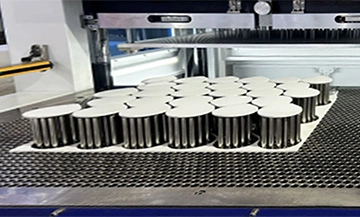

Whole Blanking Function

It removes waste from the product in a single operation through upper and lower pins. No mold is required for boxes of different sizes and shapes.
Lower pins are used to hold the product in place. Diameter: 12mm & 8mm

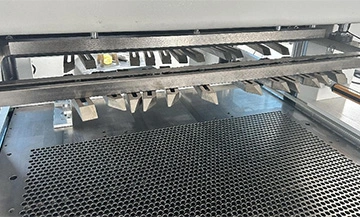

Row Stripping Function

Upper metal fingers can press the waste parts and non-working parts.

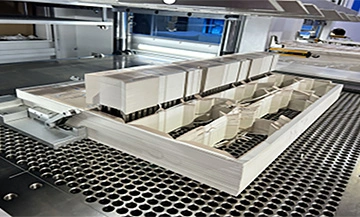

Row Stripping Function

Lower pins are used to hold the product in place. Lower Pins diameter: 12mm & 8mm

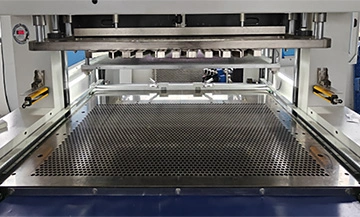

Product Detection Safety Grating

The installed grating protector provides high protection and complies with CE standards. High-precision sensors are installed on both sides of the feeding area for protection, and the machine adopts double OFF/ON button operation for added safety.

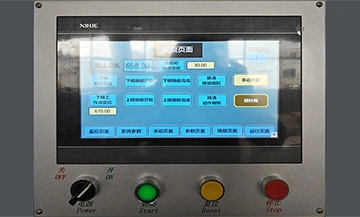

Touch Screen

The machine is operated via a touch screen, allowing easy adjustment and quick setting of new working parameters.

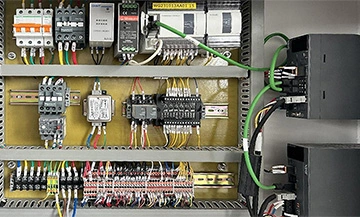

Electrical System

Neat and tidy wiring arrangement

C-1080BF

Semi‑Automatic Full Sheet Waste Stripping Machine

Dayuan C-1080BF achieves complete one-pass waste removal without mold changes, delivering high efficiency and simple operation while boosting users' production capacity. Within the machine's size range, it can fully remove all die-cut waste in one pass for various box types, windows, aircraft holes, and material waste edges of front and back stitching.

C-1080F

Automatic Full-Sheet Stripping & Blanking Machine

Dayuan C-1080F is a new high-speed blanking system with automatic collection and palletizing, replacing traditional manual operations. It enables one-pass complete waste removal without mold changes, offering high efficiency and simple operation to boost user production capacity.

Semi-automatic Row Stripping & Blanking Machine

C-950B

Semi-Automatic Row-Type Waste Stripping & Blanking Machine

As an innovative solution for post-die-cutting processes, Dayuan C-950B is ideally suited for hang tags, labels, paper cups, pharmaceutical packaging, cosmetic packaging, and so on. Through intelligent automation, the system effectively reduces labor costs, enhances product quality and boosts production efficiency.

C-750B

Semi‑Auto Row Stripping Machine

As an innovative solution for post-die-cutting processes, Dayuan C-750B is ideally suited for hang tags, labels, pharmaceutical packaging, cosmetic packaging, and so on. Through intelligent automation, the system effectively reduces labor costs, enhances product quality and boosts production efficiency.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com

Products

> Hot Foil stamping & Die Cutting Machine > Flatbed Die Cutting Machine > Sheet Cutter Machine > Stripping & Blanking Machine

Quick Links

Sustainable Development Production and Quality Development and Technology Blog

Model	C-1080BK
Name	Dual-function Semi-automatic Stripping & Blanking Machine (Full Sheet Blank + Row Blank)
Maximum Stack Size (L×W)	1080×780mm
Maximum Stack Thickness	80mm
Maximum Product Size (L×W)	1060×760mm
Minimum Product Size (L×W)	35×35mm
Maximum Pressure	150kn
Speed	1-5 times/min
Power Supply	380V-3 phase-50/60HZ
Total Power	10kw
Working Air Pressure	0.5-0.6mpa
Air Consumption	2L/min
Overall Dimensions (L×W×H)	2650×1800×2000mm
Weight	3000kg
