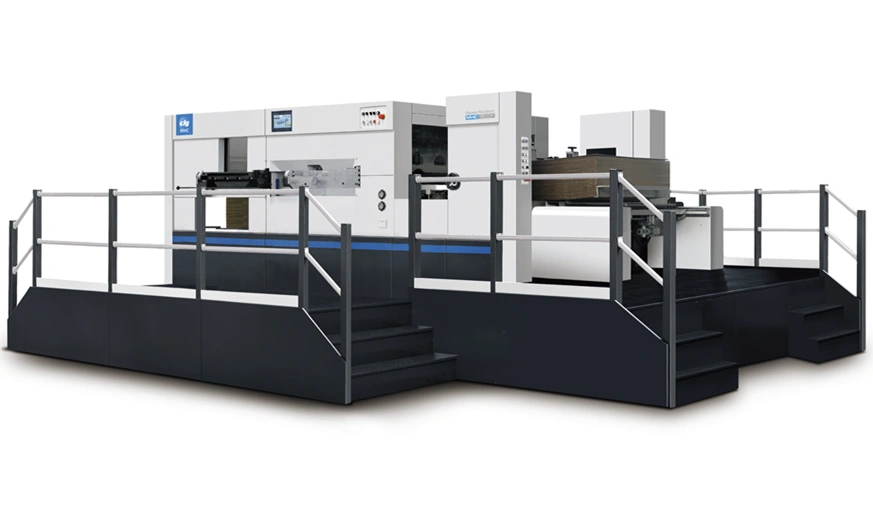

Name: Auto Platen Corrugated Board Die Cutting Machine
Brand: Dayuan
SKU: 00346
Rating: 4.9 (223 reviews)

Overview

Dayuan's MHC-1500F/1500EF are classic Automatic Die Cutting Machines for corrugated board die-cutting. The 1500F has a high-speed and precise lead edge feeder with high feeding accuracy, adapting well to corrugated boards of various grammages. The 1500EF features a bottom suction non-stop feeder, feeding gently via vacuum adsorption mechanism to avoid scratching printed surfaces, ideal for high-quality precision processing. Both use high-strength nodular cast iron and PLC automatic pressure control, with the non-stop roll-up curtain type paper delivery device to cut production interruptions, durable, efficient and a reliable cost-effective choice for practicality.

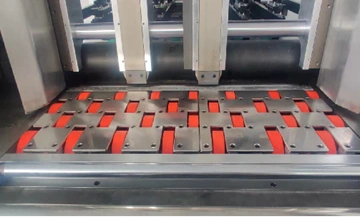

Lead Edge Feeder (F Series)

High-speed and precise lead edge feeder with high feeding accuracy, strong suction power, anti-slip performance, and stable transportation for various types of corrugated board.
New technology polyester wheels with grid lifter and air cushion ensure smooth feeding and accurate alignment even when dealing with warped board.
Inverter-controlled fine vacuum suction adjustment device.
Electric side-pushing baffles (both the left and right sides).
Independent or synchronous adjustment of left/right baffles.
Slanted front baffle with fine-tuning (forward/backward + upward/downward).

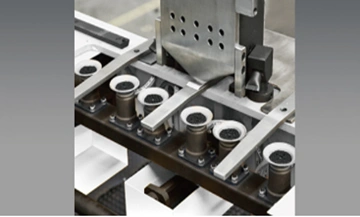

Down Feeder (EF Series)

High precision bottom suction feeder with non-stop suction nozzle, uses vacuum adsorption mechanism to send corrugated board into the paper pressing rollers, effectively avoiding sheet scratches during feeding.
Electric side-pushing baffle and pneumatic sheet aligning device (right side).
Electrically controlled paper feed roller.
Paper presser and front gauge; double sheet detector respond accurately.
Front hook adjustment device; paper bending up and down can be adjusted.
Blow-suction dual-purpose vacuum pump of German Becker brand.

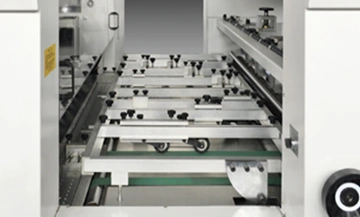

Sheet Transmission and Alignment Section

Non-stop feeding step adjustment.
The fine-tuning device for the front baffle's front and rear positions can be finely adjusted according to the gripper margin size.
Left/right positioning push gauges ensure precise side positioning of the cardboard.

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
Adjustable gripper bar structure.
The pressure regulating device enables precise pressure control via PLC touchscreen buttons.
Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.
Central positioning device.

Delivery Unit (High pile stacking)

Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery.
High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine (Special for high pile stacking delivery).
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.

Electrical Unit

Self-developed PLC control system(Invention Patent).
The die-cutting unit adopts 10.4-inch touch display screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

MHC-1500F +

MHC-1500EF +

Model	MHC-1500F
Name	Automatic Die Cutting Machine (Lead Edge Feeder)
Stock Range	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Max. Sheet Size	1500×1100mm
Min. Sheet Size	470×450mm
Inner Chase Size	1510×1120mm
Max. Cutting Size	1480×1080mm
Min. Gripper Margin	9-17mm
Die Cutting Accuracy	≤±0.15mm
Max. Die Cutting Force	400T
Max. Working Speed	5500s/h
Max. Delivery Pile Height	1400mm
Air Requirement	0.6-0.7MPa, flow rate≥0.37m³/min

Motorized Lift Table

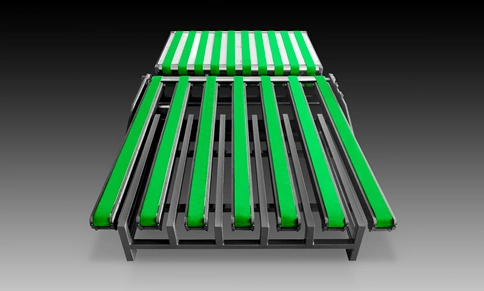

Dedicated Logistics Device for Piled Collecting

Die Preloader

Light Table

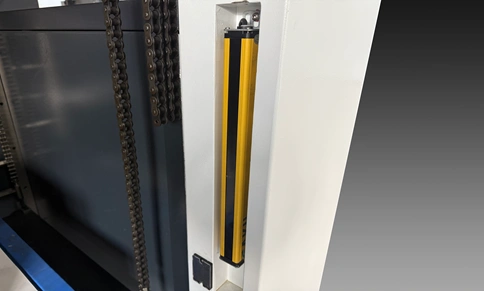

Raster

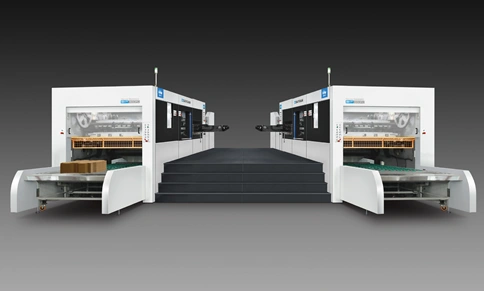

Mirror Machines Dual Diecutter Working Station

Automatic Die Cutting Machine with Stripping

MHC-1500FC/1500EFC

Automatic Corrugated Board Waste Removing Die-Cutting Machine

Dayuan MHC-1500FC/1500EFC has compatibility with various corrugated boards and a three-frames stripping system to streamline post-press processes. Efficient, stable and cost-effective, it is an excellent choice balancing capacity and cost.

MHC-1500E

Automatic Paper Die Cut Machine for Cardboard & Corrugated board

Dayuan MHC-1500E has automatic feeder and handles various paper processing, adapting to diverse production conditions. The whole machine runs stably and efficiently with high cost-effectiveness, an excellent choice to help enterprises balance capacity input and returns.

Automatic Die Cutting Machine with Stripping MHC-1500F/EF

MHC-1500EC

Automatic Paper Die Cut Machine with Waste Removal

Dayuan MHC-1500EC has automatic feeder and handles all paper types, flexibly meeting diverse production needs. Stable in operation, it has a three frames stripping system to optimize post-press processes and boost overall productivity.

MHC-1500B

Semi‑automatic Paper Die Cutting and Creasing Machine

Dayuan MHC-1500B features a robust structural design and smooth, efficient operation. It is well-adapted to a wide range of daily die cutting tasks, effectively helping enterprises enhance die cutting efficiency and delivering practical, hassle-free equipment support for routine production.
