Name: Semi Automatic Flatbed Die Cutting Machine with Waste Stripping
Brand: Dayuan
SKU: 00096
Rating: 4.9 (98 reviews)

Overview

MHC-1100BC is a Semi Automatic Flatbed Die Cutting Machine with Waste Stripping from Dayuan's classic series. With core functions of die cutting and stripping, it operates stably in continuous production, integrating post-press processing to greatly simplify steps and speed up production turnover.

It adopts manual paper feeding with precise positioning for stable feeding; the stripping unit is equipped with three frames stripping system to optimize post-press flow. The whole machine casting uses nodular cast iron and PLC automatic pressure control system, ensuring stable operation and easy operation, making it a practical and reliable choice for enterprises to enhance production capacity.

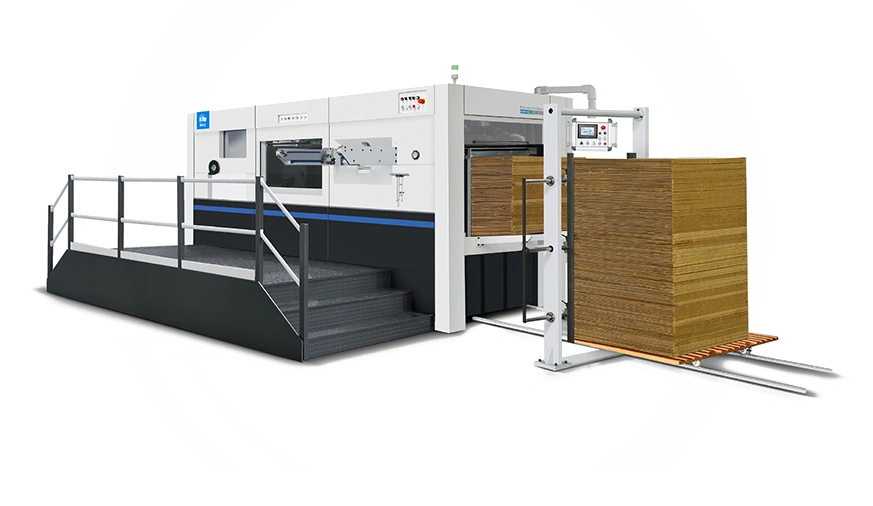

Paper Feeding Unit

Suitable for multiple uses of cardboard, corrugated paper, and greyboard paper.
Equipped with a monitor to observe the operation of the delivery section.
A 10.4-inch color screen shows the working status of the machine.
Pre-paper stacking mechanism for high work efficiency.

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
Adjustable gripper bar structure.
The pressure regulating device enables precise pressure control via PLC touch screen buttons.
Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.
Central positioning device.

Stripping Unit (Three frames)

Upper/Lower waste transmission mechanism.
Users can choose whether to use the stripping function by lifting upper stripping frame.
Intermediate negative stripping transmission mechanism.
The installation of the middle stripping board adopts the center line quick positioning installation method, enabling the operators to install the stripping board quickly and improving the plate changing efficiency.

Delivery Unit

High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine (Special for high pile stacking delivery).
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.
Spring chain adjustment device can reduce the inertia impact during the steering of the gripper bar, and maintain the balanced tension of the chain.

Electrical Unit

Self-developed PLC control system(Invention Patent).
The die-cutting unit adopts 10.4-inch touch display screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

Dedicated Logistics Device for Piled Collecting

Die Preloader

Light Table

Raster

Mirror Machines Dual Diecutter Working Station

MHC-1100E

Automatic Flatbed Die Cutting Machine

Dayuan MHC-1100E has automatic feeder and is suitable for processing various paper types to realize multi-functional use of one machine. With stable and efficient performance and high cost-effectiveness, it's a practical choice balancing capacity and cost, bringing steady returns to enterprises.

Automatic Die Cutting Machine with Stripping MHC-1500F/EF

MHC-1100EC

Fully Automatic Flatbed Die Cutting Machine with Waste Stripping

Dayuan MHC-1100EC has automatic feeder and handles all paper types for multi-use, featuring a robust structure and stable, efficient operation. Equipped with a three frames stripping system to optimize post-press processes, it's an excellent choice for cost reduction and efficiency improvement.

MHC-1100F

Automatic Flatbed Die Cutting Press Machine with Lead Edge Feeder

Dayuan MHC-1100F features a high-speed and precise lead edge feeder with high feeding accuracy, ensuring stable feeding of various corrugated boards. With strong adaptability and a wide working range, it is a practical choice for stable output and cost control.

Automatic Die Cutting Machine with Stripping

MHC-1100FC

Automatic Waste Stripping Die Cutting Press Machine with Lead Edge Feeder

Dayuan MHC-1100FC features a precision lead edge feeder for various corrugated papers and a three frames stripping system to complete die cutting and stripping in one pass, streamlining processes. It is an ideal choice for stable output and cost control.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com

Products

> Hot Foil stamping & Die Cutting Machine > Flatbed Die Cutting Machine > Sheet Cutter Machine > Stripping & Blanking Machine

Quick Links

Sustainable Development Production and Quality Development and Technology Blog

Model	MHC-1100BC
Stock Range	Corrugated board: ≤7mm, E, B, C, A and AB corrugated paper
Max. Sheet Size	1100×790mm
Min. Sheet Size	400×350mm
Inner Chase Size	1100×790mm
Max. Cutting Size	1070×770mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.1mm
Max. Die Cutting Force	300T
Max. Working Speed	7500s/h
Max. Feeder Pile Height	1600mm
Max. Delivery Pile Height	1400mm
Air Requirement	0.6-0.7MPa, flow rate≥0.37m³/min

Semi Automatic Flatbed Die Cutting Machine with Waste Stripping
