Name: Heavy‑Pressure Automatic Hot Foil Stamping and Die Cutting Machine
Brand: Dayuan
SKU: 00150
Rating: 4.9 (125 reviews)

Overview

MHK-1050AT is Dayuan's Heavy‑Pressure Automatic Hot Foil Stamping and Die Cutting Machine of the high-end intelligent series. Systematic optimization brings a remarkable production speed boost, designed for high-end packaging production focusing on efficiency and scale. It ensures continuous high output and stable returns with outstanding operational reliability. Equipped with servo controlled gripper bar positioning device, torque limiting overload protector and other components, it easily handles complex processes while guaranteeing high-speed operation. Fitted with micro-adjustable die cutting plate and Siemens human-machine interface, it ensures convenient and precise control over the whole operation process.

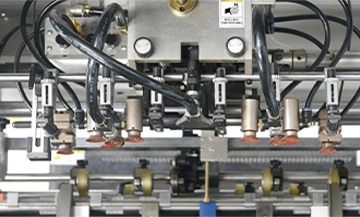

Paper Feeding Unit

Fish-scale powerful feeder head with 4 suction and 4 delivery. The suction head can be adjust to various angles according to paper deformation.
Horizontal paper separation blower.
The main and auxiliary stacking tables alternate without stopping, ensuring non-stop feeder operation.
Electrical left/right fine-tuning device for the main feed pile.
The paper alignment adjustment device can adjust the distance before the paper reaches the gauge without stopping the machine.
Blow-suction dual-purpose vacuum pump of German Becker brand.

Paper Conveying Unit

Pneumatic lifting device for paper feeding frame.
Single-point clutch: The conveying part and the main machine part can be separated and synchronously combined at any time, which simplifies and facilitates the operation sequence.
PLC and electronic cam control the timing of the whole machine.
Push-pull dual-purpose side gauges on both sides.
Photoelectric detection on both side and front gauges.
Slowdown mechanism for sheet feeding at the front gauge.
Electromechanical double sheet detector.

Hot Foil Stamping Unit

Independent R&D of AC801 hot stamping control system, with high operation accuracy and fast speed, which can realize high-speed intelligent skip operation with large-format electrochemical aluminum foil (Invention Patent).
Three vertical and two horizontal independent foil feeding system. (Optional, up to 6 vertical feeding)
Three-vertical large-format dual-axis foil rewinding device (Invention Patent).
Foil broken detection system.
The computerized foil control/monitor system.
14″ touchscreen display at the hot stamping station.
Holographic anti-counterfeiting foil rack device (Optional).
20 temperature zone independent control system.

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
Servo controlled gripper bar positioning device: Each gripper bar can be adjusted by PLC touch screen button to ensure the accuracy of gripper bar, with permanent accuracy of ±0.075mm (Invention Patent).
The pressure regulating device enables precise pressure control via PLC touch screen buttons.
Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.
Central positioning device.
SIEMENS(INNOMOTICS) brand main motor.

Main Machine(refrigeration) cooling and lubrication mechanism

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.
Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.

Delivery Unit

Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery.
Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper.
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.
The delivery section can be controlled through touch screen.
The two-way auxiliary air blowing.

Electrical Unit

All the machines adopts Inovance PLC control system.
The die-cutting unit adopts 10.4-inch Germany Siemens touch screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

Automated Pallet Changing in Logistics

Die Preloader

Light Table

Raster

Mirror Machines Dual Diecutter Working Station

MHK-1050ATC

Heavy‑Pressure Automatic Hot Stamping and Die Cutting with Stripping

Dayuan MHK-1050ATC achieves seamlessly switch between hot stamping and die cutting & stripping, specially designed for high-end packaging customers, securing maximized production returns with consistent and stable output.

Automatic Hot Foil Stamping & Die Cutting Machine (Heavy Duty)

BHT-1060AT

Automatic Hot Foil Stamping Machine (Heavy Duty)

Dayuan BHT-1060AT delivers comprehensive enhancements in both speed and precision. Specifically engineered for high-end packaging production that prioritizes efficiency, it ensures consistent high output and exceptional returns through its outstanding performance.

DUOPRESS Automatic High Speed Double Hot Stamping & Die Cutting Machine

MHK-2S1050TT

Dual‑Unit Automatic High Speed Hot Foil Stamping & Die Cutter Machine

Dayuan MHK-2S1050TT features two imprint units with servo motors work asynchronously, finishing hot stamping, deep embossing and die cutting in single pass, greatly shortening production cycles and ensuring product precision.

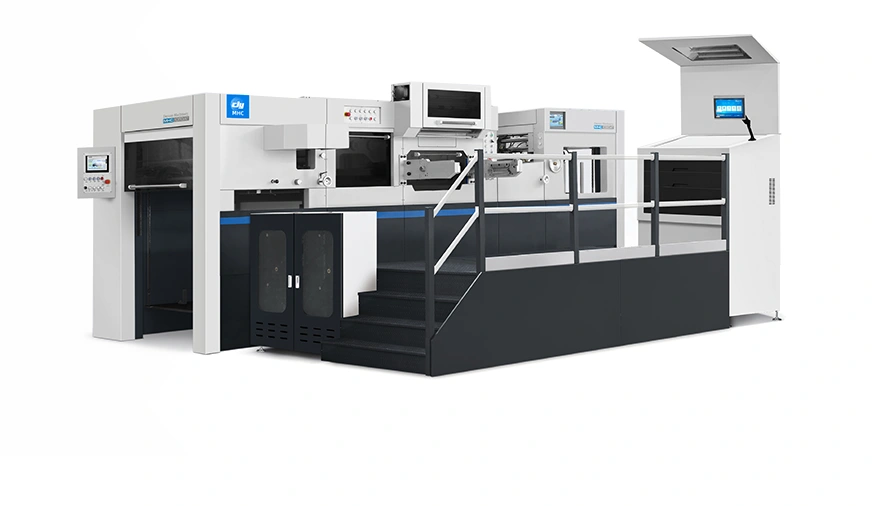

Automatic Hot Foil & Die Cutting Machine (Heavy Duty)

MHC-1060AT

Heavy‑Duty Automatic Hot Foil Stamping Machine

Dayuan MHC-1060AT features an all-nodular cast iron body, equipped with EU standard electric control system, adjustable gripper bars and non-stop paper collection, boosting efficient order delivery and slashing equipment operation and maintenance costs.

Automatic Die Cutting Machine (Heavy duty)

MHK-1050CE/1050ACE

Automatic High-Speed Die Cutter with Four-Side Waste Stripping

Dayuan MHK-1050CE/1050ACE Series is a recommended all-in-one solution integrating high-speed die cutting and stripping, finishing both processes in a single paper pass to greatly streamline post-production procedures.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com

Products

> Hot Foil stamping & Die Cutting Machine > Flatbed Die Cutting Machine > Sheet Cutter Machine > Stripping & Blanking Machine

Quick Links

Sustainable Development Production and Quality Development and Technology Blog

Model	MHK-1050AT
Stock Range	Cardboard: 80-2000g/m², 0.1-2mm Corrugated board: ≤4mm
Max. Sheet Size	1050×750mm
Min. Sheet Size	400×360mm
Inner Chase Size	1123×760mm
Max. Cutting Size	1040×720mm
Max. Stamping Size	1040×720mm
Max. Embossing Size	1040×720mm
Min. Gripper Margin	9-17mm
Die Cutting Accuracy	≤±0.075mm
Stamping accuracy	≤±0.1mm
Embossing Accuracy	≤±0.075mm
Max. Die Cutting Force	600T
Max. Working Speed	7500s/h
Max. Feeder Pile Height	1600mm
Max. Delivery Pile Height	1400mm
Max. Gold Foil Diameter	φ250mm Longitudinal，φ200mm Transeversal
Electric-heated System	20 Heating zones, 40-180℃ Adjustable
Foil Width	20-1020mm
Air Requirement	0.6-0.7MPa, flow rate≥0.37m³/min
