Name: Heavy‑Duty Automatic Hot Foil Stamping Machine
Brand: Dayuan
SKU: 00022
Rating: 4.9 (61 reviews)

Overview

Dayuan's classic MHC-1060AT Heavy‑Duty Automatic Hot Foil Stamping Machine ensures sustainable production with a nodular cast iron body and EU standard electrical control system. Its innovative configurations including adjustable gripper bars, non-stop paper collection device and centralized oil supply system meet enterprises' demands for high-efficiency production and fast order delivery, while significantly reducing daily operation and maintenance costs. The machine supports intelligent human-machine interface control, simplifying operational steps throughout the process and providing users with an integrated, stable, intelligent and cost-effective die cutting and hot foil stamping solution.

Paper Feeding Unit

Fish-scale powerful feeder head with 4 suction and 4 delivery. The suction head can be adjust to various angles according to paper deformation.
Horizontal paper separation blower.
The main and auxiliary stacking tables alternate without stopping, ensuring non-stop feeder operation.
Electrical left/right fine-tuning device for the main feed pile.
The paper alignment adjustment device can manually adjust the distance before the paper reaches the gauge without stopping the machine.
Blow-suction dual-purpose vacuum pump of German Becker brand.

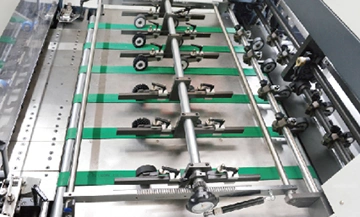

Paper Conveying Unit

Pneumatic lifting device for paper feeding frame.
Single-point clutch: The conveying part and the main machine part can be separated and synchronously combined at any time, which simplifies and facilitates the operation sequence.
PLC and electronic cam control the timing of the whole machine.
Push-pull dual-purpose side gauges on both sides.
Photoelectric detection on both side and front gauges.
Slowdown mechanism for sheet feeding at the front gauge.
Electromechanical double sheet detector.

Hot Foil Stamping Unit

Independent R&D of AC801 hot stamping control system, with high operation accuracy and fast speed, which can realize high-speed intelligent skip operation with large-format electrochemical aluminum foil (Invention Patent).
Three vertical and two horizontal independent foil feeding system. (Optional, up to 6 vertical feeding)
Three-vertical large-format dual-axis foil rewinding device (Invention Patent).
Foil broken detection system.
The computerized foil control/monitor system.
14″ touchscreen display at the hot stamping station.
Holographic anti-counterfeiting foil rack device (Optional).
20 temperature zone independent control system.

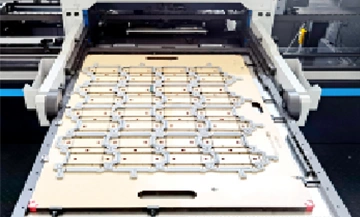

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
Adjustable gripper bar structure.
The pressure regulating device enables precise pressure control via PLC touch screen buttons.
Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.
Central positioning device.

Main Machine(refrigeration) cooling and lubrication mechanism

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.
Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.

Delivery Unit

Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery.
Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper.
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.
The two-way auxiliary air blowing.

Electrical Unit

Self-developed PLC control system(Invention Patent).
The die-cutting unit adopts 10.4-inch touch display screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

Die Preloader

Light Table

Raster

Mirror Machines Dual Diecutter Working Station

Automatic Hot Foil Stamping & Die Cutting Machine (Heavy Duty)

MHK-1050AT

Heavy‑Pressure Automatic Hot Foil Stamping and Die Cutting Machine

Dayuan MHK-1050AT achieves a remarkable boost in working speed, designed for high-end packaging customers pursuing high output, and ensures maximized production returns with consistent and stable output.

MHK-1050ATC

Heavy‑Pressure Automatic Hot Stamping and Die Cutting with Stripping

Dayuan MHK-1050ATC achieves seamlessly switch between hot stamping and die cutting & stripping, specially designed for high-end packaging customers, securing maximized production returns with consistent and stable output.

Automatic Die Cutting Machine with Stripping (Heavy duty,Heating System)

MHC-1060ACER

Classic Heavy Duty Die Cutting with Stripping & Heating

Dayuan MHC-1060ACER integrates hot pressing, die cutting and stripping. With electromechanical double sheet detector and three frames stripping for efficient linkage, it stably completes post-printing processes and boosts efficient order delivery.

MHC-1060CE/1060ACE

Automatic Flatbed Die Cutting Machine with Waste Stripping

Dayuan MHC-1060CE/1060ACE finishes die cutting and stripping in one paper pass. Equipped with an electromechanical double sheet detector and centralized oil supply system, it ensures high-efficiency production and controls costs, a reliable choice for practicality and cost performance.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com

Products

> Hot Foil stamping & Die Cutting Machine > Flatbed Die Cutting Machine > Sheet Cutter Machine > Stripping & Blanking Machine

Quick Links

Sustainable Development Production and Quality Development and Technology Blog

Model	MHC-1060AT
Stock Range	Cardboard: 80-2000g/m², 0.1-2mm Corrugated board: ≤4mm
Max. Sheet Size	1080×780mm
Min. Sheet Size	400×350mm
Inner Chase Size	1100×790mm
Max. Cutting Size	1060×760mm
Max. Stamping Size	1060×760mm
Max. Embossing Size	1060×760mm
Min. Gripper Margin	9-17mm
Die Cutting Accuracy	≤±0.1mm
Stamping accuracy	≤±0.1mm
Embossing Accuracy	≤±0.1mm
Max. Die Cutting Force	600T
Max. Working Speed	7500s/h
Max. Feeder Pile Height	1600mm
Max. Delivery Pile Height	1400mm
Max. Gold Foil Diameter	φ250mm Longitudinal，φ200mm Transeversal
Electric-heated System	20 Heating zones, 40-180℃ Adjustable
Foil Width	20-1020mm
Air Requirement	0.6-0.7MPa, flow rate≥0.37m³/min
