Name: Automatic Flatbed Die Cutting Machine (Lead Edge Feeder/Down Feeder)
Brand: Dayuan
SKU: 00113
Rating: 4.9 (107 reviews)

Overview

Dayuan's MHK-1180F/EF Automatic Flatbed Die Cutting Machine (Lead Edge Feeder/Down Feeder) is an intelligent die cutting solution for high-end corrugated board mass processing, boasting excellent spec adaptability and production flexibility. F series adopt lead edge feeder for strong adaptability to various boards; EF series are equipped with advanced bottom suction paper feeder to effectively avoid scratching printed surfaces. Integrated with servo controlled gripper bar positioning device, Siemens smart touch interface and precision timing belt/pulley drive intermittent mechanism, paired with torque limiting overload protector and efficient main machine cooling and lubrication mechanism, it maintains consistent processing and stable precision in complex automated tasks.

Lead Edge Feeder (F Series)

High-speed and precise lead edge feeder with high feeding accuracy, strong suction power, anti-slip performance, and stable transportation for various types of corrugated board.
New technology polyester wheels with grid lifter and air cushion ensure smooth feeding and accurate alignment even when dealing with warped board.
Inverter-controlled fine vacuum suction adjustment device.
Electric side-pushing baffles (both the left and right sides).
Independent or synchronous adjustment of left/right baffles.
Slanted front baffle with fine-tuning (forward/backward + upward/downward).

Down Feeder (EF Series)

High precision bottom suction feeder with non-stop suction nozzle, uses vacuum adsorption mechanism to send corrugated board into the paper pressing rollers, effectively avoiding sheet scratches during feeding.
Electric side-pushing baffle and pneumatic sheet aligning device (right side).
Electrically controlled paper feed roller.
Paper presser and front gauge; double sheet detector respond accurately.
Front hook adjustment device; paper bending up and down can be adjusted.
Blow-suction dual-purpose vacuum pump of German Becker brand.

Sheet Transmission and Alignment Section

Non-stop feeding step adjustment.
The fine-tuning device for the front baffle's front and rear positions can be finely adjusted according to the gripper margin size.
Left/right positioning push gauges ensure precise side positioning of the cardboard.

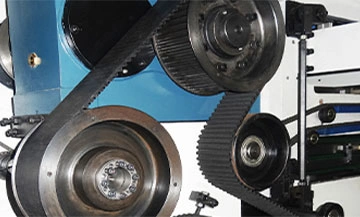

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
Adjustable gripper bar structure.
Servo controlled gripper bar positioning device: Each gripper bar can be adjusted by PLC touch screen button to ensure the accuracy of gripper bar, with permanent accuracy of ±0.075mm (Invention Patent).
The pressure regulating device enables precise pressure control via PLC touch screen buttons.
Die-cutting base plate and die mould rotary device.
Central positioning device.
SIEMENS(INNOMOTICS) brand main motor.

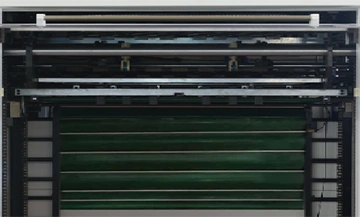

Delivery Unit (High pile stacking)

Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery.
High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine (Special for high pile stacking delivery).
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up.

Electrical Unit

All the machines adopts Inovance PLC control system.
The die-cutting unit adopts 10.4-inch Germany Siemens touch screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

MHK-1180F +

MHK-1180EF +

Dayuan's MHK-1180F Automatic Die Cutting Machine (Lead Edge Feeder) features high-precision paper positioning, stably handling corrugated boards of various grammages and grades. It meets high-efficiency, high-reliability continuous production needs, a professional equipment for stable output and cost optimization.

Model	MHK-1180F
Name	Automatic Die Cutting Machine (Lead Edge Feeder)
Stock Range	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Max. Sheet Size	1180×1050mm
Min. Sheet Size	400×360mm
Inner Chase Size	1230×1029mm
Max. Cutting Size	1150×1000mm
Min. Gripper Margin	9-17mm
Die Cutting Accuracy	≤±0.1mm
Max. Die Cutting Force	400T
Max. Working Speed	7000s/h
Max. Delivery Pile Height	1400mm
Air Requirement	0.6-0.7MPa, flow rate≥0.37m³/min

Dayuan's MHK-1180EF Automatic Die Cutting Machine (Down Feeder) can realize gentle paper transmission during high-speed operation, fundamentally avoiding scratches or indentations on the board surface in the feeding process, and is perfectly suitable for the production of diverse and high-standard corrugated packaging.

Model	MHK-1180EF
Name	Automatic Die Cutting Machine (Down Feeder)
Stock Range	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Max. Sheet Size	1180×1050mm
Min. Sheet Size	400×360mm
Inner Chase Size	1230×1029mm
Max. Cutting Size	1150×1000mm
Min. Gripper Margin	9-17mm
Die Cutting Accuracy	≤±0.1mm
Max. Die Cutting Force	400T
Max. Working Speed	7000s/h
Max. Delivery Pile Height	1400mm
Air Requirement	0.6-0.7MPa, flow rate≥0.37m³/min

Motorized Lift Table

Push Type Auto Preloader

Push Type Auto Preloader (with logistic system)

Multifunctional Paper Breaker

Auto Pallet Changer

Auto Logistic System

Die Preloader

Light Table

Raster

Mirror Machines Dual Diecutter Working Station

Automatic Die Cutting Machine with Stripping

MHK-1180FC/1180EFC

Automatic Flatbed Die Cutting & Waste Stripping Machine (Lead Edge / Bottom Feeder)

Dayuan MHK-1180FC/1180EFC Series is an intelligent die cutting solution for mass production of high-end corrugated boards, flexibly adapting to diverse specification requirements.

MHK-1180/1180A

Automatic Flat-bed Die Cutting Machine

Dayuan MHK-1180/1180A series boasting a high level of automation, groundbreaking speed and reliable performance, is the optimal choice for enterprises pursuing maximized production capacity and intelligent manufacturing, and brings you an ideal return on investment in production operation.

Automatic Die Cutting Machine (Heavy duty)

MHK-1180CE/1180ACE

Automatic Four-Side Waste Stripping Die Cutting Machine

Dayuan MHK-1180CE/1180ACE Series is a recommended all-in-one solution integrating high-speed die cutting and stripping, finishing both processes in a single paper pass to greatly streamline post-production procedures.

MHK-1180AR

Automatic Die Cutting Machine with Heating System (Heavy duty)

Dayuan MHK-1180AR maintains ultra-high stability during high-speed operation, delivers delicate and uniform deep embossing effects, setting a reliable benchmark for efficiency and quality in large-scale, high-end deep embossing production.

Automatic Die Cutting Machine with Four Sides Stripping & Heating System (Heavy duty)

MHK-1180ACER

Automatic Die Cutting, Waste Stripping & Heat Embossing Machine

Dayuan MHK-1180ACER is ideal for complex deep embossing and die cutting with stripping, streamlining stringent post-printing processes and boosting the production and delivery capacity of die cutting orders efficiently.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com

Products

> Hot Foil stamping & Die Cutting Machine > Flatbed Die Cutting Machine > Sheet Cutter Machine > Stripping & Blanking Machine

Quick Links

Sustainable Development Production and Quality Development and Technology Blog

Model	MHK-1180F / MHK-1180EF
Stock Range	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Max. Sheet Size	1180×1050mm
Min. Sheet Size	400×360mm
Inner Chase Size	1230×1029mm
Max. Cutting Size	1150×1000mm
Min. Gripper Margin	9-17mm
Die Cutting Accuracy	≤±0.1mm
Max. Die Cutting Force	400T
Max. Working Speed	7000s/h
Max. Delivery Pile Height	1400mm
Air Requirement	0.6-0.7MPa, flow rate≥0.37m³/min

Automatic Flatbed Die Cutting Machine (Lead Edge Feeder/Down Feeder)
