Name: Automatic Flatbed Die Cutting & Waste Stripping Machine (Lead Edge / Bottom Feeder)
Brand: Dayuan
SKU: 00111
Rating: 4.9 (106 reviews)

Overview

Dayuan's MHK-1180FC/EFC Automatic Flatbed Die Cutting & Waste Stripping Machine (Lead Edge / Bottom Feeder) is an intelligent die cutting solution for mass production of high-end corrugated boards, flexibly adapting to diverse specification requirements. FC series adopt lead edge feeder with strong adaptability to various boards; EFC series are equipped with an advanced bottom suction paper feeder to ensure zero surface damage. It features a high-efficiency three frames and four sides stripping unit, integrating the servo controlled gripper bar positioning device, German Siemens intelligent HMI, precision timing belt/pulley drive intermittent mechanism, with torque limiting overload protector and efficient main machine cooling and lubrication mechanism, maintaining consistent product precision in complex automated tasks.

Lead Edge Feeder (FC Series)

High-speed and precise lead edge feeder with high feeding accuracy, strong suction power, anti-slip performance, and stable transportation for various types of corrugated board.
New technology polyester wheels with grid lifter and air cushion ensure smooth feeding and accurate alignment even when dealing with warped board.
Inverter-controlled fine vacuum suction adjustment device.
Electric side-pushing baffles (both the left and right sides).
Independent or synchronous adjustment of left/right baffles.
Slanted front baffle with fine-tuning (forward/backward + upward/downward).

Down Feeder (EFC Series)

High precision bottom suction feeder with non-stop suction nozzle, uses vacuum adsorption mechanism to send corrugated board into the paper pressing rollers, effectively avoiding sheet scratches during feeding.
Electric side-pushing baffle and pneumatic sheet aligning device (right side).
Electrically controlled paper feed roller.
Paper presser and front gauge; double sheet detector respond accurately.
Front hook adjustment device; paper bending up and down can be adjusted.
Blow-suction dual-purpose vacuum pump of German Becker brand.

Sheet Transmission and Alignment Section

Non-stop feeding step adjustment.
The fine-tuning device for the front baffle's front and rear positions can be finely adjusted according to the gripper margin size.
Left/right positioning push gauges ensure precise side positioning of the cardboard.

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
Adjustable gripper bar structure.
Servo controlled gripper bar positioning device: Each gripper bar can be adjusted by PLC touch screen button to ensure the accuracy of gripper bar, with permanent accuracy of ±0.075mm (Invention Patent).
The pressure regulating device enables precise pressure control via PLC touch screen buttons.
Die-cutting base plate and die mould rotary device.
Central positioning device.
SIEMENS(INNOMOTICS) brand main motor.

Stripping Unit (Three frames & four sides)

Users can choose whether to use the stripping function by lifting upper stripping frame.
Intermediate negative stripping transmission mechanism.
The installation of the middle stripping board adopts the center line quick positioning installation method, enabling the operators to install the stripping board quickly and improving the plate changing efficiency.
The gripper stripping device can automatically convey gripper waste edges out of the machine.

Delivery Unit (High pile stacking)

Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery.
High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine (Special for high pile stacking delivery).
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up.

Electrical Unit

All the machines adopts Inovance PLC control system.
The die-cutting unit adopts 10.4-inch Germany Siemens touch screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

MHK-1180FC +

MHK-1180EFC +

Dayuan's MHK-1180FC Automatic Die Cutting Machine (Lead Edge Feeder) adopts lead edge feeder technology, stably handling corrugated boards of various grammages and grades. Easy job change meets high-efficiency, high-reliability continuous production, a professional equipment for stable output and optimized production costs.

Model	MHK-1180FC
Name	Automatic Die Cutting Machine with Stripping(Lead Edge Feeder)
Stock Range	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Max. Sheet Size	1180×1050mm
Min. Sheet Size	400×360mm
Inner Chase Size	1230×1029mm
Max. Cutting Size	1150×1000mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.1mm
Max. Die Cutting Force	400T
Max. Working Speed	7000s/h
Max. Delivery Pile Height	1400mm
Air Requirement	0.6-0.7MPa, flow rate≥0.37m³/min

Dayuan's MHK-1180EFC Automatic Die Cutting Machine (Down Feeder) prevents scratches or indentations on the board surface during the feeding process even at high-speed operation. It features fast job changeover and is especially suitable for corrugated packaging production with high finished product appearance requirements and diversified manufacturing needs.

Model	MHK-1180EFC
Name	Automatic Die Cutting Machine with Stripping(Down Feeder）
Stock Range	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Max. Sheet Size	1180×1050mm
Min. Sheet Size	400×360mm
Inner Chase Size	1230×1029mm
Max. Cutting Size	1150×1000mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.1mm
Max. Die Cutting Force	400T
Max. Working Speed	7000s/h
Max. Delivery Pile Height	1400mm
Air Requirement	0.6-0.7MPa, flow rate≥0.37m³/min

Motorized Lift Table

Push Type Auto Preloader

Push Type Auto Preloader (with logistic system)

Multifunctional Paper Breaker

Auto Pallet Changer

Auto Logistic System

Die Preloader

Light Table

Raster

Mirror Machines Dual Diecutter Working Station

MHK-1180F/1180EF

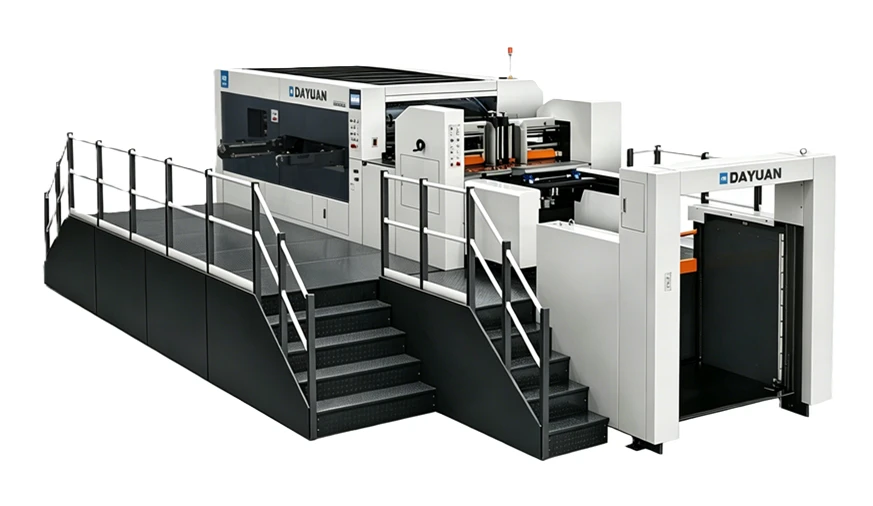

Automatic Flatbed Die Cutting Machine (Lead Edge Feeder/Down Feeder)
