Name: Web-fed Digital Printing Machine
Brand: Dayuan
SKU: 00349
Rating: 4.9 (225 reviews)

Overview

Dayuan H-1716 Series Web-fed Digital Printing Machine requires no plate making and enables digital printing immediately upon startup. Fitted with 16 Japanese Epson I3200-A1 micro piezo printheads supporting 8-color printing, it delivers high-definition inkjet printing featuring high color saturation and exquisite patterns.

This machine can be flexibly equipped with a full set of intelligent functions including automatic web feeding, digital printing, film laminating, tension control, edge correction, slitting, trim waste rewinding, automatic cross cutting and automatic paper collection. It delivers high-precision cross cutting and supports inline operation for various paper sizes. Featuring an intelligent control system and high-precision components, the equipment greatly boosts production efficiency.

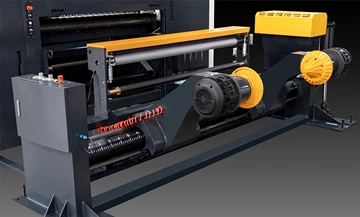

Automatic Roll Loading Stand

The clamping arms of the automatic feeding stand for roll paper are made of ductile cast iron, featuring high mechanical strength and permanent anti-deformation performance.

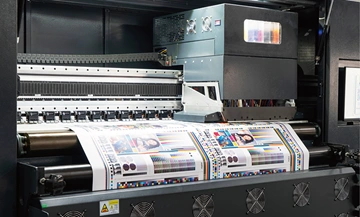

Digital Printing Unit

Four rows, four sets, totaling 16 pieces of Japan Epson I3200-A1 micro piezo printheads in 8-color configuration.
It adopts servo-controlled magnetic levitation scanning printing technology, fitted with magnetic levitation motors, magnetic grating transmission modules and THK ultra-quiet linear guides, delivering stable performance with zero operating noise.
Intelligent ink droplet control technology enables precise ink droplet ejection.
It adopts printhead anti-collision protection, automatic printhead cleaning, automatic printhead moisturizing, and platform air suction.
Imported color registration software system.
Fully automatic negative pressure ink supply system.
Ink circuit air filtration system.

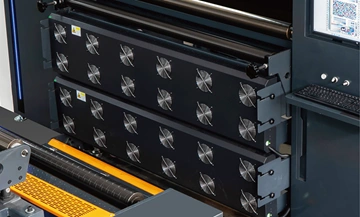

Dual Infrared Drying System

Platform heating + dual-channel infrared drying system.

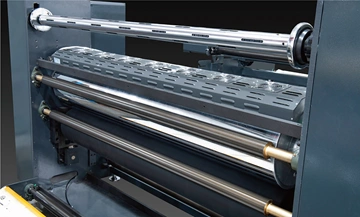

Film Laminating (Optional)

The laminating unit is fitted with dual-stock film loading frame.

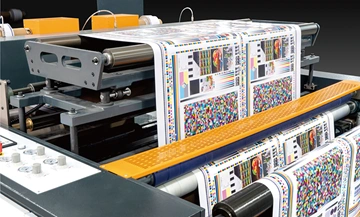

Automatic Edge Correction (Optional)

Integrated automatic tension control system ensures stable paper transportation.
Edge correction adopts electronic sensor-controlled brushless motors for precise detection.

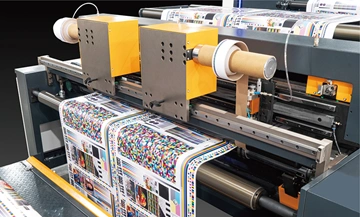

Automatic Slitting, Edge Trimming& Trim Rewinding (Optional)

Slitting knives are equipped with automatic positioning control system.
Movable air-expansion shaft take-up frame device is provided for waste edge collection on both trimming sides.

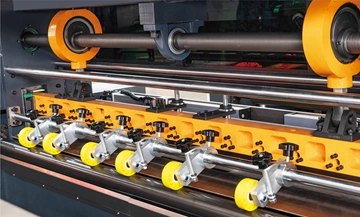

Automatic Cross Cutting (Optional)

The automatic cross-cutting system utilizes a photoelectric color mark tracking system to control the cross-cut knife mechanism for color matching and registration, achieving high-precision cutting.

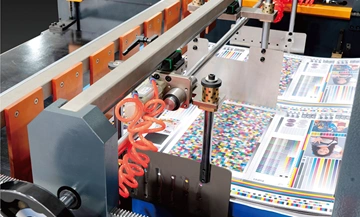

Automatic Paper Collecting (Optional)

Auto-lifting paper collecting and aligning platform.

Film Laminating

Automatic Edge Correction

Automatic Slitting, Edge Trimming& Trim Rewinding

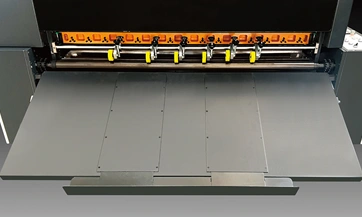

Manual Paper Collecting Platform

Automatic Cross Cutting

Automatic Paper Collecting

Automatic Die Cutting Machine with Stripping

BHT-1650FC/1650EFC

Automatic Flatbed Die Cutting & Waste Stripping Machine (Lead Edge / Bottom Feeder)

Dayuan BHT-1650FC/EFC is flagship large-format die cutting solution, delivering high efficiency and stability for high-end corrugated die cutting.

BHT-1650EC

Automatic Flatbed Die Cutting & Waste Stripping Machine (Top Feeder)

Dayuan BHT-1650EC adapts to die cutting of various corrugated boards and cardboards, ensures production efficiency through high-precision die cutting and stripping, and is an ideal choice for die cutting operations.

MHK-1650FC/1650EFC

Automatic Flatbed Die Cutter with Integrated Waste Stripping

Dayuan MHK-1650FC/EFC Series is an intelligent large-format die cutting solution, meeting the efficiency and reliability demands of high-end corrugated board cutting.

MHK-1650EC

Automatic Large‑Format Die Cutting with Waste Stripping

Dayuan MHK-1650EC coordinates high-precision die cutting and efficient stripping ensures superior product quality while boosting production efficiency, an ideal choice for large-format, multi-material die cutting scenarios.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Model	H-1716BH	H-1716BHF	H-1716CH	H-1716CHF
Name	Web-fed Digital Printing Machine
Configuration & Functions	1. Automatic web feeding 2. Digital printing 3. Edge correction 4. Automatic slitting 5. Automatic cross cutting 6. Manual paper collecting	1. Automatic web feeding 2. Digital printing 3. Film laminating 4. Edge correction 5. Automatic slitting 6. Automatic cross cutting 7. Manual paper collecting	1. Automatic web feeding 2. Digital printing 3. Edge correction 4. Automatic slitting 5. Automatic cross cutting 6. Automatic paper collecting	1. Automatic web feeding 2. Digital printing 3. Film laminating 4. Edge correction 5. Automatic slitting 6. Automatic cross cutting 7. Automatic paper collecting
Max. Roll Width	1700mm
Max. Roll Diameter	1500mm
Printhead Type	Epson I3200-A1 Print Head
Print Head	Print head: Auto cleaning, auto spit & moisturizing
Printing Speed	3601200dpi-2PASS 240m²/h；3601800dpi-3PASS 180m²/h 3602400dpi-4PASS 120m²/h；7201800dpi-6PASS 100m²/h
Inkjet Ink	Water-based Pigment Ink
Ink Supply System	Negative Pressure Auto Ink Feeding System
Drying System	Platform Heating + Dual Infrared Drying
RIP Software	Original U.S. Fiery System
Printing Media	Art Paper, White Cardboard, Kraft Paper, Coated Paper
Working Environment	Temperature: 15℃-30℃; Humidity: 35%-65%
Air Requirement	Air pressure: 0.6-0.7MPa, Flow rate: ≥0.37m³/min
