Name: Double‑Unit Automatic Hot Stamping & Die Cutting Machine With Stripping & Heating System
Brand: Dayuan
SKU: 00067
Rating: 4.9 (84 reviews)

Overview

BHT-2S1060TRC/2S1060TMC is a benchmark Double‑Unit Automatic Hot Stamping & Die Cutting Machine With Stripping & Heating System from Dayuan. Both impression units have servo motors for asynchronous operation, enabling hot stamping, deep embossing, die cutting and stripping in one paper pass. It has carbon fiber gripper bars and an automatic plate frame pusher for high precision.

The machine features a three frames and four sides stripping system and an energy-saving system. The stripping unit has a fine-tuning device: upper/lower frames run while the middle stays stationary, reducing continuous dots and preventing board scattering. The energy-saving system supports kinetic energy recovery, cutting energy use significantly and being eco-friendly. This die cutting machine reliably boosts product added value and market recognition.

Paper Feeding Unit

Fish-scale powerful feeder head with 4 suction and 6 delivery. The suction head can be adjust to various angles according to paper deformation.
Horizontal paper separation blower.
Full automatic non-stop alternating operation of main and auxiliary paper stacks without operator intervention. (Available as an option)
Electrical left/right fine-tuning device for the main feed pile.
The paper alignment adjustment device can adjust the distance before the paper reaches the gauge without stopping the machine.
Blow-suction dual-purpose vacuum pump of German Becker brand.

Paper Conveying Unit

Slowdown mechanism for sheet feeding at the front gauge.
Ultrasonic double sheet detection system with effortless calibration, precise operation, and protection against surface scratches.
Four front gauges can be adjusted individually.
Paper pressing device feeds warped sheets smoothly to the front gauge.
Push-pull dual-purpose side gauges on both sides.
Photoelectric detection on both side and front gauges.
If the paper is not in place, the system can force the gripper to open and close.

Hot Foil Stamping Unit

Independent R&D of AC801 hot stamping control system, with high operation accuracy and fast speed, which can realize high-speed intelligent skip operation with large-format electrochemical aluminum foil (Invention Patent).
Three vertical and two horizontal independent foil feeding system. (Optional, up to 6 vertical feeding)
Three-vertical large-format dual-axis foil rewinding device (Invention Patent).
Foil broken detection system.
The computerized foil control/monitor system.
14″ touchscreen display at the hot stamping station.
Holographic anti-counterfeiting foil rack device (Optional).
Honeycomb plate with quick-loading plate device.
20 temperature zone independent control system.

Die Cutting Unit

High-tech carbon fiber gripper bars and positioning structure, fine steel small gripper teeth and supporting gripper plates.
Servo controlled gripper bar positioning device: Each gripper bar can be adjusted by PLC touch screen button to ensure the accuracy of gripper bar, with permanent accuracy of ±0.075mm (Invention Patent).
Pressure regulating device, which can realize accurate control of pressure through PLC touch screen.
The 15mm die-cut steel backing plate and a 5mm combined lower backing plate with +/-0.9mm vertical and horizontal fine-tuning device.
Central positioning device.
Die-cutting chase automatic push-pull mechanism.
Die-cutting chase quick locking device.
20-temperature zones independent control system.
The main motor utilizes servo motor transmission.

Main Machine(refrigeration) cooling and lubrication mechanism

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.
Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.

Stripping Unit (Three frames & Four sides)

Pneumatic quick lock device.
Center line quick positioning mechanism.
The upper and lower frames operate while the middle frame remains stationary so there are fewer connection points, and the plate is not prone to coming apart.
High efficiency and smooth CAM movement curve drives large moving angle stripping and full stripping tools.
Stripping frame has micro-adjustment device with digital display.
Stripping gripper bar positioning device.
The gripper stripping device can automatically convey gripper waste edges out of the machine.

Delivery Unit

Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery.
Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper.
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.
The delivery section can be controlled through touch screen.
The two-way auxiliary air blowing.

Electrical Unit

Self-developed PLC control system(Invention Patent).
The die-cutting unit and the delivery unit adopt 10.4-inch and 7-inch Germany Siemens touch screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

BHT-2S1060TRC +

BHT-2S1060TMC +

Dayuan's Original BHT-2S1060TRC DUOPRESS Automatic High Speed Hot Stamping & Die Cutting Machine with Stripping & Heating System. Each impression unit has a servo motor for asynchronous operation, enabling hot stamping, deep embossing, die cutting and stripping in one paper pass. It meets high-end packaging needs and helps build highly recognizable brand packaging.

The machine can select and combine the functions of each unit according to the process requirements

Model	BHT-2S1060TRC
Function	1. Hot Stamping + Deep Embossing 2. Hot Stamping + Die Cutting + Stripping 3. Deep Embossing + Die Cutting + Stripping
Max. Die Cutting Force	600T + 600T
Press 1 System	3 Longitudinal+2 Transversal 4 Longitudinal+2 Transversal（opt.） 5 Longitudinal+2 Transversal（opt.） 6 Longitudinal+2 Transversal（opt.）
Press 2 System	Electric-heated System + Stripping

Dayuan's Original BHT-2S1060TMC DUOPRESS Automatic High Speed Hot Stamping & Die Cutting Machine with Stripping & Heating System. Each impression unit has a servo motor for asynchronous operation, enabling hot stamping/deep embossing, die cutting and stripping in one paper pass. It meets high-end packaging needs and helps build highly recognizable brand packaging.

The machine can select and combine the functions of each unit according to the process requirements

Model	BHT-2S1060TMC
Function	1. Hot Stamping + Die Cutting + Stripping 2. Deep Embossing + Die Cutting + Stripping
Max. Die Cutting Force	600T + 300T
Press 1 System	3 Longitudinal+2 Transversal 4 Longitudinal+2 Transversal（opt.） 5 Longitudinal+2 Transversal（opt.） 6 Longitudinal+2 Transversal（opt.）
Press 2 System	Die Cutting + Stripping

Automated Pallet Changing in Logistics

Die Preloader

Light Table

Raster

Mirror Machines Dual Diecutter Working Station

Automatic Hot Foil Stamping & Die Cutting Machine (Heavy Duty)

BHT-1060AT

Automatic Hot Foil Stamping Machine (Heavy Duty)

Dayuan BHT-1060AT delivers comprehensive enhancements in both speed and precision. Specifically engineered for high-end packaging production that prioritizes efficiency, it ensures consistent high output and exceptional returns through its outstanding performance.

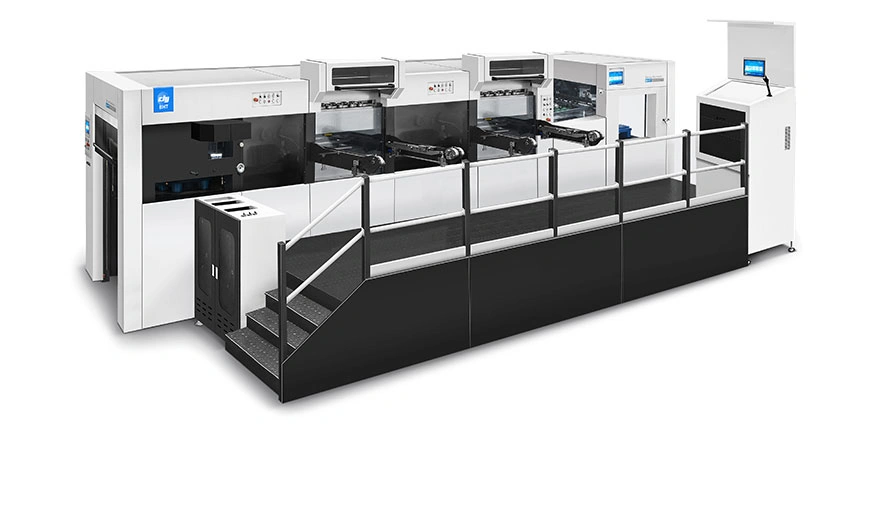

BHT-2S1060TT

DUOPRESS Automatic High Speed Hot Stamping & Die Cutting Machine

Dayuan BHT-2S1060TT pioneers independent servo operation for dual hot stamping stations, breaking through the efficiency limit of post-press production. Each embossing unit is equipped with a servo motor to achieve asynchronous operation, enabling the completion of hot stamping, deep embossing and die cutting in a single sheet feeding pass while ensuring product consistency.

BHT-2S1060TRSCE/2S1060TMSCE

Double‑Unit Automatic Hot Stamping & Die Cutting Machine With Stripping & Blanking

Dayuan BHT-2S1060TRSCE/2S1060TMSCE series uses an independent servo motor drive system for dual stations. It allows flexible process combination and asynchronous operation, achieving hot stamping, deep embossing, die cutting, stripping and blanking in one paper pass.

BHT-3S1060TTRC/3S1060TTMC

Triple‑Unit Automatic Duoble Hot Stamping & Die Cutting Machine with Stripping & Heating System

Dayuan BHT-3S1060TTRC/3S1060TTMC Series driven by three independent servos, features flexibly configurable and asynchronous stations, finishing hot stamping, deep embossing, die cutting and stripping in one pass—an ideal solution for high output and top quality.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com

Products

> Hot Foil stamping & Die Cutting Machine > Flatbed Die Cutting Machine > Sheet Cutter Machine > Stripping & Blanking Machine

Quick Links

Sustainable Development Production and Quality Development and Technology Blog

Model	BHT-2S1060TRC / BHT-2S1060TMC
Stock Range	Cardboard: 80-2000g/m², 0.1-2mm Corrugated board: ≤4mm
Max. Sheet Size	1060×760mm
Min. Sheet Size	400×350mm
Inner Chase Size	1080×790mm
Max. Cutting Size	1060×745mm
Max. Stamping Size	1060×740mm
Max. Embossing Size	1060×740mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.075mm
Common Stamping Accuracy	≤±0.1mm
Hologram positioning stamping accuracy	≤±0.1mm
Embossing Accuracy	≤±0.075mm
Max. Working Speed	7200s/h
Max. Feeder Pile Height	1800mm
Max. Pile Height at Feeder-Non-stop Mode	1520mm
Max. Delivery Pile Height	1580mm
Max. Gold Foil Diameter	φ250mm Longitudinal, φ200mm Transeversal
Electric-heated System	20 Heating zones, 40-180℃ Adjustable
Foil Width	20-1060mm
Air Requirement	0.6-0.7MPa, flow rate≥1m³/min
