Name: Large Format Automatic Corrugated Board Die Cutting & Waste Stripping Machine
Brand: Dayuan
SKU: 00048
Rating: 4.9 (74 reviews)

Overview

BHT-2100FC/EFC Large Format Automatic Corrugated Board Die Cutting & Waste Stripping Machine is Dayuan's flagship ultra-large-format die cutting solution for high-end corrugated die cutting, boasting high efficiency and stability. BHT-2100FC uses lead edge feeder with high board tolerance; BHT-2100EFC has bottom suction paper feeder for zero board damage. Equipped with variable-speed worm gear transmission mechanism and Siemens electrical control system, it enables intelligent, stable precise control. Its stripping unit adopts three frames four sides design: the upper and lower frames operate while the middle frame remains stationary so there are fewer connection points, and the plate is not prone to coming apart. It offers industry-leading efficiency and reliability, ideal for large-format corrugated packaging projects.

Lead Edge Feeder (FC Series)

High-speed and precise lead edge feeder with high feeding accuracy, strong suction power, anti-slip performance, and stable transportation for various types of corrugated board.
New technology polyester wheels with grid lifter and air cushion ensure smooth feeding and accurate alignment even when dealing with warped board.
Inverter-controlled fine vacuum suction adjustment device.
Electric side-pushing baffles (both the left and right sides).
Independent or synchronous adjustment of left/right baffles.
Slanted front baffle with fine-tuning (forward/backward + upward/downward) .

Down Feeder (EFC Series)

High precision bottom suction feeder with non-stop suction nozzle, uses vacuum adsorption mechanism to send corrugated board into the paper pressing rollers, effectively avoiding sheet scratches during feeding.
Electric side-pushing baffle and pneumatic sheet aligning device (right side).
Electrically controlled paper feed roller.
Paper presser and front gauge; double sheet detector respond accurately.
Front hook adjustment device; paper bending up and down can be adjusted.
Blow-suction dual-purpose vacuum pump of German Becker brand.

Sheet Transmission and Alignment Section

Non-stop feeding step adjustment.
The fine-tuning device for the front baffle's front and rear positions can be finely adjusted according to the gripper margin size.
Left/right positioning push gauges ensure precise side positioning of the cardboard.

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
The variable-speed worm gear transmission mechanism features a short die-cutting stroke and a large moving angle, which is conducive to the high-speed operation of small connection points in multiple impositions.
Gear transmission, with accurate precision.
The pressure regulating device enables precise pressure control via PLC touch screen buttons.
Central positioning device.
SIEMENS(INNOMOTICS) brand main motor.

Stripping Unit (Three-frame & Four-side)

Users can choose whether to use the stripping function by lifting upper stripping frame.
Positive-negative die plates to achieve versatile stripping.
The installation of the middle stripping board adopts the center line quick positioning installation method, and the stripping board can be quickly installed.
The upper and lower frames operate while the middle frame remains stationary so there are fewer connection points, and the plate is not prone to coming apart.
The gripper stripping device can automatically convey gripper waste edges out of the machine.

Delivery Unit (High pile stacking)

High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine (Special for high pile stacking delivery).
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.

Batch conveying delivery unit (optional)

The automatic batch delivery lifting table device can automatically set the number of stacked sheets, and cooperate with the conveyor belt to convey the paper outside the machine (Special for batch delivery, optional).
The automatic batch delivery lifting table uses conveyor belts for paper delivery. The paper surface is not easily scratched or abraded during the paper stacking process (Special for batch delivery, optional).
The external paper delivery rack and the batch delivery lifting table can also be moved aside to switch to the high pile stacking delivery unit.

Electrical Unit

Germany Siemens PLC control system.
The die-cutting unit and the delivery unit adopt 10.4-inch and 7-inch Germany Siemens touch screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

BHT-2100FC +

BHT-2100EFC +

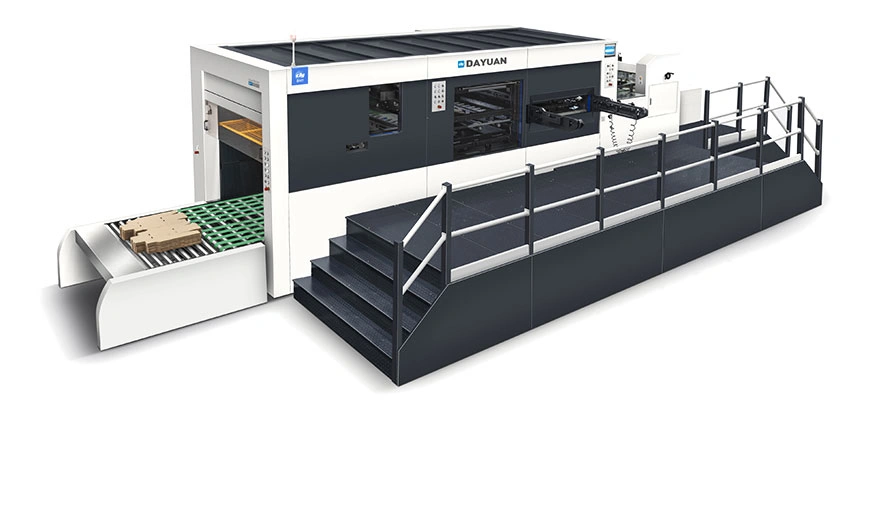

BHT-2100FC is Dayuan's top-tier Automatic Die Cutting Machine with Stripping (Lead Edge Feeder) for the ultra-large-format corrugated board market. It enables precise synchronous feeding at extreme width, ensures absolute flatness and stability in high-speed die cutting, has lower material quality demands and meets the market's high-speed operation needs.

Model	BHT-2100FC
Name	Automatic Die Cutting Machine with Stripping (Lead Edge Feeder)
Stock Range	Corrugated board: ≤9mm, F, E, B, C, A and AB corrugated paper
Max. Sheet Size	2100×1600mm
Min. Sheet Size	750×650mm
Max. Cutting Size	2080×1580mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.2mm
Max. Die Cutting Force	450T
Max. Working Speed	4000s/h
Max. Delivery Pile Height	1500mm
Air Requirement	0.6-0.7MPa, flow rate≥1m³/min

BHT-2100EFC is Dayuan's top-tier Automatic Die Cutting Machine with Stripping (Down Feeder) for the ultra-large-format corrugated board market. It solves surface protection problems of high-end oversized boards during processing, offering top clients production solutions with ultimate efficiency and perfect product finish.

Model	BHT-2100EFC
Name	Automatic Die Cutting Machine with Stripping(Down Feeder)
Stock Range	Corrugated board: ≤9mm, F, E, B, C, A and AB corrugated paper
Max. Sheet Size	2100×1600mm
Min. Sheet Size	750×650mm
Max. Cutting Size	2080×1580mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.2mm
Max. Die Cutting Force	450T
Max. Working Speed	4000s/h
Max. Delivery Pile Height	1500mm
Air Requirement	0.6-0.7MPa, flow rate≥1m³/min
