Name: Semi‑automatic 1900mm Extra‑Large Format Die Cutter
Brand: Dayuan
SKU: 00073
Rating: 4.9 (87 reviews)

Overview

MHC-1900B is a Semi‑automatic 1900mm Extra‑Large Format Die Cutter from Dayuan's classic series. Its core structure is made of nodular cast iron, paired with PLC automatic pressure control system and timing belt drive intermittent mechanism, forming a stable and reliable working foundation. Integrated with adjustable gripper bar mechanism and centralized oil supply system, it ensures smooth operation. Manual paper feeding enables flexible adaptation to various production scenarios. While precisely controlling costs, it helps enterprises significantly improve die cutting efficiency and finished product quality, providing practical and hassle-free equipment support for daily production.

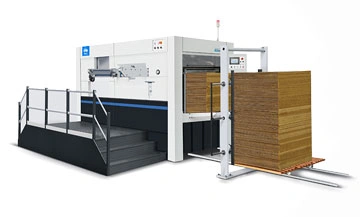

Paper Feeding Unit

Suitable for multiple uses of cardboard, corrugated paper, and greyboard paper.
Equipped with a monitor to observe the operation of the delivery section.
A 10.4-inch color screen shows the working status of the machine.
Pre-paper stacking mechanism for high work efficiency.

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
Adjustable gripper bar structure.
The pressure regulating device enables precise pressure control via PLC touch screen buttons.
Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.
Central positioning device.

Delivery Unit

High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine (Special for high pile stacking delivery).
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.
Spring chain adjustment device can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain.

Electrical Unit

Self-developed PLC control system(Invention Patent).
The die-cutting unit adopts 10.4-inch touch display screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

Dedicated Logistics Device for Piled Collecting

Die Preloader

Light Table

Raster

Mirror Machines Dual Diecutter Working Station

Automatic Die Cutting Machine with Stripping (Heavy duty,Heating System)

MHC-1900F/1900EF

Extra-Large 1900mm Automatic Die Cutter for Corrugated Board

Dayuan MHC-1900F/1900EF features a robust structure, ensuring stable and efficient operation for various corrugated boards. A quality choice for enterprises to enhance performance, reduce costs and boost efficiency.

Automatic Die Cutting Machine with Stripping

MHK-1900FC/1900EFC

Large Format Automatic Die Cutting Machine with Waste Stripping (Lead Edge Feeder/Down Feeder)

Dayuan MHK-1900FC/1900EFC Series maintains high-speed operation while ensuring full-format positioning consistency, achieving precise die cutting and effectively guaranteeing the consistency of finished products.

BHT-1900FC/1900EFC

Automatic Corrugated Die Cutting & Waste Stripping Machine

Dayuan BHT-1900FC/EFC is flagship ultra-large-format die cutting solution for high-end corrugated packaging challenges.

MHK-1650FC/1650EFC

Automatic Flatbed Die Cutter with Integrated Waste Stripping

Dayuan MHK-1650FC/EFC Series is an intelligent large-format die cutting solution, meeting the efficiency and reliability demands of high-end corrugated board cutting.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com

Products

> Hot Foil stamping & Die Cutting Machine > Flatbed Die Cutting Machine > Sheet Cutter Machine > Stripping & Blanking Machine

Quick Links

Sustainable Development Production and Quality Development and Technology Blog

Model	MHC-1900B
Stock Range	Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Max. Sheet Size	1900×1400mm
Min. Sheet Size	650×550mm
Inner Chase Size	1920×1430mm
Max. Cutting Size	1870×1380mm
Min. Gripper Margin	9-17mm
Die Cutting Accuracy	≤±0.2mm
Max. Die Cutting Force	450T
Max. Working Speed	4000s/h
Max. Feeder Pile Height	1620mm
Max. Delivery Pile Height	1500mm
Air Requirement	0.6-0.7MPa, flow rate≥0.75m³/min
