Name: Triple‑Station Automatic Double Hot Stamping & Die Cutting Machine with Stripping & Heating System
Brand: Dayuan
SKU: 00151
Rating: 4.9 (126 reviews)

Overview

Dayuan's MHK-3S920TTRC/3S920TTMC series is a Triple‑Station Automatic Double Hot Stamping & Die Cutting Machine with Stripping & Heating System for high-end packaging. Its three independent servo-driven stations support asynchronous operation and flexible process combinations, finishing all processes in one pass. The stripping unit has a micro-adjustable three frames and four sides stripping system for thorough, paper-friendly stripping. Backed by national patents, it features the servo controlled gripper bar positioning device and torque limiting overload protector for dual precision and stability, ideal for quality-focused and large-scale production customers.

Paper Feeding Unit

Fish-scale powerful feeder head with 4 suction and 6 delivery. The suction head can be adjust to various angles according to paper deformation.
Horizontal paper separation blower.
The main and auxiliary stacking tables alternate without stopping, ensuring non-stop feeder operation.
Electrical left/right fine-tuning device for the main feed pile.
The paper alignment adjustment device can adjust the distance before the paper reaches the gauge without stopping the machine.
Blow-suction dual-purpose vacuum pump of German Becker brand.

Paper Conveying Unit

Pneumatic lifting device for paper feeding frame.
Single-point clutch: The conveying part and the main machine part can be separated and synchronously combined at any time, which simplifies and facilitates the operation sequence.
PLC and electronic cam control the timing of the whole machine.
Push-pull dual-purpose side gauges on both sides.
Photoelectric detection on both side and front gauges.
Slowdown mechanism for sheet feeding at the front gauge.
Electromechanical double sheet detector.

Hot Foil Stamping Unit

Independent R&D of AC801 hot stamping control system, with high operation accuracy and fast speed, which can realize high-speed intelligent skip operation with large-format electrochemical aluminum foil (Invention Patent).
Three vertical and two horizontal independent foil feeding system. (Optional, up to 6 vertical feeding)
Three-vertical large-format dual-axis foil rewinding device (Invention Patent).
Foil broken detection system.
The computerized foil control/monitor system.
14″ touchscreen display at the hot stamping station.
Holographic anti-counterfeiting foil rack device (Optional).
Fine-tuning the honeycomb panel configuration for the hot stamping unit.
20 temperature zone independent control system.

Die Cutting Unit

A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates.
Servo controlled gripper bar positioning device: Each gripper bar can be adjusted by PLC touch screen button to ensure the accuracy of gripper bar, with permanent accuracy of ±0.075mm (Invention Patent).
The pressure regulating device enables precise pressure control via PLC touch screen buttons.
The 15mm die-cut steel backing plate and a 5mm combined lower backing plate with +/-0.9mm vertical and horizontal fine-tuning device.
Die-cutting frame with fine-tuning device.
Central positioning device.
The main motor utilizes servo motor transmission.

Main Machine(refrigeration) cooling and lubrication mechanism

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.
Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.

Stripping Unit (Three frames & Four sides)

Users can choose whether to use the stripping function by lifting upper stripping frame.
Intermediate negative stripping transmission mechanism.
The installation of the middle stripping board adopts the center line quick positioning installation method, enabling the operators to install the stripping board quickly and improving the plate changing efficiency.
The gripper stripping device can automatically convey gripper waste edges out of the machine.

Delivery Unit

Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery.
Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper.
Paper delivery alignment device.
Photoelectric detection of upper and lower limit switches can effectively prevent excessive paper pile stacking and paper curling up.
The delivery section can be controlled through touch screen.
The two-way auxiliary air blowing.

Electrical Unit

Self-developed PLC control system(Invention Patent).
The die-cutting unit and the delivery unit adopt 10.4-inch and 7-inch Germany Siemens touch screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

MHK-3S920TTRC +

MHK-3S920TTMC +

Dayuan's original MHK-3S920TTRC TRIOPRESS Automatic High Speed Double Hot Stamping & Die Cutting Machine with Stripping & Heating System for high-end packaging has three flexible, asynchronous servo-driven stations, finishing all processes in one pass to ensure production efficiency and finished product precision.

The machine can select and combine the functions of each unit according to the process requirements

Model	MHK-3S920TTRC
Function	1. Hot Stamping + Hot Stamping + Die Cutting + Stripping 2. Hot Stamping + Deep Embossing + Die Cutting + Stripping 3. Deep Embossing + Deep Embossing + Die Cutting + Stripping 4. Hot Stamping + Hot Stamping + Deep Embossing 5. Hot Stamping + Deep Embossing + Deep Embossing
Press 1 System	3 Longitudinal+2 Transversal 4 Longitudinal+2 Transversal（opt.） 5 Longitudinal+2 Transversal（opt.） 6 Longitudinal+2 Transversal（opt.）
Press 2 System	3 Longitudinal+2 Transversal 4 Longitudinal+2 Transversal（opt.） 5 Longitudinal+2 Transversal（opt.） 6 Longitudinal+2 Transversal（opt.）
Press 3 System	Electric-heated System + Stripping

Dayuan's original MHK-3S920TTMC TRIOPRESS Automatic High Speed Double Hot Stamping & Die Cutting Machine with Stripping & Heating System for high-end packaging features three flexible, asynchronous servo-driven stations, completing all processes in one pass to ensure production efficiency and finished product precision.

The machine can select and combine the functions of each unit according to the process requirements

Model	MHK-3S920TTMC
Function	1. Hot Stamping + Hot Stamping + Die Cutting + Stripping 2. Hot Stamping + Deep Embossing + Die Cutting + Stripping 3. Deep Embossing + Deep Embossing + Die Cutting + Stripping
Press 1 System	3 Longitudinal+2 Transversal 4 Longitudinal+2 Transversal（opt.） 5 Longitudinal+2 Transversal（opt.） 6 Longitudinal+2 Transversal（opt.）
Press 2 System	3 Longitudinal+2 Transversal 4 Longitudinal+2 Transversal（opt.） 5 Longitudinal+2 Transversal（opt.） 6 Longitudinal+2 Transversal（opt.）
Press 3 System	Die Cutting + Stripping

Automated Pallet Changing in Logistics

Die Preloader

Light Table

Raster

Mirror Machines Dual Diecutter Working Station

Automatic Hot Foil Stamping & Die Cutting Machine (Heavy Duty)

MHK-1050AT

Heavy‑Pressure Automatic Hot Foil Stamping and Die Cutting Machine

Dayuan MHK-1050AT achieves a remarkable boost in working speed, designed for high-end packaging customers pursuing high output, and ensures maximized production returns with consistent and stable output.

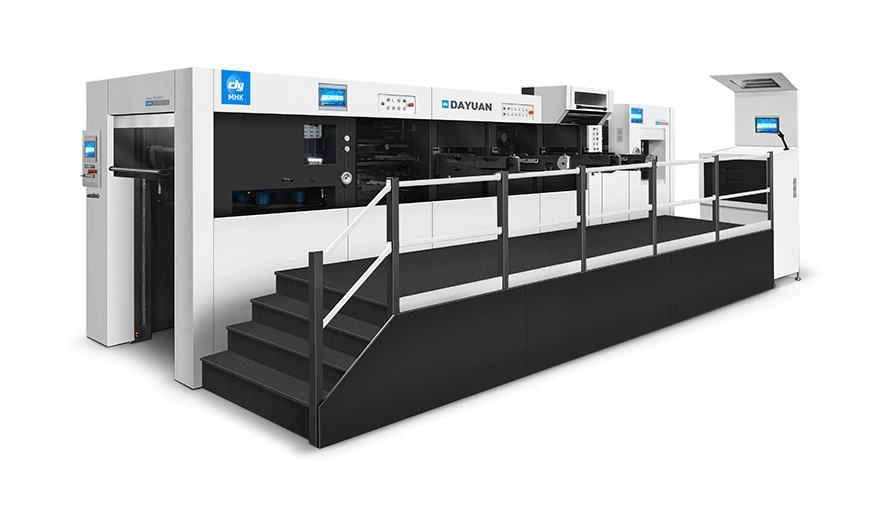

DUOPRESS Automatic High Speed Hot Stamping & Die Cutting Machine with Stripping & Heating System

MHK-2S920TRC/2S920TMC

Double‑Station Automatic Hot Stamping & Die Cutting Machine with Stripping & Heating System

Dayuan MHK-2S920TRC / 2S920TMC Series has two servo-driven imprint units for asynchronous operation, finishing multi-processes in one pass.

TRIOPRESS Automatic High Speed Hot Stamping & Die Cutting Machine with Stripping & Heating System

MHK-3S920TTT

Triple‑Station Automatic High Speed Triple Hot Foil Stamping and Die Cutting Machine

Dayuan MHK-3S920TTT has three independent servo-driven units. Asynchronous, flexibly configurable stations achieve multi-hot stamping, deep embossing and die cutting in single pass for high-speed mass production.

MHK-3S920TRRC/3S920TRMC

Triple‑Station Automatic Hot Stamping & Die Cutting Machine with Stripping & Heating System

Dayuan MHK-3S920TRRC/3S920TRMC Series is built for high-end packaging. Its three flexible, asynchronous servo-driven stations finish hot stamping, deep embossing, die cutting and stripping in one pass, a stable solution for high productivity and outstanding quality.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com

Products

> Hot Foil stamping & Die Cutting Machine > Flatbed Die Cutting Machine > Sheet Cutter Machine > Stripping & Blanking Machine

Quick Links

Sustainable Development Production and Quality Development and Technology Blog

Model	MHK-3S920TTRC / MHK-3S920TTMC
Stock Range	Cardboard: 80-2000g/m², 0.1-2mm Corrugated board: ≤4mm
Max. Sheet Size	920×650mm
Min. Sheet Size	360×320mm
Inner Chase Size	1008×670mm
Max. Cutting Size	920×630mm
Max. Stamping Size	900×600mm
Max. Embossing Size	900×600mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	10-18mm
Die Cutting Accuracy	≤±0.075mm
Common Stamping Accuracy	≤±0.1mm
Hologram positioning stamping accuracy	≤±0.1mm
Embossing Accuracy	≤±0.075mm
Max. Die Cutting Force	600T + 600T + 600T
Max. Working Speed	6200s/h
Max. Feeder Pile Height	1500mm
Max. Delivery Pile Height	1300mm
Max. Gold Foil Diameter	φ250mm Longitudinal, φ200mm Transeversal
Electric-heated System	20 Heating zones, 40-180℃ Adjustable
Foil Width	20-900mm
Air Requirement	0.6-0.7MPa, flow rate≥1m³/min

Triple‑Station Automatic Double Hot Stamping & Die Cutting Machine with Stripping & Heating System
