Name: Triple‑Unit Automatic Double Hot Stamping & Die Cutting Machine with Stripping & Blanking
Brand: Dayuan
SKU: 00063
Rating: 4.9 (82 reviews)

Overview

BHT-3S1060TTRSCE/3S1060TTMSCE Series is Dayuan's flagship Triple‑Unit Automatic Double Hot Stamping & Die Cutting Machine with Stripping & Blanking. Driven by three independent servo motors, its stations enable asynchronous operation and flexible process configuration, completing hot stamping, deep embossing, die cutting, automatic blanking and stacking in one pass for diversified orders. It has a micro-adjustable three frames four sides stripping unit: upper and lower frames run, middle one stationary, ensuring thorough, paper-safe stripping. Integrated with national invention patents, it features energy-saving devices to reduce consumption, optimizing premium packaging enterprises' overall operational efficiency.

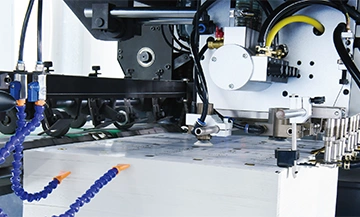

Paper Feeding Unit

Fish-scale powerful feeder head with 4 suction and 6 delivery. The suction head can be adjust to various angles according paper deformation.
Horizontal paper separation blower.
Full automatic non-stop alternating operation of main and auxiliary paper stacks without operator intervention. (Available as an option)
Electrical left/right fine-tuning device for the main feed pile.
The paper alignment adjustment device can adjust the distance before the paper reaches the gauge without stopping the machine.
Blow-suction dual-purpose vacuum pump of German Becker brand.

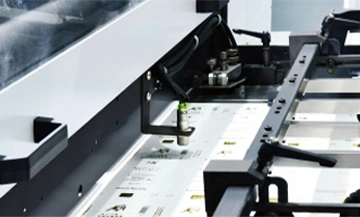

Paper Conveying Unit

Slowdown mechanism for sheet feeding at the front gauge.
Ultrasonic double sheet detection system with effortless calibration, precise operation, and protection against surface scratches.
Four front gauges can be adjusted individually.
Paper pressing device feeds warped sheets smoothly to the front gauge.
Push-pull dual-purpose side gauges on both sides.
Photoelectric detection on both side and front gauges.
If the paper is not in place, the system can force the gripper to open and close.

Hot Foil Stamping Unit

Independent R&D of AC801 hot stamping control system, with high operation accuracy and fast speed, which can realize high-speed intelligent skip operation with large-format electrochemical aluminum foil (Invention Patent).
Three vertical and two horizontal independent foil feeding system. (Optional, up to 6 vertical feeding)
Three-vertical large-format dual-axis foil rewinding device (Invention Patent).
Foil broken detection system.
The computerized foil control/monitor system.
14″ touchscreen display at the hot stamping station.
Holographic anti-counterfeiting foil rack device (Optional).

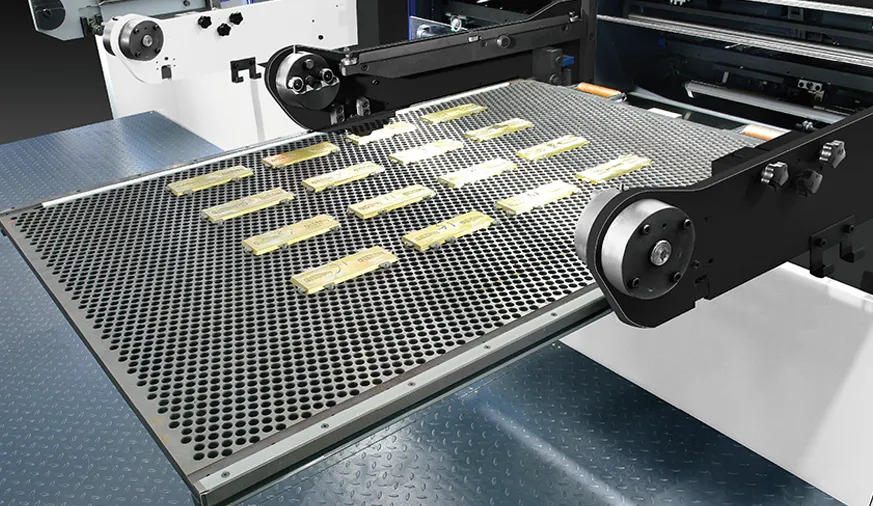

Honeycomb plate with quick-loading plate device.
20 temperature zone independent control system.

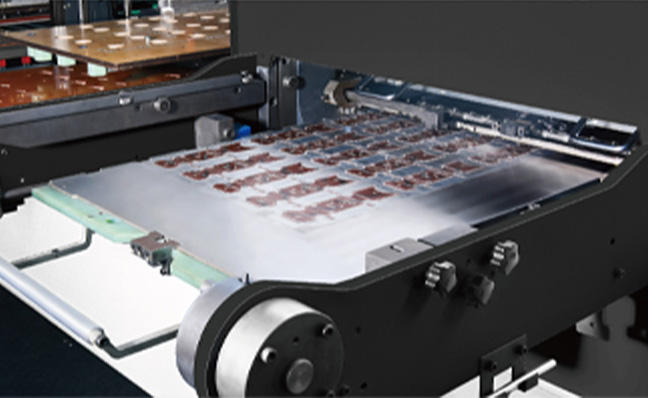

Die Cutting Unit

High-tech carbon fiber gripper bars and positioning structure, fine steel small gripper teeth and supporting gripper plates.
Servo controlled gripper bar positioning device: Each gripper bar can be adjusted by PLC touch screen button to ensure the accuracy of gripper bar, with permanent accuracy of ±0.075mm (Invention Patent).
Pressure regulating device, which can realize accurate control of pressure through PLC touch screen.
The 15mm die-cut steel backing plate and a 5mm combined lower backing plate with +/-0.9mm vertical and horizontal fine-tuning device.
Central positioning device.
Die-cutting chase automatic push-pull mechanism.
Die-cutting chase quick locking device.
20-temperature zones independent control system.
The main motor utilizes servo motor transmission.

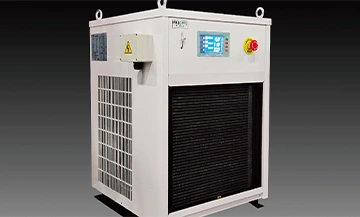

Main Machine(refrigeration) cooling and lubrication mechanism

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.
Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.

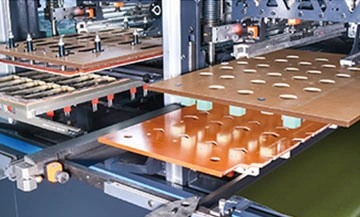

Stripping Unit

Advanced Plate Quick Locking Device
Pneumatic quick lock device.
Center line quick positioning mechanism.
The upper and lower frames operate while the middle frame remains stationary so there are fewer connection points, and the plate is not prone to coming apart.
High efficiency and smooth CAM movement curve drives large moving angle stripping and blanking tools.
Micro-adjustment device with digital display.
Gripper bar positioning device.

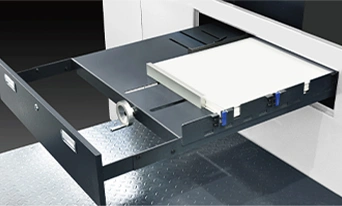

Blanking Unit

Full Sheet Delivery
Automatic paper inserting and counting device.
Automatic non-stop paper collecting device.
Automatic delivery device can meet the European standard 1200*800mm pallet .
The constant leveling system (NTC): There may be warping and unevenness at the top of the finished product stack, which can be solved by adjusting the height of finished products to increase or decrease the pressure.
Waste edge conveying device.
Servo-driven damping brush.

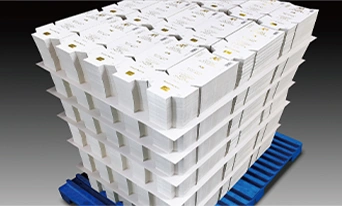

Blanking Unit

Automatic separator page inserting device.

Blanking Unit

Non-stop sampling device.

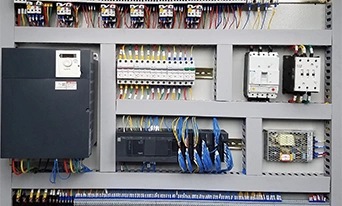

Electrical Unit

Self-developed PLC control system(Invention Patent).
The die-cutting unit and the delivery unit adopt 10.4-inch and 7-inch Germany Siemens touch screens.
The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts.
The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.

BHT-3S1060TTRSCE +

BHT-3S1060TTMSCE +

BHT-3S1060TTRSCE is Dayuan's pioneering TRIOPRESS Automatic High Speed Double Hot Stamping & Die Cutting Machine with Stripping & Blanking. Its triple stations support asynchronous operation, finishing hot stamping, deep embossing, die cutting, stripping and blanking in one pass, elevating precision and efficiency while maximizing users' investment returns.

The machine can select and combine the functions of each unit according to the process requirements

Model	BHT-3S1060TTRSCE
Function	1. Hot Stamping + Hot Stamping + Deep Embossing 2. Hot Stamping + Hot Stamping + Die Cutting + Stripping + Blanking 3. Hot Stamping + Deep Embossing + Die Cutting + Stripping + Blanking 4. Deep Embossing + Deep Embossing + Die Cutting + Stripping + Blanking
Max. Die Cutting Force	600T + 600T + 600T
Press 1 System	3 Longitudinal+2 Transversal 4 Longitudinal+2 Transversal（opt.） 5 Longitudinal+2 Transversal（opt.） 6 Longitudinal+2 Transversal（opt.）
Press 2 System	3 Longitudinal+2 Transversal 4 Longitudinal+2 Transversal（opt.） 5 Longitudinal+2 Transversal（opt.） 6 Longitudinal+2 Transversal（opt.）
Press 3 System	Electric-heated System + Stripping + Blanking

BHT-3S1060TTMSCE is Dayuan's pioneering TRIOPRESS Automatic High Speed Double Hot Stamping & Die Cutting Machine with Stripping & Blanking. Its triple stations support asynchronous operation, finishing hot stamping, deep embossing, die cutting, stripping and blanking in one pass, elevating precision and efficiency while maximizing users' investment returns.

The machine can select and combine the functions of each unit according to the process requirements

Model	BHT-3S1060TTMSCE
Function	1. Hot Stamping + Hot Stamping + Die Cutting + Stripping + Blanking 2. Hot Stamping + Deep Embossing + Die Cutting + Stripping + Blanking 3. Deep Embossing + Deep Embossing + Die Cutting + Stripping + Blanking
Max. Die Cutting Force	600T + 600T + 300T
Press 1 System	3 Longitudinal+2 Transversal 4 Longitudinal+2 Transversal（opt.） 5 Longitudinal+2 Transversal（opt.） 6 Longitudinal+2 Transversal（opt.）
Press 2 System	3 Longitudinal+2 Transversal 4 Longitudinal+2 Transversal（opt.） 5 Longitudinal+2 Transversal（opt.） 6 Longitudinal+2 Transversal（opt.）
Press 3 System	Die Cutting + Stripping + Blanking

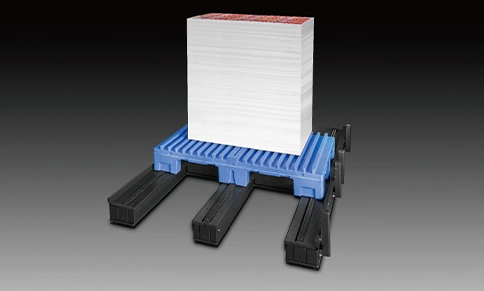

Automated Pallet Changing in Logistics

Die Preloader

Light Table

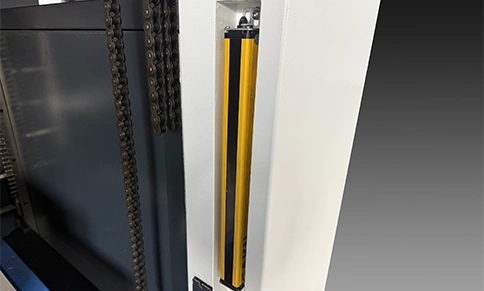

Raster

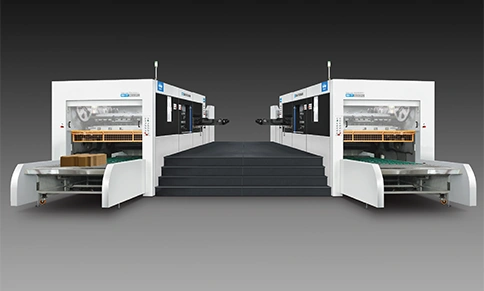

Mirror Machines Dual Diecutter Working Station

Automatic Hot Foil Stamping & Die Cutting Machine (Heavy Duty)

BHT-1060AT

Automatic Hot Foil Stamping Machine (Heavy Duty)

Dayuan BHT-1060AT delivers comprehensive enhancements in both speed and precision. Specifically engineered for high-end packaging production that prioritizes efficiency, it ensures consistent high output and exceptional returns through its outstanding performance.

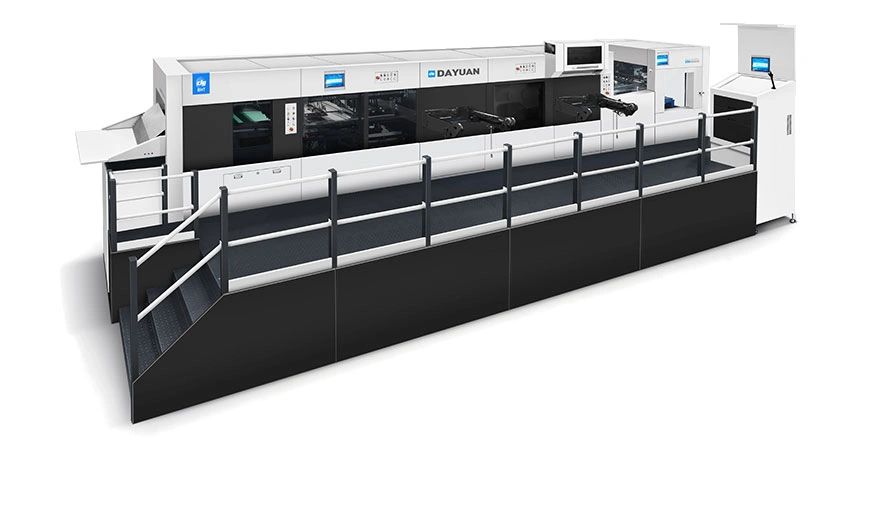

DUOPRESS Automatic High Speed Hot Stamping & Die Cutting Machine With Stripping & Blanking

BHT-2S1060TRSCE/2S1060TMSCE

Double‑Unit Automatic Hot Stamping & Die Cutting Machine With Stripping & Blanking

Dayuan BHT-2S1060TRSCE/2S1060TMSCE series uses an independent servo motor drive system for dual stations. It allows flexible process combination and asynchronous operation, achieving hot stamping, deep embossing, die cutting, stripping and blanking in one paper pass.

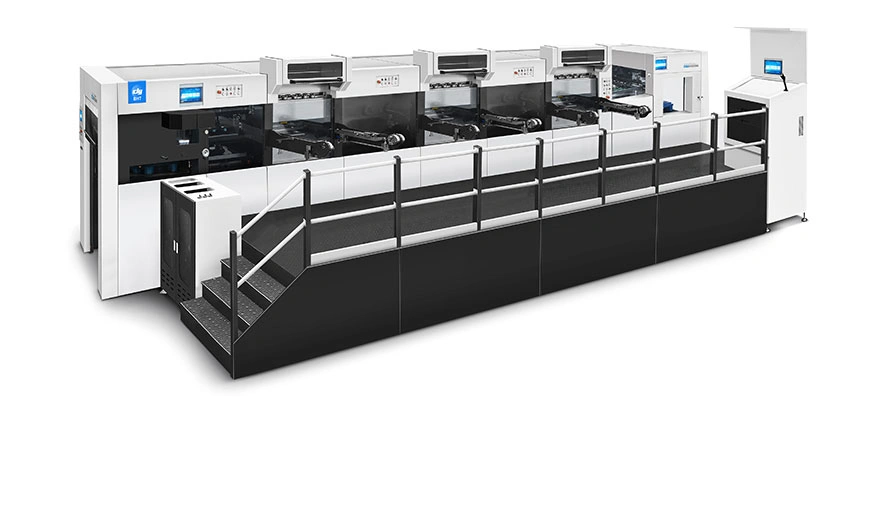

BHT-3S1060TTT

TRIOPRESS Automatic High Speed Triple Hot Stamping & Die Cutting Machine

Dayuan BHT-3S1060TTT powered by three independent servos, allows triple-station flexible process configuration and asynchronous operation. One paper pass finishes multiple hot stamping, deep embossing and die cutting, achieving efficiency improvement while meeting high-end quality standards.

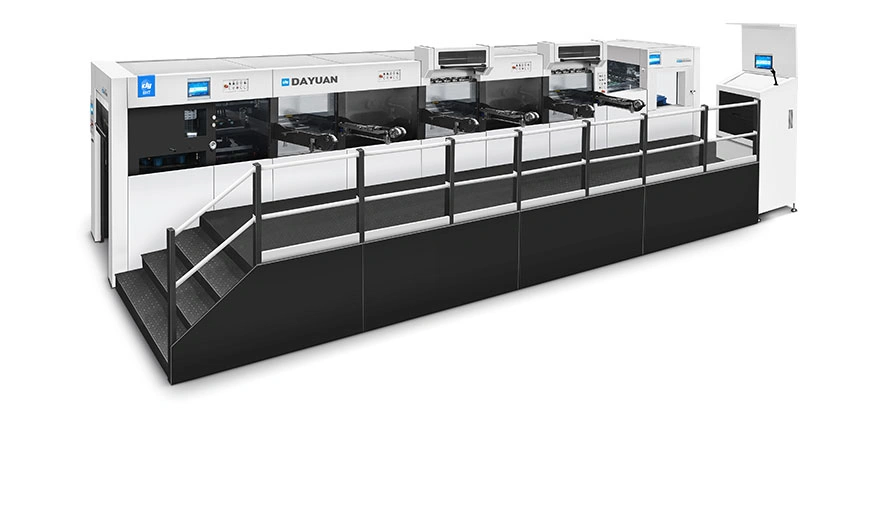

BHT-3S1060TTRC/3S1060TTMC

Triple‑Unit Automatic Duoble Hot Stamping & Die Cutting Machine with Stripping & Heating System

Dayuan BHT-3S1060TTRC/3S1060TTMC Series driven by three independent servos, features flexibly configurable and asynchronous stations, finishing hot stamping, deep embossing, die cutting and stripping in one pass—an ideal solution for high output and top quality.

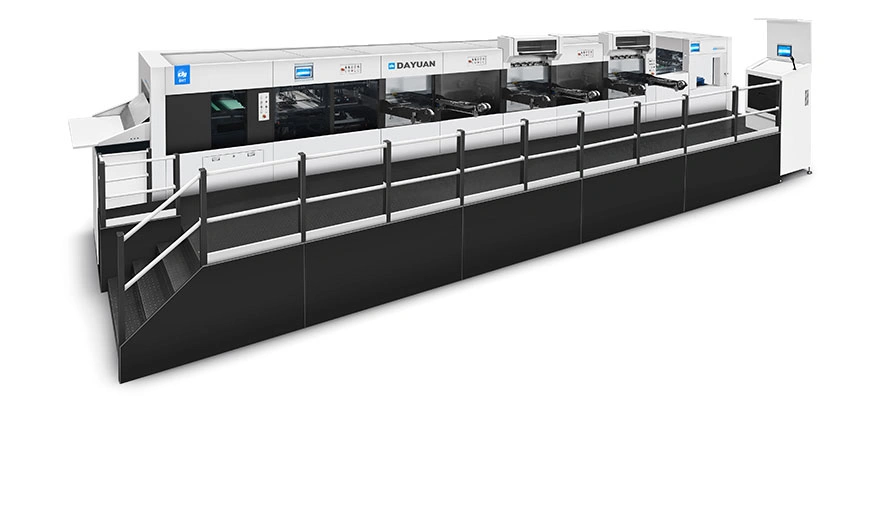

TRIOPRESS Automatic High Speed Hot Stamping & Die Cutting Machine with Stripping & Blanking

BHT-3S1060TRMSCE

Triple‑Unit Automatic Hot Stamping & Die Cutting Machine with Stripping and Blanking

Dayuan BHT-3S1060TRMSCE features triple stations support asynchronous operation, finishing hot stamping, deep embossing, die cutting, stripping and blanking in one pass, elevating product precision and efficiency while maximizing users' investment returns.

Customization Range

Solutions Based on Your Needs

We listen to the market and turn challenges into customized solutions, from integrated lines to complex components, building what fits your workflow.

Interlinked Production Lines
Full Format Size Support
Mirror Machine Dual Station Design
Start Your Personalization

Contact Details

Add: No.105 Haize Road, Binhai New Area, Pingyang county,Wenzhou City, Zhejiang Province, China.

Whatsapp:+86-18705776888

E-mail:dayuan@dayuanmachinery.com

Products

> Hot Foil stamping & Die Cutting Machine > Flatbed Die Cutting Machine > Sheet Cutter Machine > Stripping & Blanking Machine

Quick Links

Sustainable Development Production and Quality Development and Technology Blog

Model	BHT-3S1060TTMSCE / BHT-3S1060TTRSCE
Stock Range	Cardboard: 80-2000g/m², 0.1-2mm Corrugated board: ≤4mm
Max. Sheet Size	1060×760mm
Min. Sheet Size	400×350mm
Inner Chase Size	1080×790mm
Max. Cutting Size	1060×745mm
Max. Stamping Size	1060×740mm
Max. Embossing Size	1060×740mm
Min. Gripper Margin	9-17mm
Min. Width of Cuts	5mm
Die Cutting Accuracy	≤±0.075mm
Common Stamping Accuracy	≤±0.1mm
Hologram positioning stamping accuracy	≤±0.1mm
Embossing Accuracy	≤±0.075mm
Max. Working Speed	6200s/h
Max. Feeder Pile Height	1800mm
Max. Pile Height at Feeder-Non-stop Mode	1520mm
Max. Delivery Pile Height	1580mm
Max. Gold Foil Diameter	φ250mm Longitudinal, φ200mm Transeversal
Electric-heated System	20 Heating zones, 40-180℃ Adjustable
Foil Width	20-1060mm
Air Requirement	0.6-0.7MPa, flow rate≥1m³/min
